In the realm of home automation and security, the Pir Motion Sensor stands out as a versatile and essential component. These sensors detect motion by measuring changes in infrared radiation, making them ideal for a wide range of applications, from security systems to energy-efficient lighting. This blog post will delve into the intricacies of Pir Motion Sensors, exploring their types, working principles, applications, and installation tips.
Understanding Pir Motion Sensors

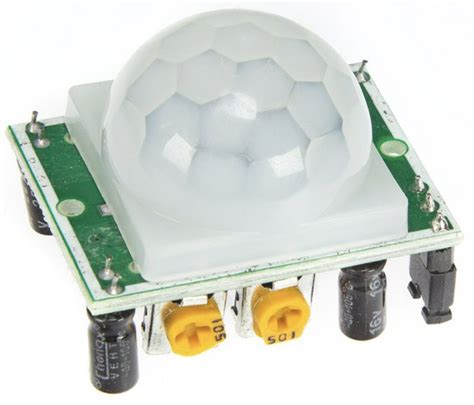

A Pir Motion Sensor is a passive infrared sensor that detects changes in the infrared radiation emitted by objects in its field of view. These sensors are commonly used in security systems, automated lighting, and energy management. The term "passive" indicates that the sensor does not emit any energy but rather detects the infrared radiation naturally emitted by all objects with a temperature above absolute zero.
How Pir Motion Sensors Work
The working principle of a Pir Motion Sensor is based on the detection of infrared radiation. Here’s a step-by-step breakdown of how it operates:
- The sensor contains a pyroelectric material that generates a small electrical charge when exposed to infrared radiation.
- When a warm object, such as a person or animal, moves within the sensor's field of view, it causes a change in the infrared radiation detected by the sensor.
- This change in infrared radiation generates an electrical signal, which is then processed by the sensor's circuitry.
- If the signal meets certain criteria (e.g., duration, amplitude), the sensor triggers an output, such as activating a light or sounding an alarm.
Pir Motion Sensors are highly sensitive and can detect motion even in low-light conditions, making them reliable for various applications.
Types of Pir Motion Sensors
Pir Motion Sensors come in different types, each suited for specific applications. The most common types include:
- Standard Pir Motion Sensors: These are basic sensors used in home security systems and automated lighting. They have a limited range and are typically used indoors.
- Pet-Immune Pir Motion Sensors: Designed to ignore the motion of small pets, these sensors are ideal for homes with pets. They have a higher sensitivity threshold to avoid false alarms.
- Outdoor Pir Motion Sensors: These sensors are weather-resistant and designed for outdoor use. They often have a wider detection range and are used in security systems for patios, gardens, and driveways.
- Dual-Technology Pir Motion Sensors: These sensors combine Pir Motion detection with microwave or ultrasonic technology to reduce false alarms. They are highly accurate and commonly used in commercial security systems.
Applications of Pir Motion Sensors
Pir Motion Sensors have a wide range of applications across various industries. Some of the most common uses include:
- Home Security Systems: Pir Motion Sensors are integral to home security systems, detecting intruders and triggering alarms.
- Automated Lighting: These sensors can turn lights on and off based on motion, saving energy and enhancing convenience.
- Energy Management: In commercial buildings, Pir Motion Sensors can control HVAC systems, ensuring that heating and cooling are only active when areas are occupied.
- Retail and Commercial Spaces: Sensors can monitor foot traffic, helping businesses optimize staffing and improve customer service.
- Industrial Automation: In manufacturing, Pir Motion Sensors can detect the presence of workers or machinery, enhancing safety and efficiency.
Pir Motion Sensors are versatile and can be integrated into various systems to enhance security, convenience, and energy efficiency.
Installing Pir Motion Sensors
Installing a Pir Motion Sensor involves several steps. Here’s a detailed guide to help you through the process:
Choosing the Right Location
Select a location that provides a clear view of the area you want to monitor. Avoid placing the sensor near heat sources or in direct sunlight, as these can cause false triggers.
Mounting the Sensor
Mount the sensor at an appropriate height, typically between 7 to 8 feet from the ground. Ensure it is securely fastened to the wall or ceiling.
Wiring and Power Supply
Connect the sensor to a power source. Most Pir Motion Sensors can be wired directly to a power supply or connected to a battery. Follow the manufacturer’s instructions for wiring.
Configuring the Sensor
Adjust the sensor’s settings, such as sensitivity and detection range, according to your needs. Most sensors come with adjustable lenses that allow you to focus the detection area.
Testing the Sensor
Test the sensor by moving within its detection range. Ensure it triggers the desired output, such as turning on a light or sounding an alarm.
🔧 Note: Always follow the manufacturer’s instructions for installation and configuration to ensure optimal performance and safety.
Maintaining Pir Motion Sensors
Regular maintenance is essential to keep Pir Motion Sensors functioning correctly. Here are some tips for maintaining your sensors:
- Clean the sensor lens regularly to remove dust and debris, which can interfere with detection.
- Check the sensor’s wiring and connections periodically to ensure they are secure and free of corrosion.
- Test the sensor regularly to ensure it is functioning correctly and adjust settings as needed.
- Replace batteries or check the power supply to ensure the sensor has a reliable power source.
By following these maintenance tips, you can extend the lifespan of your Pir Motion Sensors and ensure they continue to perform reliably.
Common Issues and Troubleshooting
Even with proper installation and maintenance, Pir Motion Sensors can sometimes encounter issues. Here are some common problems and their solutions:
| Issue | Solution |
|---|---|
| False Alarms | Adjust the sensor’s sensitivity or detection range. Ensure the sensor is not placed near heat sources or in direct sunlight. |
| No Detection | Check the sensor’s wiring and power supply. Ensure the sensor is properly mounted and aligned. |
| Intermittent Operation | Inspect the sensor’s connections and wiring for any signs of damage or corrosion. Replace batteries if necessary. |
If these solutions do not resolve the issue, consult the manufacturer’s troubleshooting guide or seek professional assistance.
Pir Motion Sensors are a crucial component in modern security and automation systems. Their ability to detect motion accurately and reliably makes them indispensable for a wide range of applications. By understanding how these sensors work, choosing the right type, and following proper installation and maintenance practices, you can enhance the security and efficiency of your home or business.
In summary, Pir Motion Sensors offer a versatile and effective solution for motion detection. Whether you are looking to enhance your home security, automate lighting, or manage energy consumption, these sensors provide a reliable and cost-effective option. By integrating Pir Motion Sensors into your systems, you can enjoy greater peace of mind and convenience, knowing that your environment is well-protected and efficiently managed.
