Pipe And Elbow

Plumbing is an essential aspect of modern infrastructure, ensuring the smooth flow of water and other fluids through various systems. Among the critical components in plumbing are pipe and elbow fittings, which play a crucial role in directing and controlling the flow of liquids. Understanding the types, uses, and installation techniques of pipe and elbow fittings is vital for anyone involved in plumbing, whether a professional plumber or a DIY enthusiast.

Understanding Pipe and Elbow Fittings

Pipe and elbow fittings are essential for creating efficient and functional plumbing systems. Pipes are the primary conduits through which fluids flow, while elbows are used to change the direction of the flow. Together, they form the backbone of any plumbing network, ensuring that water reaches its destination efficiently and without leaks.

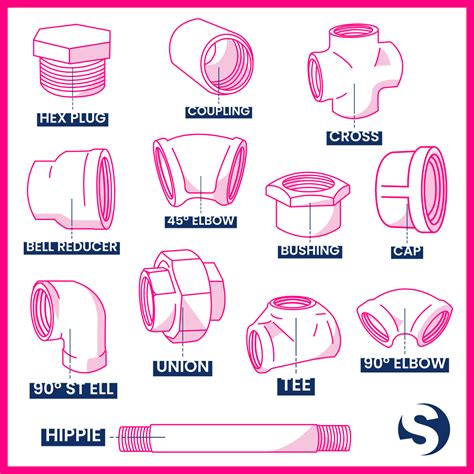

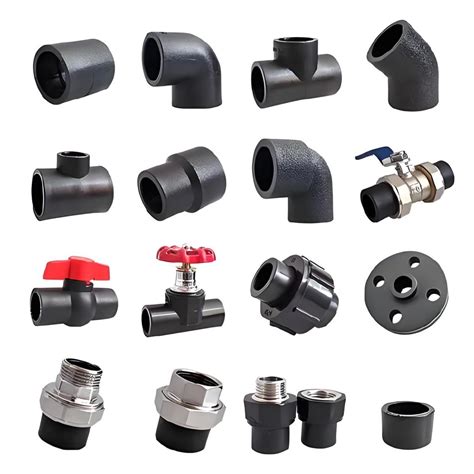

Types of Pipe Fittings

Pipe fittings come in various types, each serving a specific purpose. Some of the most common types include:

• Couplings: Used to connect two pipes of the same size.
• Tees: Allow for a branch connection, enabling fluid to flow in three directions.
• Reducers: Connect pipes of different sizes, reducing the diameter of the flow.
• Caps: Seal the end of a pipe, preventing fluid from escaping.
• Adapters: Convert one type of pipe to another, such as from male to female threads.

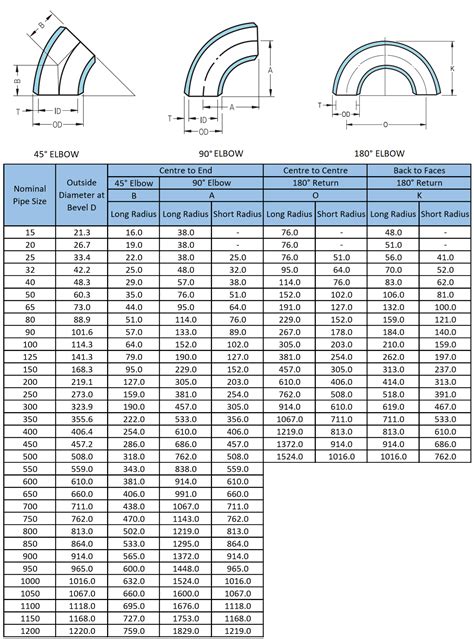

Types of Elbow Fittings

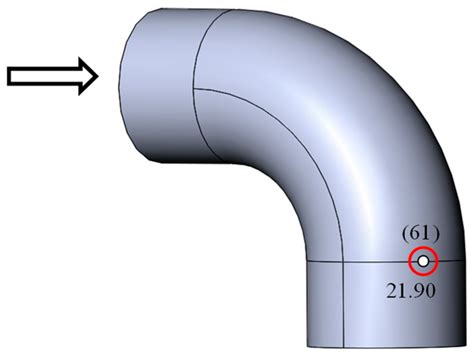

Elbow fittings are used to change the direction of the flow in a plumbing system. They come in various angles and types, including:

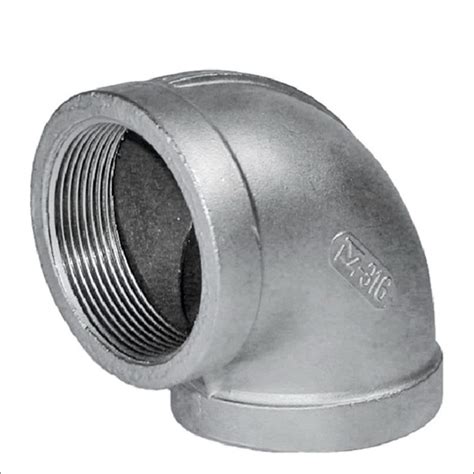

• 90-Degree Elbows: Change the direction of the flow by 90 degrees.
• 45-Degree Elbows: Change the direction of the flow by 45 degrees.
• Street Elbows: Have a female thread on one end and a male thread on the other, allowing for easy connection.
• Reducing Elbows: Change the direction of the flow and reduce the pipe size simultaneously.

Materials Used in Pipe and Elbow Fittings

Pipe and elbow fittings are made from various materials, each with its own advantages and disadvantages. The most common materials include:

• Copper: Durable, corrosion-resistant, and suitable for both hot and cold water.
• PVC (Polyvinyl Chloride): Lightweight, cost-effective, and resistant to corrosion, but not suitable for hot water.
• CPVC (Chlorinated Polyvinyl Chloride): Similar to PVC but can handle higher temperatures, making it suitable for hot water.
• PEX (Cross-Linked Polyethylene): Flexible, easy to install, and resistant to freezing, but can be damaged by UV light.
• Stainless Steel: Highly durable, corrosion-resistant, and suitable for both hot and cold water, but more expensive.

Installation Techniques for Pipe and Elbow Fittings

Proper installation of pipe and elbow fittings is crucial for the longevity and efficiency of a plumbing system. Here are some general steps for installing these fittings:

Preparation

Before beginning the installation, gather all necessary tools and materials. This may include:

• Pipe cutter or hacksaw
• Pipe wrench
• Teflon tape or pipe dope
• Measuring tape
• Marking tool

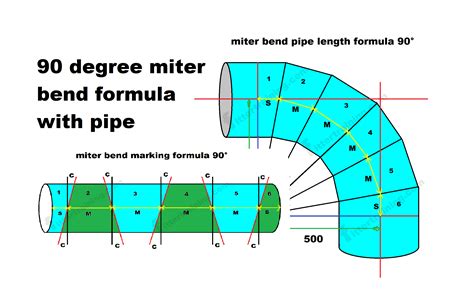

Measuring and Cutting

Measure the length of pipe needed and mark the cutting point. Use a pipe cutter or hacksaw to cut the pipe to the desired length. Ensure the cut is straight and clean to facilitate a proper fit.

Deburring

After cutting the pipe, remove any burrs or rough edges using a deburring tool or a file. This step is crucial to prevent leaks and ensure a smooth flow of fluid.

Applying Teflon Tape or Pipe Dope

Wrap Teflon tape or apply pipe dope to the threads of the fitting. This creates a seal that prevents leaks. Wrap the tape in the direction of the threads, ensuring it covers the entire threaded area.

Connecting the Fittings

Align the pipe with the fitting and hand-tighten it. Use a pipe wrench to tighten the fitting further, but be careful not to overtighten, as this can damage the threads or cause the fitting to leak.

🔧 Note: Always use a pipe wrench to tighten fittings, as it provides better grip and control.

Common Mistakes to Avoid

When installing pipe and elbow fittings, there are several common mistakes to avoid:

• Overtightening: Overtightening fittings can damage the threads and cause leaks.
• Incorrect Measurements: Incorrect measurements can lead to improper fitting and leaks.
• Inadequate Sealing: Failing to apply Teflon tape or pipe dope properly can result in leaks.
• Using the Wrong Tools: Using the wrong tools can damage the fittings and pipes.

Maintenance and Troubleshooting

Maintaining pipe and elbow fittings is essential for the longevity of a plumbing system. Regular inspections can help identify potential issues before they become major problems. Here are some common maintenance tasks and troubleshooting tips:

Maintenance Tasks

• Inspect fittings for signs of wear or corrosion.
• Check for leaks and tighten fittings as needed.
• Clean fittings to remove any buildup or debris.
• Replace damaged or worn-out fittings promptly.

Troubleshooting Tips

• If a fitting is leaking, tighten it with a pipe wrench. If the leak persists, replace the fitting.
• If a pipe is clogged, use a snake or auger to clear the blockage.
• If a fitting is corroded, replace it with a new one made from a suitable material.

🛠️ Note: Regular maintenance can prevent costly repairs and extend the life of your plumbing system.

Applications of Pipe and Elbow Fittings

Pipe and elbow fittings are used in a wide range of applications, including:

• Residential Plumbing: Used in homes for water supply, drainage, and gas lines.
• Commercial Plumbing: Used in buildings for water supply, drainage, and HVAC systems.
• Industrial Plumbing: Used in factories and plants for fluid transfer, cooling systems, and process piping.
• Agricultural Plumbing: Used in irrigation systems, water supply for livestock, and drainage.

Safety Considerations

When working with pipe and elbow fittings, safety should always be a top priority. Here are some safety considerations to keep in mind:

• Wear appropriate personal protective equipment (PPE), including gloves and safety glasses.
• Work in a well-ventilated area to avoid inhaling harmful fumes.
• Use tools and equipment properly to prevent injuries.
• Follow manufacturer's instructions for handling and installing fittings.

⚠️ Note: Always prioritize safety when working with plumbing fittings to prevent accidents and injuries.

Environmental Impact

The environmental impact of pipe and elbow fittings is an important consideration. Choosing eco-friendly materials and proper disposal methods can help minimize environmental harm. Here are some tips for reducing the environmental impact:

• Choose fittings made from recycled or recyclable materials.
• Use fittings that are durable and long-lasting to reduce the need for frequent replacements.
• Properly dispose of old fittings and pipes according to local regulations.
• Consider using water-saving fittings to reduce water consumption.

🌿 Note: Opting for eco-friendly fittings and proper disposal methods can help protect the environment.

Cost Considerations

The cost of pipe and elbow fittings can vary widely depending on the material, size, and type. Here is a breakdown of cost considerations:

When choosing fittings, consider the long-term costs, including maintenance and potential replacements. Investing in high-quality fittings can save money in the long run by reducing the need for frequent repairs and replacements.

💰 Note: Consider the long-term costs and benefits when choosing pipe and elbow fittings.

In conclusion, pipe and elbow fittings are essential components of any plumbing system. Understanding the types, materials, installation techniques, and maintenance requirements of these fittings is crucial for ensuring the efficiency and longevity of your plumbing network. By choosing the right fittings and following proper installation and maintenance practices, you can create a reliable and durable plumbing system that meets your needs for years to come.
