Understanding the intricacies of molecular dynamics and protein folding often involves delving into the nuances of Phi and Psi angles. These angles are crucial for describing the conformation of a polypeptide chain, which is essential for comprehending the three-dimensional structure of proteins. By examining the Phi and Psi angles, researchers can gain insights into how proteins fold, interact, and function within biological systems.
What are Phi and Psi Angles?

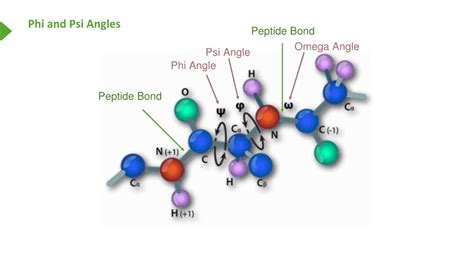

The Phi (φ) and Psi (ψ) angles are dihedral angles that define the rotation around the bonds in the polypeptide backbone. Specifically, the Phi angle is the angle of rotation around the N-Cα bond, while the Psi angle is the angle of rotation around the Cα-C bond. These angles are pivotal in determining the secondary structure of proteins, such as alpha helices, beta sheets, and turns.
Importance of Phi and Psi Angles in Protein Structure
The Phi and Psi angles play a critical role in the stability and function of proteins. The specific values of these angles dictate the local conformation of the polypeptide chain, which in turn influences the overall three-dimensional structure of the protein. For instance, in an alpha helix, the Phi and Psi angles typically fall within specific ranges that allow for the characteristic helical structure. Similarly, in beta sheets, these angles adopt different values that facilitate the extended, planar conformation.
Understanding the Phi and Psi angles is also crucial for predicting protein folding pathways. By analyzing the energy landscape associated with different Phi and Psi angles, researchers can identify stable conformations and potential folding intermediates. This knowledge is invaluable for designing proteins with desired properties and for developing therapeutic interventions that target specific protein conformations.
Methods for Determining Phi and Psi Angles
Several experimental and computational methods are employed to determine the Phi and Psi angles in proteins. These methods include:
- X-ray Crystallography: This technique provides high-resolution structures of proteins, allowing for the precise measurement of Phi and Psi angles. By solving the crystal structure, researchers can determine the atomic coordinates and calculate the dihedral angles.
- Nuclear Magnetic Resonance (NMR) Spectroscopy: NMR is a powerful tool for studying protein dynamics and structure in solution. It can provide information on the Phi and Psi angles by measuring the chemical shifts and coupling constants of specific nuclei.
- Molecular Dynamics Simulations: Computational methods, such as molecular dynamics simulations, can model the behavior of proteins at the atomic level. These simulations can predict the Phi and Psi angles over time, providing insights into protein folding and dynamics.
Each of these methods has its strengths and limitations, and often a combination of techniques is used to obtain a comprehensive understanding of the Phi and Psi angles in a protein.

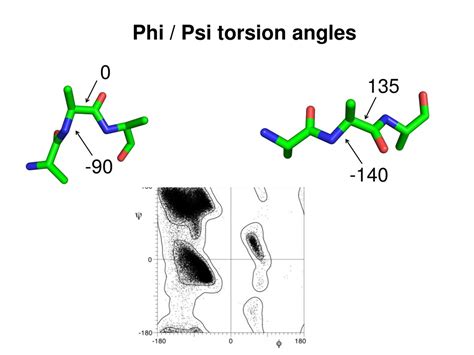

Ramachandran Plot: Visualizing Phi and Psi Angles
The Ramachandran plot is a graphical representation used to visualize the allowed and disallowed regions for the Phi and Psi angles in proteins. This plot is essential for validating protein structures and identifying potential errors in structural models. The Ramachandran plot is constructed by plotting the Phi angle on the x-axis and the Psi angle on the y-axis.
In a typical Ramachandran plot, the allowed regions correspond to the conformations that are energetically favorable and commonly observed in protein structures. These regions include:
- Alpha Helix Region: Characterized by Phi angles around -60° and Psi angles around -45°.
- Beta Sheet Region: Characterized by Phi angles around -135° and Psi angles around 135°.
- Left-Handed Alpha Helix Region: Characterized by Phi angles around 60° and Psi angles around 45°.
- Polyproline II Helix Region: Characterized by Phi angles around -75° and Psi angles around 145°.
Disallowed regions in the Ramachandran plot correspond to conformations that are sterically hindered or energetically unfavorable. These regions are typically avoided in stable protein structures.
Here is an example of a Ramachandran plot:
| Phi Angle (°) | Psi Angle (°) | Region |
|---|---|---|
| -60 | -45 | Alpha Helix |
| -135 | 135 | Beta Sheet |
| 60 | 45 | Left-Handed Alpha Helix |
| -75 | 145 | Polyproline II Helix |
📝 Note: The Ramachandran plot is a valuable tool for structural biologists, but it should be used in conjunction with other validation methods to ensure the accuracy of protein structures.
Applications of Phi and Psi Angles in Protein Engineering
The understanding of Phi and Psi angles has numerous applications in protein engineering. By manipulating these angles, researchers can design proteins with enhanced stability, altered function, or novel properties. Some key applications include:
- Protein Design: By predicting and controlling the Phi and Psi angles, researchers can design proteins with specific secondary structures and functions. This approach is used to create enzymes with improved catalytic activity, antibodies with enhanced binding affinity, and proteins with novel therapeutic properties.
- Drug Discovery: Understanding the Phi and Psi angles in target proteins can aid in the development of drugs that specifically bind to and modulate protein function. This knowledge is crucial for designing small molecules that can interact with proteins in a way that alters their conformation and activity.
- Protein Folding Studies: Investigating the Phi and Psi angles during protein folding provides insights into the mechanisms underlying this process. This information can be used to develop strategies for preventing protein misfolding and aggregation, which are associated with various diseases, including Alzheimer's and Parkinson's.
In summary, the Phi and Psi angles are fundamental to the study of protein structure and function. By understanding and manipulating these angles, researchers can gain valuable insights into protein folding, design novel proteins, and develop effective therapeutic interventions.
In conclusion, the Phi and Psi angles are essential for describing the conformation of polypeptide chains and understanding the three-dimensional structure of proteins. These angles play a crucial role in protein stability, function, and folding, making them a key focus in structural biology and protein engineering. By employing various experimental and computational methods, researchers can determine the Phi and Psi angles and use this information to design proteins with desired properties and develop targeted therapeutic interventions. The Ramachandran plot serves as a valuable tool for visualizing and validating protein structures, highlighting the allowed and disallowed regions for these angles. The applications of Phi and Psi angles in protein engineering are vast, ranging from protein design and drug discovery to protein folding studies. As our understanding of these angles continues to grow, so too will our ability to harness their potential in biomedical research and therapeutic development.
