Phase Shift Key

In the realm of digital communications, the transmission of data over various mediums is a cornerstone of modern technology. One of the fundamental techniques used in this process is Phase Shift Keying (PSK). PSK is a digital modulation scheme that conveys data by changing, or modulating, the phase of a reference signal (the carrier wave). This method is widely used in wireless communications, satellite communications, and various other applications due to its robustness and efficiency.

Table of Contents

Understanding Phase Shift Keying

Phase Shift Keying is a modulation technique where the phase of the carrier signal is varied according to the digital data being transmitted. The phase of the carrier signal is shifted in discrete increments, and each increment represents a different symbol. The most common forms of PSK are Binary Phase Shift Keying (BPSK) and Quadrature Phase Shift Keying (QPSK).

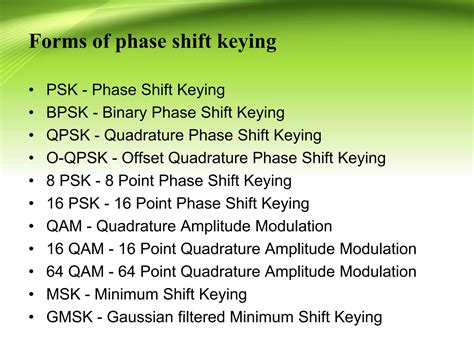

Types of Phase Shift Keying

There are several types of PSK, each with its own characteristics and applications. The most commonly used types are:

Binary Phase Shift Keying (BPSK): This is the simplest form of PSK, where the phase of the carrier signal is shifted by 180 degrees. BPSK is used in applications where simplicity and robustness are crucial.
Quadrature Phase Shift Keying (QPSK): In QPSK, the phase of the carrier signal is shifted by 90 degrees. This allows for the transmission of two bits per symbol, doubling the data rate compared to BPSK.
8-PSK: This modulation scheme uses eight different phase shifts, allowing for the transmission of three bits per symbol. It is more complex but offers higher data rates.
16-PSK: This scheme uses sixteen different phase shifts, transmitting four bits per symbol. It is even more complex and offers even higher data rates but is more susceptible to noise.

How Phase Shift Keying Works

To understand how PSK works, let's break down the process into a few key steps:

Data Encoding: The digital data to be transmitted is first encoded into symbols. Each symbol corresponds to a specific phase shift.
Modulation: The encoded symbols are then used to modulate the phase of the carrier signal. The phase of the carrier is shifted according to the symbol being transmitted.
Transmission: The modulated signal is transmitted over the communication channel.
Demodulation: At the receiver, the modulated signal is demodulated to extract the original data. This involves detecting the phase shifts and converting them back into the original symbols.

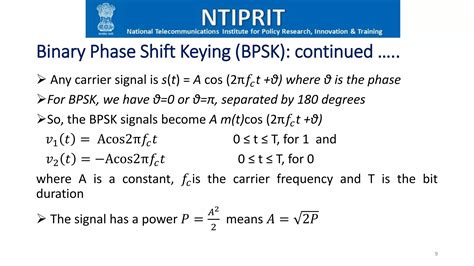

For example, in BPSK, a binary '0' might be represented by a phase shift of 0 degrees, while a binary '1' might be represented by a phase shift of 180 degrees. In QPSK, four different phase shifts (0, 90, 180, and 270 degrees) are used to represent two bits at a time.

Advantages of Phase Shift Keying

Phase Shift Keying offers several advantages that make it a popular choice for digital communications:

Robustness to Noise: PSK is relatively robust to noise and interference, making it suitable for applications where the signal-to-noise ratio (SNR) is low.
Efficiency: PSK is highly efficient in terms of bandwidth usage. It can transmit a large amount of data over a relatively narrow bandwidth.
Simplicity: The basic forms of PSK, such as BPSK, are relatively simple to implement, making them cost-effective for many applications.
Compatibility: PSK is compatible with a wide range of communication systems and can be used in both wired and wireless applications.

Applications of Phase Shift Keying

Phase Shift Keying is used in a variety of applications, including:

Wireless Communications: PSK is widely used in wireless communication systems, such as Wi-Fi, Bluetooth, and cellular networks.
Satellite Communications: PSK is a preferred modulation scheme for satellite communications due to its robustness and efficiency.
Digital Television: PSK is used in digital television broadcasting to transmit high-quality video and audio signals.
Military Communications: PSK is used in military communications for secure and reliable data transmission.

Challenges and Limitations

While PSK offers many advantages, it also has some challenges and limitations:

Sensitivity to Phase Noise: PSK is sensitive to phase noise, which can degrade the performance of the system. Phase noise is a random fluctuation in the phase of the carrier signal.
Complexity: Higher-order PSK schemes, such as 8-PSK and 16-PSK, are more complex to implement and require more sophisticated hardware.
Error Rate: The bit error rate (BER) of PSK can be high in low SNR conditions, especially for higher-order PSK schemes.

To mitigate these challenges, various techniques such as error correction coding, phase-locked loops, and adaptive modulation can be employed.

Phase Shift Keying vs. Other Modulation Schemes

Phase Shift Keying is just one of many modulation schemes used in digital communications. Other common schemes include:

Amplitude Shift Keying (ASK): In ASK, the amplitude of the carrier signal is varied according to the digital data being transmitted.
Frequency Shift Keying (FSK): In FSK, the frequency of the carrier signal is varied according to the digital data being transmitted.
Quadrature Amplitude Modulation (QAM): QAM combines both amplitude and phase modulation to transmit data.

Each of these schemes has its own advantages and disadvantages. For example, ASK is simple to implement but is more susceptible to noise and interference. FSK is robust to noise but requires more bandwidth. QAM offers high data rates but is more complex and sensitive to noise.

In comparison, PSK offers a good balance of robustness, efficiency, and simplicity, making it a popular choice for many applications.

💡 Note: The choice of modulation scheme depends on the specific requirements of the application, including the available bandwidth, the required data rate, and the expected noise and interference levels.

Future Trends in Phase Shift Keying

As technology continues to evolve, so does the field of digital communications. Future trends in PSK include:

Higher-Order PSK: The development of higher-order PSK schemes, such as 32-PSK and 64-PSK, to achieve even higher data rates.
Adaptive Modulation: The use of adaptive modulation techniques to dynamically adjust the modulation scheme based on the channel conditions.
MIMO Systems: The integration of PSK with Multiple-Input Multiple-Output (MIMO) systems to improve the capacity and reliability of wireless communications.

These trends are driven by the increasing demand for higher data rates, better reliability, and more efficient use of spectrum.

In addition to these trends, research is also focused on improving the robustness of PSK to phase noise and other impairments. Techniques such as phase-locked loops, digital signal processing, and advanced error correction coding are being explored to enhance the performance of PSK systems.

Another area of interest is the integration of PSK with other modulation schemes to create hybrid modulation techniques. These hybrid schemes can combine the advantages of different modulation techniques to achieve better performance in specific applications.

For example, a hybrid scheme might combine PSK with QAM to achieve high data rates while maintaining robustness to noise and interference. Such hybrid schemes are particularly useful in applications where the channel conditions are highly variable, such as in mobile communications.

Overall, the future of PSK looks promising, with ongoing research and development aimed at improving its performance and expanding its applications.

To better understand the performance of different PSK schemes, let's compare some key parameters:

Modulation Scheme	Bits per Symbol	Bandwidth Efficiency	Robustness to Noise
BPSK	1	Low	High
QPSK	2	Medium	Medium
8-PSK	3	High	Low
16-PSK	4	Very High	Very Low

This table provides a quick comparison of the key parameters for different PSK schemes. As the number of bits per symbol increases, the bandwidth efficiency improves, but the robustness to noise decreases.

In summary, PSK is a versatile and efficient modulation scheme that plays a crucial role in modern digital communications. Its robustness, efficiency, and simplicity make it a popular choice for a wide range of applications. As technology continues to evolve, PSK will likely remain an important part of the digital communication landscape, with ongoing research and development aimed at improving its performance and expanding its applications.

In conclusion, Phase Shift Keying is a fundamental technique in digital communications that offers a balance of robustness, efficiency, and simplicity. Its various forms, from BPSK to higher-order PSK schemes, cater to different application requirements. As the demand for higher data rates and better reliability grows, PSK continues to evolve, integrating with advanced technologies and hybrid modulation schemes to meet the challenges of modern communications. The future of PSK is bright, with ongoing research and development paving the way for even more innovative and efficient communication systems.
