Peek 3D Printer Filament

Embarking on a 3D printing journey can be an exciting adventure, filled with endless possibilities for creativity and innovation. One of the most crucial aspects of this journey is selecting the right Peek 3D Printer Filament. Peek, or Polyether Ether Ketone, is a high-performance thermoplastic known for its exceptional mechanical and chemical properties. This material is particularly favored in industries requiring durability, heat resistance, and chemical stability. Whether you are a hobbyist or a professional, understanding the nuances of Peek 3D printer filament can significantly enhance your printing experience.

Table of Contents

Understanding Peek 3D Printer Filament

Peek 3D printer filament is a specialized material that offers a range of benefits over traditional filaments like PLA or ABS. Its high melting point, excellent chemical resistance, and superior mechanical strength make it ideal for applications in aerospace, automotive, and medical industries. Peek filament is also known for its biocompatibility, making it suitable for medical implants and surgical instruments.

Key Features of Peek 3D Printer Filament

When considering Peek 3D Printer Filament, it's essential to understand its key features:

High Melting Point: Peek has a melting point of around 343°C (649°F), making it suitable for high-temperature applications.
Chemical Resistance: It is resistant to a wide range of chemicals, including acids, bases, and organic solvents.
Mechanical Strength: Peek offers excellent tensile strength and stiffness, making it ideal for structural components.
Biocompatibility: Its biocompatibility makes it a preferred choice for medical applications.
Low Moisture Absorption: Peek has low moisture absorption, which helps maintain dimensional stability.

Applications of Peek 3D Printer Filament

Given its superior properties, Peek 3D Printer Filament finds applications in various industries. Some of the most common uses include:

Aerospace: Components that require high strength and heat resistance, such as engine parts and structural elements.
Automotive: Parts that need to withstand high temperatures and chemical exposure, like engine components and fuel system parts.
Medical: Implants, surgical instruments, and other medical devices that require biocompatibility and durability.
Electronics: Components that need to withstand high temperatures and chemical exposure, such as connectors and insulators.

Printing with Peek 3D Printer Filament

Printing with Peek 3D Printer Filament requires specific considerations to ensure optimal results. Here are some key points to keep in mind:

Printer Requirements: Ensure your 3D printer can handle high-temperature filaments. Most standard printers may not be suitable for Peek due to its high melting point.
Printing Temperature: The printing temperature for Peek typically ranges from 360°C to 400°C. It's crucial to have a printer with a heated bed that can reach at least 150°C.
Print Speed: Print speed should be slower than with other filaments to ensure proper layer adhesion and to prevent warping.
Cooling: Minimize cooling to avoid warping and ensure proper layer bonding.
Bed Adhesion: Use a suitable adhesive like glue stick or Kapton tape to improve bed adhesion.

Here is a table summarizing the key printing parameters for Peek 3D Printer Filament:

Parameter	Value
Printing Temperature	360°C - 400°C
Heated Bed Temperature	150°C - 180°C
Print Speed	20 - 40 mm/s
Cooling	Minimal
Bed Adhesion	Glue stick or Kapton tape

🔍 Note: Always refer to the manufacturer's guidelines for specific printing parameters, as they may vary based on the brand and type of Peek filament.

Post-Processing Peek 3D Prints

Post-processing Peek 3D Printer Filament prints is essential to achieve the desired finish and mechanical properties. Here are some common post-processing techniques:

Annealing: Annealing involves heating the printed part to a specific temperature and then slowly cooling it. This process can improve the mechanical properties and reduce internal stresses.
Machining: Peek can be machined using standard tools, allowing for precise finishing of printed parts.
Polishing: Polishing can be done to achieve a smooth surface finish. This is particularly useful for medical and aesthetic applications.
Painting: Peek can be painted, but it requires proper surface preparation to ensure adhesion.

Post-processing steps can significantly enhance the quality and performance of your Peek 3D prints. However, it's important to handle Peek with care, as it can be brittle and prone to cracking if not processed correctly.

🛠️ Note: Always wear appropriate protective gear, including gloves and safety glasses, when handling and post-processing Peek 3D prints.

Challenges and Solutions

While Peek 3D Printer Filament offers numerous benefits, it also presents several challenges. Understanding these challenges and their solutions can help you achieve better results:

High Printing Temperature: Ensure your printer can handle the high temperatures required for Peek. Upgrading to a high-temperature printer may be necessary.
Warping: Use a heated bed and minimize cooling to prevent warping. Applying a suitable adhesive can also help improve bed adhesion.
Brittleness: Peek can be brittle, so handle printed parts with care. Post-processing techniques like annealing can help improve mechanical properties.
Cost: Peek is more expensive than other filaments. Consider the cost-benefit ratio for your specific application.

By addressing these challenges, you can effectively utilize Peek 3D Printer Filament to create high-quality, durable prints.

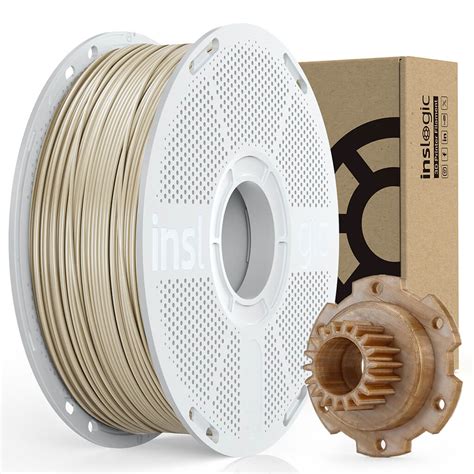

Here is an image of a Peek 3D printed part:

Comparing Peek with Other High-Performance Filaments

When choosing a high-performance filament, it's essential to compare Peek 3D Printer Filament with other options like PEEK, PPSU, and ULTEM. Each of these materials has its unique properties and applications:

PPSU (Polyphenylsulfone): PPSU offers excellent chemical resistance and high-temperature performance but is less stiff than Peek.
ULTEM (Polyetherimide): ULTEM provides good mechanical strength and heat resistance but is less chemically resistant than Peek.

Here is a comparison table for these high-performance filaments:

Property	Peek	PPSU	ULTEM
Melting Point	343°C	280°C	338°C
Chemical Resistance	Excellent	Good	Fair
Mechanical Strength	High	Medium	High
Biocompatibility	Yes	No	No

Choosing the right filament depends on your specific application requirements. Peek is ideal for applications needing high strength, chemical resistance, and biocompatibility.

In wrapping up, Peek 3D Printer Filament is a versatile and high-performance material that offers numerous benefits for various industries. Its exceptional mechanical and chemical properties make it a preferred choice for demanding applications. By understanding the key features, applications, and printing considerations of Peek, you can effectively utilize this material to create durable and high-quality 3D prints. Whether you are a hobbyist or a professional, Peek 3D printer filament can open up new possibilities for your 3D printing projects.
