Parts Of A Windmill

Windmills, with their iconic rotating blades, have been a part of human history for centuries. These structures, often seen in rural landscapes, serve various purposes, from grinding grain to generating electricity. Understanding the parts of a windmill is essential for appreciating their functionality and historical significance. This post delves into the intricate components that make up a windmill, exploring both traditional and modern designs.

Table of Contents

Historical Overview of Windmills

Windmills have a rich history that dates back to ancient times. The earliest known windmills were used in Persia around the 7th century AD. These early windmills were vertical-axis windmills, which were later improved upon by the Dutch in the 12th century. The Dutch windmills, known as smock mills, became iconic and were used extensively for grinding grain and draining land.

Over time, windmills evolved to include various designs and purposes. The parts of a windmill also evolved, with each component playing a crucial role in harnessing wind energy efficiently. Today, windmills are not just historical artifacts but also modern power generators, contributing significantly to renewable energy sources.

Traditional Windmill Components

Traditional windmills, often seen in historical settings, have several key components. These components work together to convert wind energy into mechanical energy, which can then be used for various tasks.

Here are the main parts of a traditional windmill:

Sails or Blades: These are the most recognizable parts of a windmill. They capture the wind and convert its energy into rotational motion. Traditional windmills often have four sails made of cloth or wood.
Windshaft: This is the main horizontal shaft that connects the sails to the rest of the windmill. It rotates as the sails catch the wind.
Upright Shaft: This vertical shaft transmits the rotational motion from the windshaft to the millstones or other machinery.
Millstones: These are large, circular stones used for grinding grain. They are powered by the rotational motion of the upright shaft.
Tail Pole: This is a long pole that extends from the back of the windmill. It is used to turn the windmill into the wind, ensuring that the sails are always facing the wind.
Tail: This is the structure at the end of the tail pole that helps in turning the windmill. It often has a small sail or vane to catch the wind.
Cap: The cap is the rotating part of the windmill that houses the windshaft and sails. It can be turned to face the wind.
Body: The main structure of the windmill that supports the cap and houses the machinery.
Foundation: The base of the windmill, which provides stability and support. It is often made of stone or brick.

Modern Windmill Components

Modern windmills, also known as wind turbines, are designed to generate electricity. They have evolved significantly from their traditional counterparts, with advanced technology and materials. The parts of a modern windmill are designed for efficiency and durability.

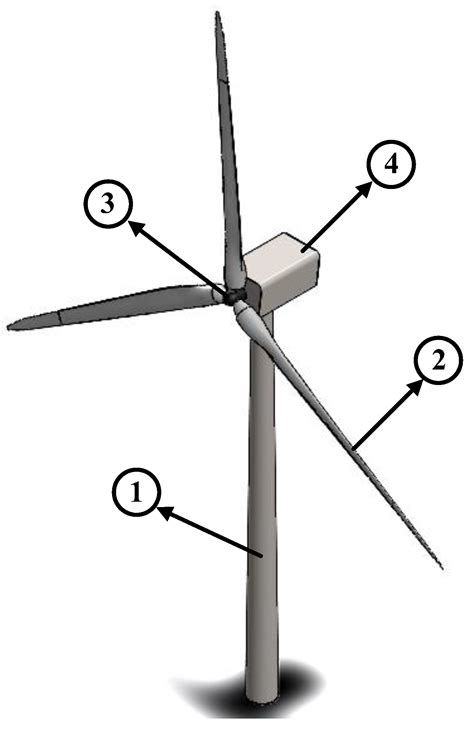

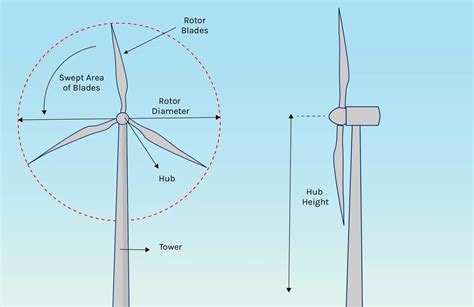

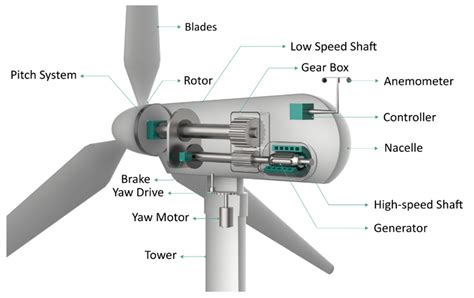

Here are the main parts of a modern windmill:

Blades: Modern windmills have three blades made of composite materials like fiberglass or carbon fiber. These blades are designed to capture wind energy efficiently and convert it into rotational motion.
Hub: The hub is the central part of the windmill that connects the blades to the main shaft. It is designed to withstand the forces exerted by the blades.
Main Shaft: This is the main horizontal shaft that connects the hub to the gearbox. It rotates as the blades catch the wind.
Gearbox: The gearbox increases the rotational speed of the main shaft to a speed suitable for the generator. It is a crucial component in converting wind energy into electrical energy.
Generator: The generator converts the mechanical energy from the gearbox into electrical energy. It is the heart of the modern windmill, producing the electricity that is fed into the grid.
Nacelle: The nacelle is the housing that contains the gearbox, generator, and other components. It is mounted on top of the tower and can be turned to face the wind.
Tower: The tower supports the nacelle and blades. It is often made of steel or concrete and can be very tall to capture stronger winds.
Foundation: The foundation provides stability and support for the tower. It is designed to withstand the forces exerted by the wind and the weight of the windmill.
Control System: The control system monitors and adjusts the operation of the windmill. It ensures that the windmill operates efficiently and safely, even in changing wind conditions.

Comparing Traditional and Modern Windmills

While traditional and modern windmills share the same basic principle of harnessing wind energy, they differ significantly in design and functionality. Traditional windmills were primarily used for mechanical tasks like grinding grain or pumping water. In contrast, modern windmills are designed to generate electricity, contributing to renewable energy sources.

Here is a comparison of the parts of a traditional windmill and a modern windmill:

Component	Traditional Windmill	Modern Windmill
Sails/Blades	Four sails made of cloth or wood	Three blades made of composite materials
Windshaft/Main Shaft	Horizontal shaft connecting sails to millstones	Horizontal shaft connecting blades to gearbox
Upright Shaft	Vertical shaft transmitting motion to millstones	Not present; replaced by gearbox and generator
Millstones	Used for grinding grain	Not present; replaced by generator
Tail Pole	Used to turn the windmill into the wind	Not present; replaced by yaw system
Cap/Nacelle	Houses windshaft and sails	Houses gearbox, generator, and other components
Body/Tower	Main structure supporting the cap	Supports the nacelle and blades
Foundation	Provides stability and support	Provides stability and support

📝 Note: The comparison above highlights the key differences between traditional and modern windmills. While traditional windmills were designed for mechanical tasks, modern windmills are optimized for electricity generation.

The Role of Windmills in Renewable Energy

Modern windmills play a crucial role in the generation of renewable energy. They harness the power of wind, a clean and abundant resource, to produce electricity. This reduces dependence on fossil fuels and helps mitigate climate change. The parts of a windmill are designed to work together efficiently, converting wind energy into electrical energy with minimal environmental impact.

Wind energy is one of the fastest-growing sources of renewable energy. Windmills can be installed onshore or offshore, depending on the wind conditions and available space. Offshore windmills, in particular, have the potential to generate significant amounts of electricity due to the stronger and more consistent winds at sea.

Wind energy has several advantages, including:

Clean Energy: Wind energy does not produce greenhouse gases or pollutants, making it a clean source of energy.
Renewable: Wind is a renewable resource, meaning it will never run out. This makes wind energy a sustainable long-term solution.
Cost-Effective: The cost of wind energy has decreased significantly over the years, making it competitive with traditional energy sources.
Energy Independence: Wind energy can reduce dependence on imported fossil fuels, enhancing energy security.

Maintenance and Safety of Windmills

Maintaining windmills is essential for ensuring their longevity and efficiency. Regular maintenance helps prevent breakdowns and ensures that the parts of a windmill are in good working order. Safety is also a critical consideration, as windmills operate in potentially hazardous conditions.

Here are some key maintenance and safety considerations for windmills:

Regular Inspections: Regular inspections of the blades, gearbox, generator, and other components help identify potential issues before they become major problems.
Lubrication: Proper lubrication of moving parts is essential for reducing friction and wear. This includes the gearbox, bearings, and other mechanical components.
Blade Maintenance: Blades are exposed to harsh weather conditions and can suffer from wear and tear. Regular cleaning and inspection of the blades help maintain their efficiency.
Electrical Systems: The electrical systems, including the generator and control systems, should be regularly checked for any faults or malfunctions.
Safety Protocols: Windmills should be equipped with safety features like emergency shut-off systems and lightning protection. Regular training of maintenance personnel is also crucial for ensuring safety.

📝 Note: Regular maintenance and safety protocols are essential for the efficient and safe operation of windmills. These measures help prevent breakdowns and ensure the longevity of the windmill components.

Future of Wind Energy

The future of wind energy looks promising, with advancements in technology and increasing demand for renewable energy sources. The parts of a windmill are continually being improved to enhance efficiency and reduce costs. Innovations in blade design, gearbox technology, and control systems are making windmills more reliable and cost-effective.

Offshore wind farms are also gaining traction, with the potential to generate significant amounts of electricity. These wind farms are located in areas with strong and consistent winds, making them ideal for energy generation. Advances in floating wind turbines are also opening up new possibilities for offshore wind energy.

Governments and private sectors are investing heavily in wind energy, recognizing its potential to meet the growing demand for clean energy. Policies and incentives are being put in place to promote the development of wind energy projects, further driving the growth of this sector.

Wind energy is not just a technological advancement but also a societal shift towards sustainability. As more countries commit to reducing their carbon footprint, wind energy will play a crucial role in achieving these goals. The parts of a windmill, from the blades to the control systems, are all designed with sustainability in mind, ensuring that wind energy remains a viable and clean source of power for generations to come.

In conclusion, understanding the parts of a windmill provides a deeper appreciation for these remarkable structures. From traditional windmills used for grinding grain to modern wind turbines generating electricity, windmills have evolved significantly over the centuries. Their role in renewable energy is crucial, and with ongoing advancements, they will continue to be a key player in the global energy landscape. The future of wind energy is bright, with innovations and investments driving its growth and sustainability. As we move towards a cleaner and more sustainable future, windmills will undoubtedly play a pivotal role in powering our world.
