Microscopes are indispensable tools in various scientific fields, enabling the observation of objects and structures that are too small to be seen with the naked eye. Understanding the parts of a microscope is crucial for anyone who uses these instruments, whether in a laboratory, classroom, or research setting. This guide will delve into the essential components of a microscope, their functions, and how they work together to provide detailed images of microscopic specimens.
Understanding the Basic Structure of a Microscope

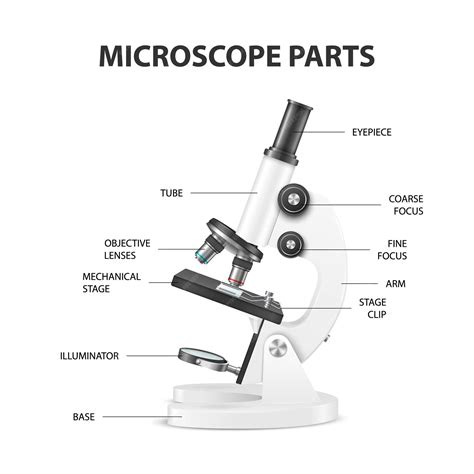

A microscope is composed of several key parts of a microscope, each playing a vital role in the magnification and observation process. The basic structure includes the eyepiece, objective lenses, stage, illuminator, and focus knobs. These components work in harmony to produce a clear and magnified image of the specimen being observed.
Eyepiece (Ocular Lens)
The eyepiece, also known as the ocular lens, is the part of the microscope that you look through. It typically has a magnification power of 10x or 15x. The eyepiece works in conjunction with the objective lenses to provide the total magnification of the specimen. For example, if the eyepiece has a 10x magnification and the objective lens has a 40x magnification, the total magnification would be 400x.
📝 Note: Always ensure the eyepiece is clean and free of scratches to maintain optimal viewing quality.
Objective Lenses
The objective lenses are located near the stage and are responsible for the primary magnification of the specimen. Most microscopes come with multiple objective lenses, each with a different magnification power. These lenses are usually labeled with their magnification power, such as 4x, 10x, 40x, and 100x. The objective lenses are mounted on a rotating turret, allowing the user to switch between different magnifications easily.
Here is a table summarizing the typical objective lenses and their uses:
| Magnification | Typical Use |
|---|---|
| 4x (Scanning) | Low magnification for locating specimens and getting an overview. |
| 10x (Low Power) | General observation and detailed viewing of larger specimens. |
| 40x (High Power) | Detailed observation of smaller structures within specimens. |
| 100x (Oil Immersion) | Highest magnification for observing very fine details, often used with immersion oil. |
Stage and Stage Clips
The stage is the flat platform where the microscope slide is placed. It is usually equipped with stage clips to hold the slide in place. The stage can be adjusted to move the slide horizontally and vertically, allowing the user to position the specimen precisely under the objective lenses. Some advanced microscopes have mechanical stages with precise controls for fine adjustments.
📝 Note: Always ensure the stage is clean and free of debris to avoid scratching the slide or the stage itself.
Illuminator (Light Source)
The illuminator is the light source that illuminates the specimen from below. It is essential for creating a clear image of the specimen. The intensity of the light can usually be adjusted to suit the needs of the observation. Some microscopes use built-in LED lights, while others may use external light sources. Proper illumination is crucial for obtaining high-quality images.
Focus Knobs
The focus knobs are used to adjust the focus of the microscope, bringing the specimen into clear view. There are typically two focus knobs: the coarse focus knob and the fine focus knob. The coarse focus knob makes large adjustments to the focus, while the fine focus knob makes smaller, more precise adjustments. These knobs work by moving the stage or the objective lenses up and down to bring the specimen into focus.
📝 Note: Always start with the lowest magnification objective lens and use the coarse focus knob to bring the specimen into focus before switching to higher magnifications and using the fine focus knob.
Diaphragm (Iris or Disc)
The diaphragm is located below the stage and controls the amount of light that reaches the specimen. It can be adjusted to optimize the contrast and resolution of the image. The diaphragm is particularly useful when observing specimens with varying levels of transparency. By adjusting the diaphragm, the user can enhance the visibility of certain features within the specimen.
Arm
The arm is the part of the microscope that connects the eyepiece to the base. It provides support and stability to the microscope and is often used to carry the microscope. The arm also houses the controls for adjusting the illuminator and the focus knobs. It is important to handle the arm carefully to avoid damaging the microscope.
Base
The base is the bottom part of the microscope that provides stability and support. It is usually made of a sturdy material such as metal or heavy plastic. The base may also include a built-in power supply for the illuminator. Ensuring the base is stable and level is crucial for obtaining clear and steady images.
Mechanical Stage Controls
Mechanical stage controls allow for precise movement of the slide on the stage. These controls typically include knobs for moving the slide horizontally (left-right) and vertically (up-down). Mechanical stages are particularly useful for detailed observations and for capturing images of specific areas of the specimen. They provide fine control over the position of the slide, making it easier to focus on particular features.
📝 Note: Always use the mechanical stage controls gently to avoid damaging the slide or the stage.
Condenser
The condenser is located below the stage and focuses the light onto the specimen. It is particularly important for high-magnification observations. The condenser can be adjusted to control the angle and intensity of the light, which can enhance the contrast and resolution of the image. Some microscopes have adjustable condensers that allow for fine-tuning of the light path.
Cover Slip
A cover slip is a thin, transparent piece of glass that is placed over the specimen on the microscope slide. It helps to keep the specimen in place and prevents it from drying out. The cover slip also ensures that the objective lenses do not come into direct contact with the specimen, which could damage both the specimen and the lenses. Using a cover slip is essential for maintaining the integrity of the specimen and the microscope.
📝 Note: Always use a cover slip of the correct thickness to avoid distortion of the image.
Immersion Oil
Immersion oil is used with high-magnification objective lenses, typically the 100x lens. It is applied between the cover slip and the objective lens to improve the resolution and clarity of the image. The oil helps to reduce the refraction of light, which can occur when light passes through the air between the lens and the cover slip. Using immersion oil can significantly enhance the quality of the image, making it easier to observe fine details within the specimen.
📝 Note: Always use immersion oil sparingly and clean the lens immediately after use to avoid damaging the lens.
Camera Adapter
Some modern microscopes come with a camera adapter that allows for the attachment of a digital camera. This enables the capture of images and videos of the specimen, which can be useful for documentation, analysis, and sharing. The camera adapter typically connects to the eyepiece or the body of the microscope, providing a direct view of the specimen through the camera lens. This feature is particularly useful in research and educational settings.
📝 Note: Ensure the camera adapter is compatible with your microscope and camera to avoid any compatibility issues.
Digital Microscopes
Digital microscopes are a modern advancement that integrates digital technology with traditional microscopy. These microscopes often have built-in cameras and displays, allowing for direct viewing and capture of images without the need for an eyepiece. Digital microscopes offer several advantages, including the ability to save and share images, perform digital measurements, and integrate with software for advanced analysis. They are increasingly popular in educational and research settings due to their convenience and versatility.
📝 Note: Digital microscopes may require specific software and hardware for optimal performance.
Understanding the parts of a microscope and their functions is essential for anyone who uses these instruments. Each component plays a crucial role in the magnification and observation process, and knowing how to use them effectively can significantly enhance the quality of the observations. Whether you are a student, researcher, or educator, a solid understanding of the microscope's components will help you make the most of this powerful tool.
From the eyepiece and objective lenses to the stage, illuminator, and focus knobs, each part of the microscope contributes to the overall functionality and performance. By mastering the use of these components, you can achieve clear and detailed images of microscopic specimens, enabling you to explore the fascinating world of the very small. Whether you are observing cells, bacteria, or other microscopic structures, a well-maintained and properly used microscope is an invaluable tool for scientific discovery and education.
