Parallel Series Springs

Understanding the dynamics of mechanical systems often involves delving into the behavior of Parallel Series Springs. These systems are fundamental in various engineering applications, from automotive suspensions to industrial machinery. By examining how springs in parallel and series configurations interact, engineers can design more efficient and reliable systems. This post will explore the principles behind Parallel Series Springs, their applications, and how to analyze their behavior.

Table of Contents

Understanding Parallel Springs

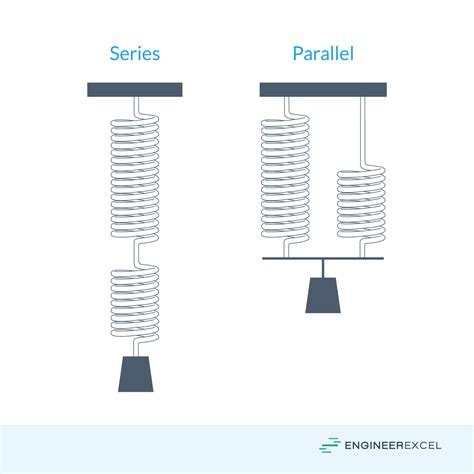

Parallel springs are a configuration where multiple springs are connected side by side, sharing the same load. When a force is applied to a system of parallel springs, each spring experiences the same displacement but contributes to the overall force. The total force exerted by the system is the sum of the forces exerted by each individual spring.

To analyze parallel springs, consider the following formula:

📝 Note: The formula for the equivalent spring constant (k_eq) of parallel springs is given by:

k_eq = k1 + k2 + k3 + ... + kn

Where k1, k2, k3, ..., kn are the spring constants of the individual springs.

For example, if you have three springs with constants k1 = 100 N/m, k2 = 200 N/m, and k3 = 300 N/m, the equivalent spring constant would be:

k_eq = 100 + 200 + 300 = 600 N/m

Understanding Series Springs

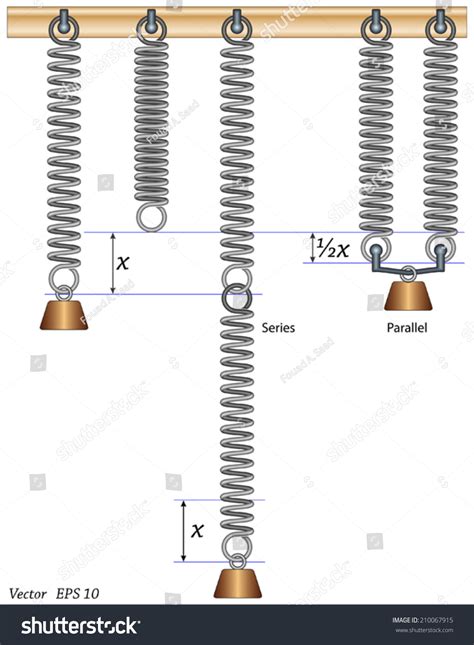

In contrast, series springs are connected end-to-end, with each spring experiencing the same force but different displacements. The total displacement of the system is the sum of the displacements of each individual spring. The equivalent spring constant for series springs is calculated differently.

To analyze series springs, use the following formula:

📝 Note: The formula for the equivalent spring constant (k_eq) of series springs is given by:

1/k_eq = 1/k1 + 1/k2 + 1/k3 + ... + 1/kn

Where k1, k2, k3, ..., kn are the spring constants of the individual springs.

For example, if you have three springs with constants k1 = 100 N/m, k2 = 200 N/m, and k3 = 300 N/m, the equivalent spring constant would be:

1/k_eq = 1/100 + 1/200 + 1/300

1/k_eq = 0.01 + 0.005 + 0.0033

1/k_eq = 0.0183

k_eq = 1/0.0183 ≈ 54.64 N/m

Combining Parallel and Series Springs

In many real-world applications, springs are arranged in a combination of parallel and series configurations. Analyzing these Parallel Series Springs systems requires a step-by-step approach. First, identify the parallel and series components, then calculate the equivalent spring constants for each configuration.

Consider a system with two parallel springs, each with a series spring connected to them. Let's denote the spring constants as k1, k2 for the parallel springs, and k3, k4 for the series springs connected to k1 and k2, respectively.

First, calculate the equivalent spring constant for the series springs:

1/k_eq_series1 = 1/k1 + 1/k3

1/k_eq_series2 = 1/k2 + 1/k4

Then, calculate the equivalent spring constant for the parallel configuration:

k_eq_parallel = k_eq_series1 + k_eq_series2

This approach can be extended to more complex configurations by breaking down the system into smaller, manageable parts.

Applications of Parallel Series Springs

Parallel Series Springs are used in various engineering applications due to their ability to distribute loads and absorb shocks. Some common applications include:

Automotive Suspensions: Springs in vehicle suspensions are often arranged in parallel and series to provide a smooth ride and handle different road conditions.
Industrial Machinery: Machinery components, such as presses and conveyors, use Parallel Series Springs to absorb vibrations and reduce wear and tear.
Building Structures: Springs in building foundations help distribute the weight of the structure and absorb seismic activity.
Aerospace Engineering: Aircraft landing gear and other components use Parallel Series Springs to absorb the impact of landing and reduce stress on the aircraft frame.

Analyzing Parallel Series Springs

To analyze Parallel Series Springs, follow these steps:

Identify the Configuration: Determine whether the springs are in parallel, series, or a combination of both.
Calculate Equivalent Spring Constants: Use the formulas for parallel and series springs to calculate the equivalent spring constants.
Apply Loads and Displacements: Determine the loads and displacements for the system and use Hooke's Law to analyze the behavior.
Validate with Experimental Data: Compare the theoretical results with experimental data to ensure accuracy.

📝 Note: Always consider the material properties and environmental factors when analyzing Parallel Series Springs.

Example Analysis

Let's consider an example where two springs with constants k1 = 150 N/m and k2 = 250 N/m are connected in parallel, and each has a series spring with constants k3 = 100 N/m and k4 = 200 N/m, respectively.

First, calculate the equivalent spring constants for the series springs:

1/k_eq_series1 = 1/150 + 1/100 = 0.0167

k_eq_series1 = 1/0.0167 ≈ 59.88 N/m

1/k_eq_series2 = 1/250 + 1/200 = 0.012

k_eq_series2 = 1/0.012 ≈ 83.33 N/m

Then, calculate the equivalent spring constant for the parallel configuration:

k_eq_parallel = 59.88 + 83.33 ≈ 143.21 N/m

This equivalent spring constant can be used to analyze the behavior of the system under different loads and displacements.

Important Considerations

When working with Parallel Series Springs, several important considerations should be kept in mind:

Material Properties: The material of the springs affects their spring constant and durability. Common materials include steel, stainless steel, and titanium.
Environmental Factors: Temperature, humidity, and other environmental factors can affect the performance of springs. Ensure that the springs are suitable for the intended operating conditions.
Fatigue and Wear: Springs are subject to fatigue and wear over time. Regular maintenance and inspection are necessary to ensure the reliability of the system.
Safety Factors: Always include safety factors in the design to account for unexpected loads and failures.

By considering these factors, engineers can design more robust and reliable systems using Parallel Series Springs.

In conclusion, understanding the behavior of Parallel Series Springs is crucial for designing efficient and reliable mechanical systems. By analyzing the equivalent spring constants and considering the material properties and environmental factors, engineers can optimize the performance of these systems. Whether in automotive suspensions, industrial machinery, or aerospace engineering, Parallel Series Springs play a vital role in absorbing shocks and distributing loads, ensuring the longevity and reliability of the systems they support.
