Oxygen Sag Curve

Understanding the intricacies of the Oxygen Sag Curve is crucial for anyone involved in water quality management and environmental engineering. This curve illustrates the dissolved oxygen (DO) levels in a water body over time, providing valuable insights into the health and ecological balance of aquatic ecosystems. By analyzing the Oxygen Sag Curve, professionals can make informed decisions to mitigate pollution and maintain sustainable water quality.

Table of Contents

What is the Oxygen Sag Curve?

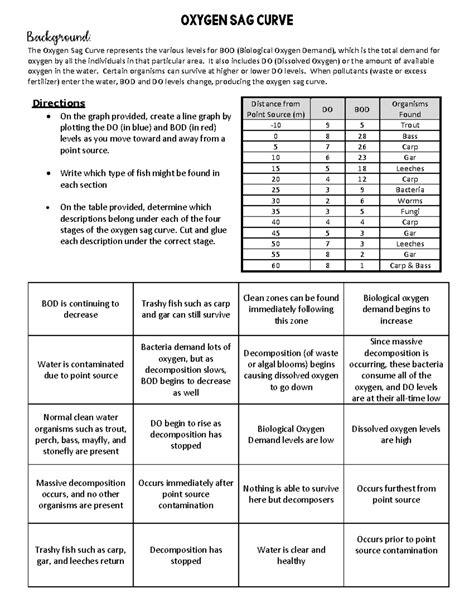

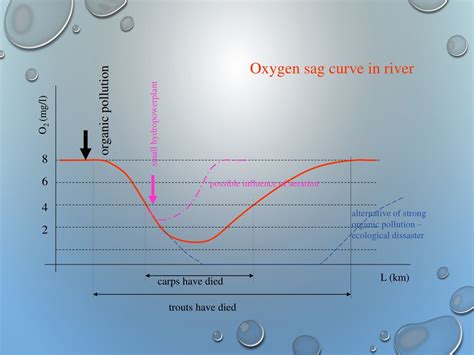

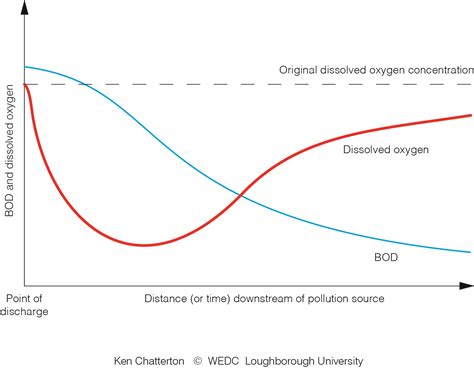

The Oxygen Sag Curve is a graphical representation of the changes in dissolved oxygen levels in a water body as it flows downstream from a point source of pollution. This curve is essential for understanding the impact of organic pollutants on aquatic life. The curve typically shows a decrease in DO levels due to the decomposition of organic matter, followed by a recovery as the water body re-oxygenates.

Key Components of the Oxygen Sag Curve

The Oxygen Sag Curve consists of several key components that help in interpreting the data:

Initial DO Level: The dissolved oxygen level at the point of pollution entry.
Critical Point: The point at which the DO level is at its lowest, often referred to as the "sag."
Recovery Zone: The area where the DO level begins to rise again as the water re-oxygenates.
Final DO Level: The dissolved oxygen level downstream, after the water has had time to recover.

Factors Affecting the Oxygen Sag Curve

Several factors influence the shape and characteristics of the Oxygen Sag Curve. Understanding these factors is essential for accurate interpretation and effective management:

Temperature: Warmer water holds less dissolved oxygen, affecting the curve's shape.
Flow Rate: The speed at which water flows can impact the rate of re-oxygenation.
Organic Load: The amount of organic matter entering the water body affects the rate of oxygen depletion.
Biological Activity: The presence of microorganisms and their metabolic activities influence oxygen levels.

Calculating the Oxygen Sag Curve

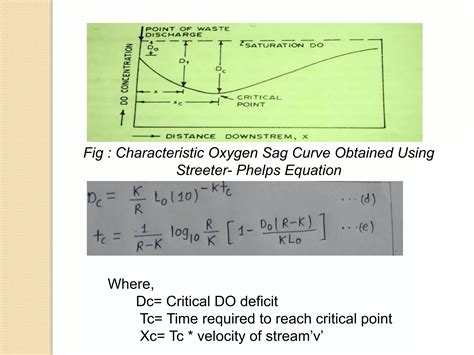

To calculate the Oxygen Sag Curve, several mathematical models and equations are used. The most common approach involves the Streeter-Phelps equation, which considers the rate of oxygen depletion due to organic matter decomposition and the rate of re-aeration. The equation is as follows:

📝 Note: The Streeter-Phelps equation is a fundamental tool in water quality modeling and is widely used in environmental engineering.

DO(t) = DOs - (DOs - DO0) * e^(-k2 * t) + (L0 * k1 / (k2 - k1)) * (e^(-k1 * t) - e^(-k2 * t))

DO(t): Dissolved oxygen at time t
DOs: Saturation dissolved oxygen concentration
DO0: Initial dissolved oxygen concentration
L0: Initial BOD (Biochemical Oxygen Demand)
k1: Deoxygenation rate constant
k2: Re-aeration rate constant
t: Time

Interpreting the Oxygen Sag Curve

Interpreting the Oxygen Sag Curve involves analyzing the critical points and understanding the implications for water quality. Key points to consider include:

Critical DO Level: Identify the minimum DO level and its location along the water body.
Recovery Rate: Assess how quickly the DO levels recover after the critical point.
Impact on Aquatic Life: Determine the potential impact on aquatic organisms based on the DO levels.

By carefully analyzing these points, environmental engineers can develop strategies to improve water quality and protect aquatic ecosystems.

Applications of the Oxygen Sag Curve

The Oxygen Sag Curve has numerous applications in environmental management and engineering. Some of the key applications include:

Water Quality Monitoring: Regular monitoring of DO levels to ensure compliance with environmental standards.
Pollution Control: Identifying sources of pollution and implementing control measures to reduce organic load.
Ecosystem Management: Protecting aquatic life by maintaining optimal DO levels.
Wastewater Treatment: Designing and optimizing wastewater treatment processes to minimize oxygen depletion.

Case Studies and Examples

To illustrate the practical application of the Oxygen Sag Curve, consider the following case studies:

Case Study 1: River Pollution Management

A river receiving wastewater from an industrial plant showed significant DO depletion. By plotting the Oxygen Sag Curve, engineers identified the critical point and implemented measures to reduce the organic load. This included upgrading the wastewater treatment plant and installing aeration systems along the river. The results showed a significant improvement in DO levels, benefiting aquatic life and overall water quality.

Case Study 2: Lake Restoration

A lake suffering from eutrophication due to excessive nutrient input was analyzed using the Oxygen Sag Curve. The curve revealed severe oxygen depletion during the summer months, leading to fish kills. Restoration efforts included reducing nutrient inputs, installing aeration devices, and promoting natural vegetation to enhance oxygen production. Over time, the lake's water quality improved, and aquatic life thrived.

Challenges and Limitations

While the Oxygen Sag Curve is a powerful tool, it has its challenges and limitations. Some of the key challenges include:

Data Accuracy: The accuracy of the curve depends on reliable data collection and analysis.
Dynamic Conditions: Changing environmental conditions can affect the curve's validity over time.
Complex Interactions: The interactions between various factors (temperature, flow rate, biological activity) can complicate the interpretation.

Despite these challenges, the Oxygen Sag Curve remains a valuable tool for water quality management when used appropriately.

Future Directions

The field of water quality management is continually evolving, and so are the tools and techniques used to analyze the Oxygen Sag Curve. Future directions include:

Advanced Modeling: Developing more sophisticated models that account for complex interactions and dynamic conditions.
Real-Time Monitoring: Implementing real-time monitoring systems to provide up-to-date data for more accurate analysis.
Integrated Management: Combining the Oxygen Sag Curve with other environmental indicators for a holistic approach to water quality management.

By embracing these advancements, environmental engineers can enhance their ability to protect and restore aquatic ecosystems.

In conclusion, the Oxygen Sag Curve is an indispensable tool for understanding and managing water quality. By analyzing the curve, professionals can identify critical points, assess the impact of pollution, and develop effective strategies to maintain healthy aquatic environments. The curve’s applications in pollution control, ecosystem management, and wastewater treatment highlight its significance in environmental engineering. Despite challenges and limitations, the Oxygen Sag Curve continues to be a cornerstone of water quality management, guiding efforts to protect our precious water resources for future generations.
