Oxyacetylene Gas Welding

Oxyacetylene gas welding, often referred to as oxy-fuel welding, is a versatile and widely used welding process that combines oxygen and acetylene gases to produce a high-temperature flame. This flame is capable of melting and joining metals, making it an essential technique in various industries, including automotive repair, metal fabrication, and artistic metalwork. The process involves the combustion of acetylene in oxygen to create a flame that can reach temperatures up to 3,500°C (6,332°F), making it suitable for welding a wide range of metals, including steel, stainless steel, and cast iron.

Understanding Oxyacetylene Gas Welding

Oxyacetylene gas welding is a process that relies on the chemical reaction between oxygen and acetylene to produce a flame. This flame is used to heat and melt the metal, allowing it to be joined together. The process is relatively simple and involves several key components:

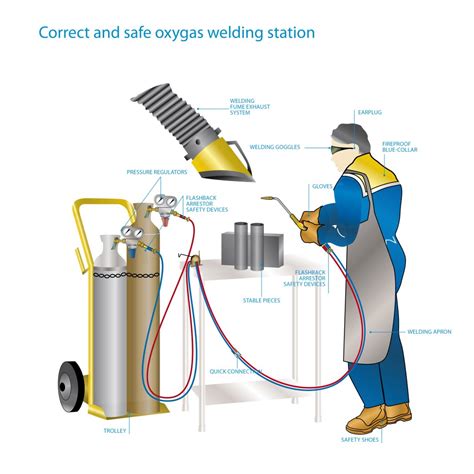

• Oxygen Cylinder: Contains compressed oxygen gas.
• Acetylene Cylinder: Contains acetylene gas, which is stored dissolved in a solvent.
• Welding Torch: A device that mixes and ignites the gases to produce the flame.
• Regulators: Devices that control the pressure and flow of the gases from the cylinders to the torch.
• Hoses: Flexible tubes that connect the cylinders to the torch.

The welding torch is the most critical component in oxyacetylene gas welding. It consists of a handle, a mixing chamber, and a tip. The handle contains valves that control the flow of oxygen and acetylene. The mixing chamber combines the gases, and the tip directs the flame onto the metal surface. The torch tip comes in various sizes and shapes, each designed for specific welding tasks and metal thicknesses.

Setting Up for Oxyacetylene Gas Welding

Before beginning the welding process, it is essential to set up the equipment correctly. This involves several steps:

• Inspect the Equipment: Ensure that all components, including cylinders, regulators, hoses, and the torch, are in good condition and free from damage.
• Connect the Cylinders: Attach the oxygen and acetylene cylinders to their respective regulators. Ensure that the valves on the cylinders are closed before connecting the regulators.
• Open the Cylinder Valves: Slowly open the valves on the cylinders to allow gas to flow into the regulators. Adjust the regulators to the desired pressure, typically around 5-15 psi for acetylene and 20-30 psi for oxygen.
• Connect the Hoses: Attach the hoses to the regulators and the torch. Ensure that the hoses are securely connected and free from leaks.
• Purge the System: Open the torch valves briefly to purge any air from the hoses and regulators. This step is crucial to prevent backfires and ensure a clean flame.

Once the equipment is set up, you can proceed with the welding process. It is important to follow safety guidelines and wear appropriate protective gear, including gloves, safety glasses, and a welding helmet.

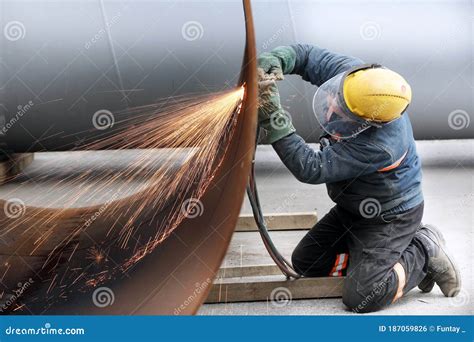

The Oxyacetylene Gas Welding Process

The oxyacetylene gas welding process involves several steps, each crucial for achieving a successful weld. Here is a detailed overview of the process:

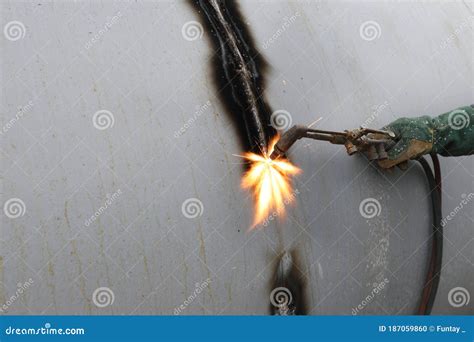

• Lighting the Torch: Open the acetylene valve on the torch slightly and use a spark lighter or striker to ignite the gas. Adjust the acetylene flow to achieve a neutral flame, which has a balanced ratio of oxygen and acetylene.
• Adjusting the Flame: Once the acetylene is lit, open the oxygen valve to introduce oxygen into the flame. Adjust the oxygen flow to achieve the desired flame type. A neutral flame is typically used for most welding tasks, but a carburizing or oxidizing flame may be required for specific applications.
• Preheating the Metal: Hold the torch at a 45-degree angle to the metal surface and move it in a circular motion to preheat the area to be welded. This step helps to distribute the heat evenly and prevent warping.

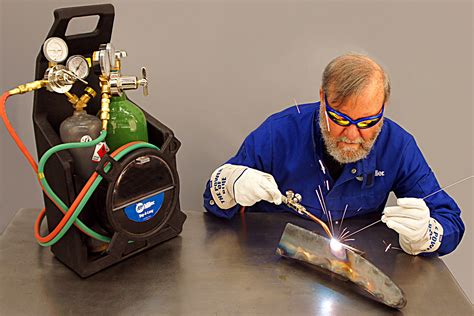

• Welding: Once the metal is preheated, move the torch in a steady, circular motion to melt the metal and form a puddle. Add a welding rod to the puddle and move the torch and rod together to fill the joint. Continue this process until the joint is completely filled.
• Cooling: After completing the weld, allow the metal to cool naturally. Avoid quenching the weld with water, as this can cause cracking and other defects.

During the welding process, it is essential to maintain a consistent flame and control the heat input to prevent overheating and warping. The welding rod should be added to the puddle at a steady rate to ensure a smooth and even weld.

Types of Flames in Oxyacetylene Gas Welding

In oxyacetylene gas welding, the type of flame used can significantly impact the quality of the weld. There are three main types of flames:

• Neutral Flame: This flame has a balanced ratio of oxygen and acetylene, resulting in a clear, blue flame with a distinct inner cone. It is the most commonly used flame for welding and cutting, as it provides a clean and controlled heat source.
• Carburizing Flame: This flame has an excess of acetylene, resulting in a yellow-tipped flame with a larger inner cone. It is used for welding high-carbon steels and cast iron, as the excess carbon helps to prevent oxidation and improve the weld's strength.
• Oxidizing Flame: This flame has an excess of oxygen, resulting in a shorter, more intense flame with a smaller inner cone. It is used for welding low-carbon steels and for cutting operations, as the excess oxygen helps to remove impurities and improve the weld's quality.

Choosing the correct flame type is crucial for achieving a successful weld. The type of flame used will depend on the metal being welded, the thickness of the metal, and the specific requirements of the application.

Safety Precautions in Oxyacetylene Gas Welding

Oxyacetylene gas welding involves the use of high-pressure gases and intense heat, making it essential to follow safety precautions to prevent accidents and injuries. Here are some key safety guidelines:

• Protective Gear: Wear appropriate protective gear, including gloves, safety glasses, and a welding helmet. The helmet should have a shade suitable for the welding process being performed.
• Ventilation: Ensure that the welding area is well-ventilated to prevent the accumulation of fumes and gases. Use exhaust fans or natural ventilation to maintain a safe working environment.
• Fire Safety: Keep a fire extinguisher nearby and ensure that the welding area is free from flammable materials. Use fire-resistant mats or screens to protect surrounding areas from sparks and molten metal.
• Gas Handling: Handle cylinders and regulators with care to prevent damage and leaks. Always close the cylinder valves when not in use and store cylinders in a secure, upright position.
• Emergency Procedures: Familiarize yourself with emergency procedures in case of a gas leak, fire, or other accidents. Know the location of emergency equipment and how to use it.

Following these safety guidelines will help to ensure a safe and successful welding experience. Always prioritize safety and take the necessary precautions to prevent accidents and injuries.

🛑 Note: Always ensure that the welding area is free from combustible materials and that proper ventilation is in place to prevent the accumulation of fumes and gases.

Applications of Oxyacetylene Gas Welding

Oxyacetylene gas welding is a versatile process with a wide range of applications in various industries. Some of the most common applications include:

• Automotive Repair: Oxyacetylene gas welding is often used in automotive repair for welding and cutting metal components. It is particularly useful for repairing exhaust systems, body panels, and other metal parts.

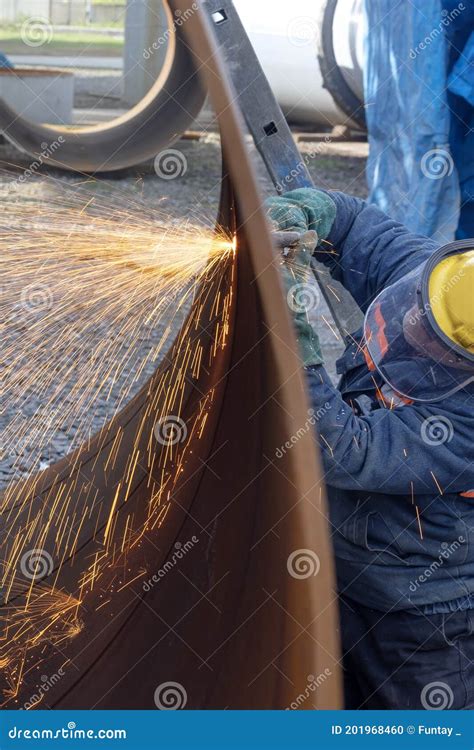

• Metal Fabrication: In metal fabrication, oxyacetylene gas welding is used to join and repair metal structures, including beams, pipes, and sheets. It is also used for cutting and shaping metal components.
• Artistic Metalwork: Artists and craftspeople use oxyacetylene gas welding to create intricate metal sculptures, jewelry, and other decorative items. The process allows for precise control over the heat and flame, making it ideal for detailed work.
• Pipe Welding: Oxyacetylene gas welding is commonly used in the construction and repair of pipelines. It is suitable for welding various types of pipes, including steel, stainless steel, and cast iron.
• Maintenance and Repair: In industrial settings, oxyacetylene gas welding is used for maintenance and repair tasks, including welding and cutting metal components, repairing machinery, and fabricating replacement parts.

Oxyacetylene gas welding is a valuable skill in many industries, and its versatility makes it a popular choice for a wide range of applications.

Advantages and Disadvantages of Oxyacetylene Gas Welding

Oxyacetylene gas welding offers several advantages and disadvantages, making it suitable for specific applications but not others. Understanding these factors can help determine when to use this welding process.

Advantages

• Versatility: Oxyacetylene gas welding can be used on a wide range of metals, including steel, stainless steel, cast iron, and aluminum. It is suitable for various thicknesses and types of joints.
• Portability: The equipment is relatively lightweight and portable, making it easy to use in remote locations or on-site welding projects.
• Cost-Effective: The initial cost of equipment is relatively low compared to other welding processes, making it an affordable option for small workshops and hobbyists.
• Precision: The process allows for precise control over the heat and flame, making it ideal for detailed and intricate welding tasks.
• Ease of Use: Oxyacetylene gas welding is relatively easy to learn and master, making it accessible for beginners and professionals alike.

Disadvantages

• Slow Process: Compared to other welding processes, such as MIG or TIG welding, oxyacetylene gas welding is relatively slow. This can be a disadvantage for large-scale production or time-sensitive projects.
• Limited Thickness: The process is not suitable for welding very thick metals, as the heat input is limited. For thicker materials, other welding processes may be more appropriate.
• Safety Concerns: The use of high-pressure gases and intense heat poses safety risks, requiring strict adherence to safety guidelines and the use of protective gear.
• Environmental Impact: The combustion of acetylene and oxygen produces fumes and gases that can be harmful to the environment and human health. Proper ventilation and safety measures are essential to mitigate these risks.

Oxyacetylene gas welding is a valuable technique with both advantages and disadvantages. Understanding these factors can help determine when to use this process and when to consider alternative welding methods.

🛑 Note: Always prioritize safety when using oxyacetylene gas welding equipment. Follow proper handling procedures and wear appropriate protective gear to prevent accidents and injuries.

Comparing Oxyacetylene Gas Welding with Other Welding Processes

Oxyacetylene gas welding is just one of many welding processes available. Comparing it with other methods can help determine the best approach for specific applications. Here is a comparison of oxyacetylene gas welding with some other common welding processes:

Each welding process has its unique advantages and disadvantages, making them suitable for different applications. Oxyacetylene gas welding is particularly useful for its versatility, portability, and precision, making it a popular choice for various industries.

Oxyacetylene gas welding is a versatile and widely used welding process that combines oxygen and acetylene gases to produce a high-temperature flame. This flame is capable of melting and joining metals, making it an essential technique in various industries, including automotive repair, metal fabrication, and artistic metalwork. The process involves the combustion of acetylene in oxygen to create a flame that can reach temperatures up to 3,500°C (6,332°F), making it suitable for welding a wide range of metals, including steel, stainless steel, and cast iron.

Oxyacetylene gas welding is a valuable skill in many industries, and its versatility makes it a popular choice for a wide range of applications. Understanding the process, safety precautions, and applications of oxyacetylene gas welding can help ensure successful and safe welding projects. Whether you are a beginner or an experienced welder, mastering this technique can open up new opportunities and enhance your welding skills.
