Oil Immersion Microscope

Microscopes have revolutionized our understanding of the microscopic world, enabling scientists and researchers to explore realms invisible to the naked eye. Among the various types of microscopes available, the Oil Immersion Microscope stands out as a powerful tool for high-resolution imaging. This type of microscope uses a special immersion oil between the objective lens and the cover slip, significantly enhancing the resolution and clarity of the image. In this post, we will delve into the intricacies of the Oil Immersion Microscope, its applications, advantages, and the techniques involved in its use.

Table of Contents

Understanding the Oil Immersion Microscope

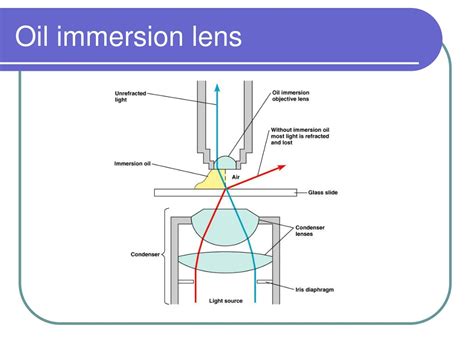

The Oil Immersion Microscope is a specialized type of light microscope that employs immersion oil to improve the resolution of the image. The principle behind this technique is to minimize the refractive index mismatch between the objective lens and the specimen. By using immersion oil, which has a refractive index similar to that of glass, the microscope can achieve higher numerical apertures, resulting in sharper and more detailed images.

Components of an Oil Immersion Microscope

An Oil Immersion Microscope consists of several key components, each playing a crucial role in its functionality:

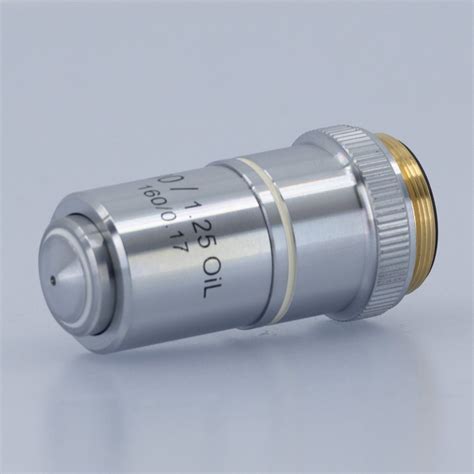

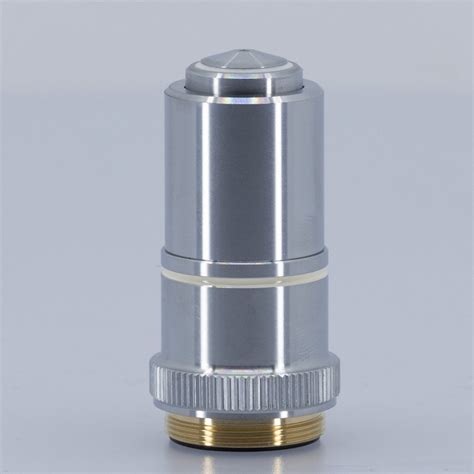

Objective Lens: This is the lens closest to the specimen and is designed to work with immersion oil. It typically has a high numerical aperture (NA) and is marked with an oil immersion designation.
Immersion Oil: This is a special oil with a refractive index similar to that of glass. It is applied between the objective lens and the cover slip to enhance image resolution.
Stage: The platform where the specimen slide is placed. It often includes mechanical controls for precise movement.
Illuminator: The light source that provides illumination for viewing the specimen. It can be a halogen lamp, LED, or other types of light sources.
Condenser: A lens system that focuses light onto the specimen, enhancing contrast and resolution.
Eyepiece: The lens through which the observer views the magnified image. It is usually interchangeable with different magnification powers.

Applications of the Oil Immersion Microscope

The Oil Immersion Microscope is widely used in various fields due to its high-resolution capabilities. Some of the key applications include:

Cell Biology: Studying the structure and function of cells, including organelles and cellular processes.
Microbiology: Observing bacteria, viruses, and other microorganisms in detail.
Histology: Examining tissue sections to understand the structure and organization of biological tissues.
Pathology: Diagnosing diseases by examining tissue samples for abnormalities.
Material Science: Analyzing the microstructure of materials, such as metals and polymers.

Advantages of Using an Oil Immersion Microscope

The Oil Immersion Microscope offers several advantages over traditional light microscopes:

Enhanced Resolution: The use of immersion oil allows for higher numerical apertures, resulting in sharper and more detailed images.
Improved Contrast: The oil helps to reduce light scattering, enhancing the contrast of the specimen.
Reduced Aberrations: By matching the refractive indices, the microscope minimizes optical aberrations, leading to clearer images.
Versatility: Suitable for a wide range of applications in biology, medicine, and material science.

Techniques for Using an Oil Immersion Microscope

Using an Oil Immersion Microscope requires careful handling and specific techniques to ensure optimal performance. Here are the steps involved:

Preparing the Specimen

Before using the microscope, the specimen must be properly prepared:

Place the specimen on a clean glass slide.
Cover the specimen with a cover slip, ensuring there are no air bubbles.

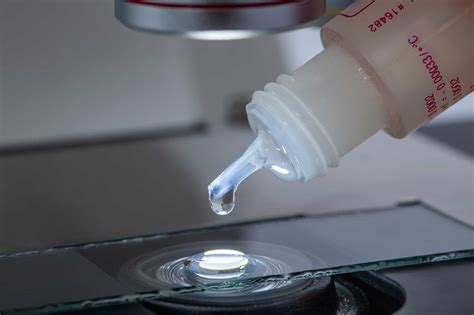

Apply a drop of immersion oil to the cover slip.

Setting Up the Microscope

Follow these steps to set up the Oil Immersion Microscope:

Turn on the illuminator and adjust the intensity to a suitable level.
Place the prepared slide on the stage and secure it with the stage clips.
Select the appropriate objective lens (usually 100x) and rotate it into position.
Lower the objective lens carefully until it touches the immersion oil on the cover slip.
Focus the microscope using the coarse and fine adjustment knobs.

🔍 Note: Always start with the lowest magnification objective lens and gradually increase to the oil immersion lens to avoid damaging the specimen or the lens.

Viewing the Specimen

Once the microscope is set up, you can begin viewing the specimen:

Adjust the focus using the fine adjustment knob to achieve a clear image.
Use the mechanical stage controls to move the specimen and explore different areas.
Take notes or capture images as needed for analysis.

🔍 Note: Be cautious when handling the immersion oil and objective lens to avoid contamination or damage.

Maintenance and Care

Proper maintenance and care are essential to ensure the longevity and performance of an Oil Immersion Microscope. Here are some tips:

Clean the objective lens and cover slip with lens paper and a suitable cleaning solution after each use.
Store the microscope in a clean, dust-free environment.
Regularly check and replace the immersion oil if it becomes contaminated or degraded.
Avoid exposing the microscope to extreme temperatures or humidity.

Comparing Oil Immersion Microscopes with Other Types

To better understand the unique advantages of an Oil Immersion Microscope, it is helpful to compare it with other types of microscopes:

Type of Microscope	Resolution	Applications	Advantages
Light Microscope	Lower	General biological and material science	Easy to use, affordable
Fluorescence Microscope	Moderate	Cell biology, molecular biology	High contrast, specific labeling
Electron Microscope	Very High	Ultra-structural analysis	Extremely detailed images
Oil Immersion Microscope	High	Cell biology, microbiology, histology	Enhanced resolution, improved contrast

While each type of microscope has its strengths, the Oil Immersion Microscope stands out for its ability to provide high-resolution images with relatively simple setup and operation.

In conclusion, the Oil Immersion Microscope is a powerful tool that has significantly advanced our ability to explore the microscopic world. Its use of immersion oil to enhance resolution and clarity makes it indispensable in various scientific and medical fields. By understanding its components, applications, and techniques, researchers can fully leverage the capabilities of this remarkable instrument. Proper maintenance and care ensure that the microscope remains a reliable tool for years to come, continuing to unveil the mysteries of the microscopic realm.
