In the realm of industrial automation and process control, the Oil Control Valve plays a pivotal role in managing the flow of oil within various systems. These valves are essential components in industries such as oil and gas, chemical processing, and manufacturing, where precise control of oil flow is crucial for operational efficiency and safety. This blog post delves into the intricacies of Oil Control Valves, their types, applications, and maintenance practices.
Understanding Oil Control Valves
An Oil Control Valve is a mechanical device designed to regulate the flow of oil in a system. These valves can control the direction, pressure, and flow rate of oil, ensuring that the system operates smoothly and efficiently. They are commonly used in hydraulic systems, where oil is the primary medium for transmitting power.
Oil Control Valves come in various types, each suited for different applications. The most common types include:
- Directional Control Valves: These valves control the direction of oil flow within a system. They are often used in hydraulic circuits to direct oil to different actuators.
- Pressure Control Valves: These valves regulate the pressure of oil in a system. They are essential for maintaining safe operating pressures and preventing system failures.
- Flow Control Valves: These valves control the flow rate of oil, ensuring that the system operates within the desired parameters. They are crucial for applications that require precise flow control.
Applications of Oil Control Valves
Oil Control Valves are used in a wide range of industries and applications. Some of the most common applications include:
- Hydraulic Systems: In hydraulic systems, Oil Control Valves are used to regulate the flow of hydraulic oil, ensuring that the system operates efficiently and safely.
- Automotive Industry: In the automotive industry, Oil Control Valves are used in various systems, including power steering, brakes, and transmissions.
- Aerospace Industry: In the aerospace industry, Oil Control Valves are used in hydraulic systems for controlling flight surfaces, landing gear, and other critical components.
- Chemical Processing: In chemical processing, Oil Control Valves are used to regulate the flow of oil in various processes, ensuring that the system operates safely and efficiently.
Types of Oil Control Valves
Oil Control Valves can be categorized based on their design and functionality. Some of the most common types include:
- Spool Valves: These valves use a spool to control the flow of oil. They are commonly used in hydraulic systems due to their simplicity and reliability.
- Poppet Valves: These valves use a poppet to control the flow of oil. They are often used in applications that require precise flow control.
- Check Valves: These valves allow oil to flow in one direction only, preventing backflow. They are essential for maintaining system integrity.
- Relief Valves: These valves release excess pressure from a system, preventing overpressure situations. They are crucial for safety in high-pressure systems.
Maintenance of Oil Control Valves
Maintaining Oil Control Valves is essential for ensuring their longevity and reliability. Regular maintenance can prevent system failures and costly repairs. Some key maintenance practices include:
- Regular Inspection: Regularly inspect Oil Control Valves for signs of wear, corrosion, or damage. Replace any damaged components promptly.
- Lubrication: Ensure that the valves are properly lubricated to reduce friction and wear. Use the recommended lubricant for your specific valve type.
- Cleaning: Clean the valves regularly to remove any debris or contaminants that could affect their performance. Use a suitable cleaning solution and follow the manufacturer's guidelines.
- Calibration: Periodically calibrate the valves to ensure they are operating within the desired parameters. This is especially important for valves that control critical processes.
Here is a table summarizing the maintenance practices for different types of Oil Control Valves:
| Valve Type | Maintenance Practice | Frequency |
|---|---|---|
| Spool Valves | Inspection and Lubrication | Monthly |
| Poppet Valves | Cleaning and Calibration | Quarterly |
| Check Valves | Inspection and Replacement of Seals | Annually |
| Relief Valves | Calibration and Testing | Semi-Annually |
🔧 Note: Always refer to the manufacturer's guidelines for specific maintenance requirements and intervals.
Common Issues with Oil Control Valves
Despite their robustness, Oil Control Valves can encounter various issues that affect their performance. Some common problems include:
- Leakage: Leakage can occur due to worn-out seals or damaged components. Regular inspection and replacement of seals can prevent leakage.
- Sticking: Valves can stick due to debris or lack of lubrication. Regular cleaning and lubrication can prevent sticking.
- Corrosion: Corrosion can affect the performance of valves, especially in harsh environments. Using corrosion-resistant materials and regular cleaning can mitigate this issue.
- Wear and Tear: Over time, valves can experience wear and tear, leading to reduced performance. Regular inspection and replacement of worn-out components can extend the valve's lifespan.
Addressing these issues promptly can prevent system failures and ensure the smooth operation of Oil Control Valves.
Selection Criteria for Oil Control Valves
Selecting the right Oil Control Valve for your application is crucial for ensuring optimal performance and reliability. Some key selection criteria include:
- Flow Rate: Choose a valve that can handle the required flow rate of your system. Ensure that the valve's flow capacity matches your system's requirements.
- Pressure Rating: Select a valve with a pressure rating that exceeds your system's maximum operating pressure. This ensures safety and reliability.
- Material Compatibility: Ensure that the valve's materials are compatible with the oil and other fluids in your system. This prevents corrosion and other compatibility issues.
- Operating Environment: Consider the operating environment, including temperature, humidity, and exposure to chemicals. Choose a valve that can withstand these conditions.
- Response Time: For applications that require precise control, select a valve with a fast response time. This ensures that the system can react quickly to changes in demand.
By considering these criteria, you can select an Oil Control Valve that meets your specific needs and ensures reliable performance.

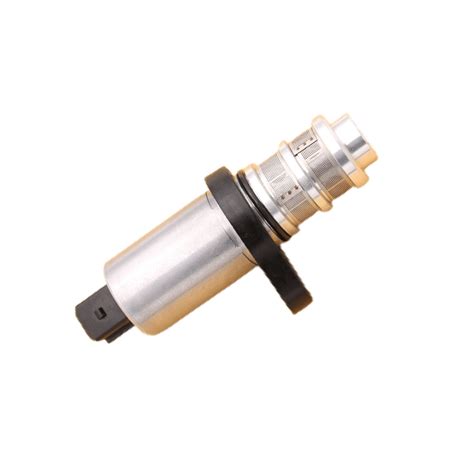

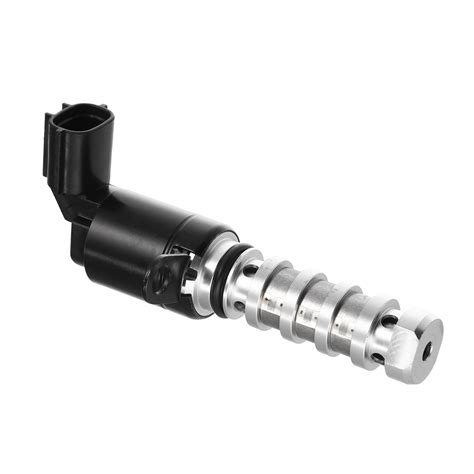

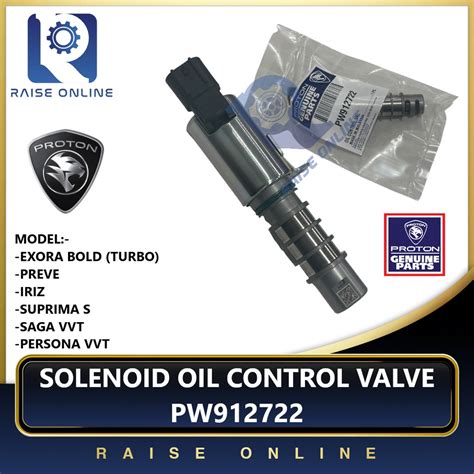

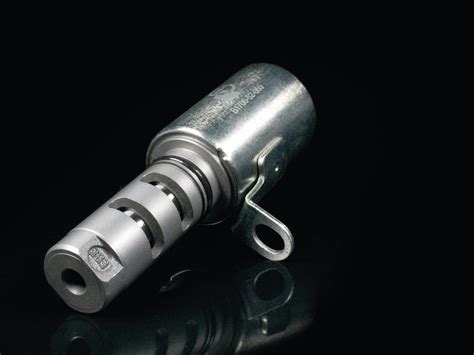

Here is an image of a typical Oil Control Valve used in hydraulic systems:
This image illustrates the complexity and precision of Oil Control Valves, highlighting their importance in various industrial applications.
In conclusion, Oil Control Valves are indispensable components in many industrial processes, ensuring the efficient and safe operation of systems that rely on oil flow. Understanding the types, applications, and maintenance practices of these valves is essential for optimizing their performance and extending their lifespan. By selecting the right valve and adhering to proper maintenance protocols, you can ensure that your system operates smoothly and reliably, minimizing downtime and maximizing productivity.
