Offline Ups System

In today's fast-paced world, ensuring a reliable power supply is crucial for both residential and commercial settings. One of the most effective solutions for maintaining power continuity is the implementation of an Offline UPS System. This system acts as a safeguard against power outages, voltage fluctuations, and other electrical disturbances, providing a seamless power supply to critical equipment and appliances.

Table of Contents

Understanding Offline UPS Systems

An Offline UPS System, also known as a standby UPS, is designed to provide backup power during power outages. Unlike online UPS systems, which continuously power the connected devices, offline UPS systems only switch to battery power when the main power supply fails. This makes them more cost-effective and energy-efficient for applications where continuous power is not critical.

How Offline UPS Systems Work

An Offline UPS System operates in a straightforward manner. Here’s a step-by-step breakdown of its functionality:

The UPS is connected to the main power supply and the devices that need backup power.
During normal operation, the UPS allows the main power supply to pass through to the connected devices without any interruption.
When a power outage or fluctuation occurs, the UPS detects the issue and switches to battery power within milliseconds.
The battery power is then used to supply electricity to the connected devices until the main power supply is restored.
Once the main power supply is back online, the UPS switches back to the main power and recharges the batteries.

This seamless transition ensures that critical equipment, such as computers, servers, and medical devices, continue to operate without interruption.

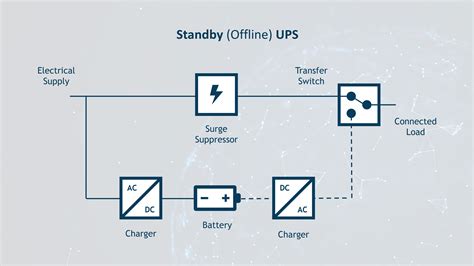

Key Components of an Offline UPS System

An Offline UPS System consists of several key components that work together to provide reliable backup power:

Battery: The primary energy storage unit that provides power during outages.
Inverter: Converts the DC power from the battery to AC power for the connected devices.
Transfer Switch: Detects power outages and switches the power source from the main supply to the battery.
Charger: Recharges the battery when the main power supply is available.
Control Circuit: Manages the overall operation of the UPS, including monitoring battery levels and power conditions.

These components are designed to work efficiently and reliably, ensuring that the UPS system can handle various power disturbances effectively.

Benefits of Using an Offline UPS System

Implementing an Offline UPS System offers numerous benefits, making it a popular choice for both residential and commercial applications:

Cost-Effective: Offline UPS systems are generally more affordable than online UPS systems, making them a budget-friendly option.
Energy-Efficient: Since the UPS only switches to battery power during outages, it consumes less energy compared to online UPS systems.
Reliable Backup: Provides a reliable power supply during outages, protecting critical equipment from data loss and damage.
Easy to Install: Offline UPS systems are straightforward to install and maintain, requiring minimal technical expertise.
Versatile: Suitable for a wide range of applications, including home offices, small businesses, and industrial settings.

These benefits make the Offline UPS System an ideal solution for ensuring power continuity in various environments.

Applications of Offline UPS Systems

Offline UPS systems are used in a variety of settings where reliable power supply is essential. Some of the most common applications include:

Home Offices: Protects computers, routers, and other essential equipment from power outages.
Small Businesses: Ensures that critical business operations, such as point-of-sale systems and servers, remain functional during power disruptions.
Industrial Settings: Provides backup power for machinery and control systems, preventing downtime and potential damage.
Medical Facilities: Supports life-saving equipment and ensures continuous operation of critical medical devices.
Data Centers: Protects servers and storage systems from power outages, ensuring data integrity and availability.

In each of these applications, the Offline UPS System plays a crucial role in maintaining operational continuity and protecting valuable equipment.

Choosing the Right Offline UPS System

Selecting the appropriate Offline UPS System depends on several factors, including power requirements, runtime needs, and budget constraints. Here are some key considerations to keep in mind:

Power Capacity: Determine the total power consumption of the devices you need to protect and choose a UPS with sufficient capacity.
Runtime: Consider how long you need the UPS to provide backup power during an outage. Longer runtime requirements may necessitate additional batteries.
Battery Type: Choose between sealed lead-acid (SLA) batteries and lithium-ion batteries based on your specific needs and budget.
Features: Look for additional features such as surge protection, automatic voltage regulation, and remote monitoring capabilities.
Budget: Set a budget and compare different UPS models to find the best value for your money.

By carefully considering these factors, you can select an Offline UPS System that meets your specific needs and provides reliable backup power.

Installation and Maintenance of Offline UPS Systems

Proper installation and regular maintenance are essential for ensuring the optimal performance of an Offline UPS System. Here are some steps to follow:

Installation:
- Choose a suitable location for the UPS, preferably near the devices it will protect.
- Connect the UPS to the main power supply and the devices you want to protect.
- Follow the manufacturer’s instructions for initial setup and configuration.
Maintenance:
- Regularly check the battery status and replace batteries as needed.
- Perform routine inspections to ensure all components are functioning correctly.
- Keep the UPS in a cool, dry place to prolong its lifespan.

By following these steps, you can ensure that your Offline UPS System remains reliable and effective over time.

🔧 Note: Always refer to the manufacturer’s guidelines for specific installation and maintenance instructions.

Common Issues and Troubleshooting

While Offline UPS Systems are generally reliable, they can encounter issues that require troubleshooting. Here are some common problems and their solutions:

Issue	Possible Cause	Solution
UPS does not turn on	Power supply issue or faulty UPS	Check the power supply and connections. If the issue persists, contact the manufacturer for support.
Battery not charging	Faulty battery or charger	Replace the battery or charger and test the UPS again.
UPS switches to battery mode frequently	Power fluctuations or unstable power supply	Install a voltage stabilizer or consider an online UPS system for more stable power conditions.
UPS beeps continuously	Low battery or overloaded UPS	Check the battery level and reduce the load on the UPS if necessary.

Addressing these issues promptly can help maintain the reliability and performance of your Offline UPS System.

🛠️ Note: Regular maintenance and timely troubleshooting can extend the lifespan of your UPS and ensure it performs optimally during power outages.

In conclusion, an Offline UPS System is a vital investment for ensuring power continuity in various settings. By understanding how these systems work, their benefits, and proper installation and maintenance practices, you can protect your critical equipment and maintain operational continuity during power disruptions. Whether for home offices, small businesses, or industrial applications, an Offline UPS System provides a cost-effective and reliable solution for backup power needs.
