Od And Absorbance

Understanding the relationship between optical density (OD) and absorbance is crucial for anyone working in fields such as biology, chemistry, and environmental science. Optical density, often abbreviated as OD, is a measure of the amount of light that is absorbed by a substance. It is directly related to the concentration of the substance in a solution. Absorbance, on the other hand, is a logarithmic measure of the amount of light absorbed by a substance. Both OD and absorbance are fundamental concepts in spectrophotometry, a technique used to quantify the concentration of a substance in a solution.

Table of Contents

Understanding Optical Density (OD)

Optical density, or OD, is a measure of the amount of light that is absorbed by a substance. It is defined as the logarithm of the ratio of the intensity of incident light to the intensity of transmitted light. In simpler terms, it is a measure of how much light is absorbed by a substance as it passes through a solution. The higher the OD value, the more light is absorbed, and the more concentrated the substance is in the solution.

OD is often used in microbiology to measure the growth of bacterial cultures. By measuring the OD of a bacterial culture at a specific wavelength, scientists can determine the concentration of bacteria in the culture. This is because the amount of light absorbed by the bacteria is directly proportional to the number of bacteria present.

Understanding Absorbance

Absorbance is a logarithmic measure of the amount of light absorbed by a substance. It is defined as the logarithm of the ratio of the intensity of incident light to the intensity of transmitted light. Absorbance is a dimensionless quantity, meaning it has no units. It is often denoted by the symbol A.

Absorbance is directly related to the concentration of a substance in a solution. This relationship is described by the Beer-Lambert law, which states that the absorbance of a solution is directly proportional to the concentration of the absorbing species and the path length of the light through the solution. The Beer-Lambert law is expressed mathematically as:

A = ε * l * c

Where:

A is the absorbance
ε is the molar absorptivity (a constant specific to the substance and the wavelength of light)
l is the path length of the light through the solution
c is the concentration of the substance

Absorbance is often used in chemistry to quantify the concentration of a substance in a solution. By measuring the absorbance of a solution at a specific wavelength, chemists can determine the concentration of the substance in the solution.

Relationship Between OD and Absorbance

Optical density and absorbance are closely related concepts. In fact, they are often used interchangeably in scientific literature. However, it is important to note that OD is a more general term that can refer to any measure of light absorption, while absorbance is a specific measure that is defined by the Beer-Lambert law.

In practice, OD and absorbance are often measured using the same instrument, a spectrophotometer. A spectrophotometer measures the amount of light that is absorbed by a substance as it passes through a solution. The instrument shines a beam of light through the solution and measures the intensity of the transmitted light. The OD or absorbance of the solution is then calculated based on the intensity of the incident and transmitted light.

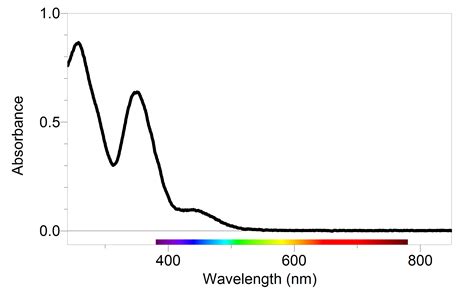

When using a spectrophotometer to measure OD or absorbance, it is important to choose the correct wavelength of light. Different substances absorb light at different wavelengths, so the wavelength chosen will depend on the substance being measured. For example, nucleic acids absorb light at 260 nm, while proteins absorb light at 280 nm.

Applications of OD and Absorbance

OD and absorbance have a wide range of applications in various fields of science. Some of the most common applications include:

Microbiology: OD is often used to measure the growth of bacterial cultures. By measuring the OD of a culture at a specific wavelength, scientists can determine the concentration of bacteria in the culture.

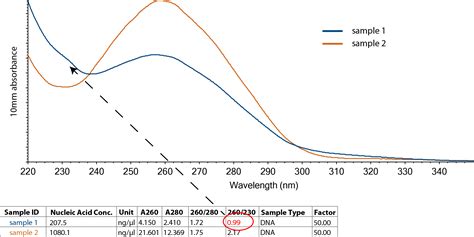

Biochemistry: Absorbance is used to quantify the concentration of proteins, nucleic acids, and other biomolecules in solution. This is often done using the Beer-Lambert law.
Environmental Science: OD and absorbance are used to measure the concentration of pollutants in water and air. For example, the concentration of dissolved organic matter in water can be measured using OD at 254 nm.
Pharmaceuticals: OD and absorbance are used to quantify the concentration of drugs in pharmaceutical formulations. This is important for ensuring the quality and efficacy of pharmaceutical products.

Factors Affecting OD and Absorbance

Several factors can affect the measurement of OD and absorbance. Some of the most important factors include:

Concentration: The concentration of the substance in the solution directly affects the OD and absorbance. As the concentration increases, so does the OD and absorbance.
Path Length: The path length of the light through the solution also affects the OD and absorbance. As the path length increases, so does the OD and absorbance.
Wavelength: The wavelength of the light used to measure the OD and absorbance can also affect the measurement. Different substances absorb light at different wavelengths, so it is important to choose the correct wavelength.
Temperature: The temperature of the solution can also affect the OD and absorbance. Changes in temperature can cause changes in the absorption spectrum of a substance.
pH: The pH of the solution can also affect the OD and absorbance. Changes in pH can cause changes in the ionization state of a substance, which can affect its absorption spectrum.

It is important to control these factors when measuring OD and absorbance to ensure accurate and reproducible results.

Calculating OD and Absorbance

OD and absorbance can be calculated using the following formula:

A = log(I0/I)

Where:

A is the absorbance
I0 is the intensity of the incident light
I is the intensity of the transmitted light

To calculate the OD or absorbance of a solution, follow these steps:

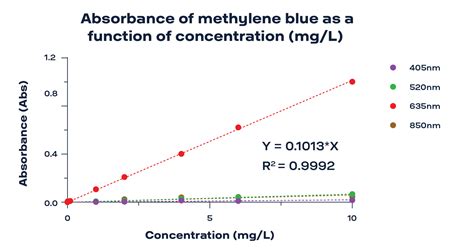

Prepare a standard curve using solutions of known concentration. Measure the OD or absorbance of each standard solution at the desired wavelength.
Plot the OD or absorbance of each standard solution against its concentration. This will give you a standard curve.
Measure the OD or absorbance of the unknown solution at the same wavelength.
Use the standard curve to determine the concentration of the unknown solution.

📝 Note: It is important to use the same wavelength and path length for all measurements to ensure accurate results.

Interpreting OD and Absorbance Data

Interpreting OD and absorbance data requires an understanding of the factors that can affect these measurements. Here are some tips for interpreting OD and absorbance data:

Check the Standard Curve: Always check the standard curve to ensure that it is linear and that the measurements fall within the linear range. If the measurements fall outside the linear range, the results may not be accurate.
Consider the Wavelength: Make sure that the wavelength used for the measurement is appropriate for the substance being measured. Different substances absorb light at different wavelengths.
Control for Interferences: Be aware of potential interferences that can affect the measurement. For example, turbidity in a solution can cause scattering of light, which can affect the OD and absorbance measurement.
Repeat Measurements: Always repeat measurements to ensure reproducibility. If the measurements are not reproducible, there may be a problem with the instrument or the sample.

Common Mistakes in Measuring OD and Absorbance

Measuring OD and absorbance can be challenging, and there are several common mistakes that can lead to inaccurate results. Some of the most common mistakes include:

Incorrect Wavelength: Using the wrong wavelength can lead to inaccurate measurements. Always make sure to use the correct wavelength for the substance being measured.
Incorrect Path Length: Using the wrong path length can also lead to inaccurate measurements. Always make sure to use the correct path length for the measurement.
Contamination: Contamination of the sample or the cuvette can lead to inaccurate measurements. Always make sure to use clean samples and cuvettes.
Incorrect Calibration: Incorrect calibration of the spectrophotometer can lead to inaccurate measurements. Always make sure to calibrate the instrument according to the manufacturer's instructions.

📝 Note: Regular maintenance and calibration of the spectrophotometer are essential for accurate and reproducible measurements.

Advanced Techniques in OD and Absorbance Measurement

In addition to the basic techniques described above, there are several advanced techniques that can be used to measure OD and absorbance. Some of these techniques include:

Dual-Wavelength Spectrophotometry: This technique involves measuring the OD or absorbance at two different wavelengths simultaneously. This can be useful for measuring the concentration of two different substances in the same solution.
Kinetic Measurements: This technique involves measuring the OD or absorbance of a solution over time. This can be useful for studying the kinetics of a chemical reaction or the growth of a bacterial culture.
Multicomponent Analysis: This technique involves measuring the OD or absorbance of a solution at multiple wavelengths and using mathematical algorithms to determine the concentration of multiple substances in the solution.

These advanced techniques can provide more detailed and accurate information about the composition and behavior of a solution.

Troubleshooting OD and Absorbance Measurements

If you encounter problems with OD and absorbance measurements, here are some troubleshooting tips:

Check the Instrument: Make sure that the spectrophotometer is functioning properly and is calibrated correctly.
Check the Sample: Make sure that the sample is clean and free of contaminants. Check the concentration and pH of the sample to ensure that they are within the appropriate range.
Check the Cuvette: Make sure that the cuvette is clean and free of scratches or fingerprints. Check that the cuvette is properly aligned in the spectrophotometer.
Check the Wavelength: Make sure that the correct wavelength is being used for the measurement. Check that the wavelength is set correctly on the spectrophotometer.
Check the Path Length: Make sure that the correct path length is being used for the measurement. Check that the path length is set correctly on the spectrophotometer.

If you are still having problems, consult the manufacturer's instructions or seek help from a qualified technician.

📝 Note: Regular maintenance and calibration of the spectrophotometer are essential for accurate and reproducible measurements.

Safety Considerations

When working with OD and absorbance measurements, it is important to follow safety guidelines to protect yourself and others. Some important safety considerations include:

Wear Protective Gear: Always wear appropriate protective gear, such as gloves and safety glasses, when handling chemicals and operating the spectrophotometer.
Handle Chemicals Safely: Always handle chemicals according to the manufacturer's instructions. Use fume hoods and other safety equipment as needed.
Dispose of Waste Properly: Dispose of chemical waste according to local regulations and guidelines. Never pour chemicals down the drain or into the environment.
Follow Laboratory Protocols: Always follow laboratory protocols and safety guidelines. If you are unsure about a procedure, consult with a qualified technician or supervisor.

By following these safety guidelines, you can ensure a safe and productive working environment.

In conclusion, understanding the relationship between optical density (OD) and absorbance is essential for accurate and reliable measurements in various scientific fields. By following the guidelines and techniques outlined in this post, you can ensure accurate and reproducible OD and absorbance measurements. Whether you are working in microbiology, biochemistry, environmental science, or pharmaceuticals, a solid understanding of OD and absorbance will help you achieve your research goals.
