Objective Lens Microscope

Exploring the microscopic world has always been a fascinating endeavor for scientists, students, and enthusiasts alike. The objective lens microscope is a fundamental tool in this exploration, offering unparalleled magnification and clarity. This post delves into the intricacies of the objective lens microscope, its components, types, and applications, providing a comprehensive guide for anyone interested in the microscopic realm.

Understanding the Objective Lens Microscope

The objective lens microscope is a type of optical microscope that uses a series of lenses to magnify images of small objects. The objective lens, located at the bottom of the microscope, is the primary lens responsible for the initial magnification of the specimen. This lens works in conjunction with the eyepiece lens to produce a highly magnified image.

Components of an Objective Lens Microscope

An objective lens microscope consists of several key components, each playing a crucial role in the magnification and clarity of the image. These components include:

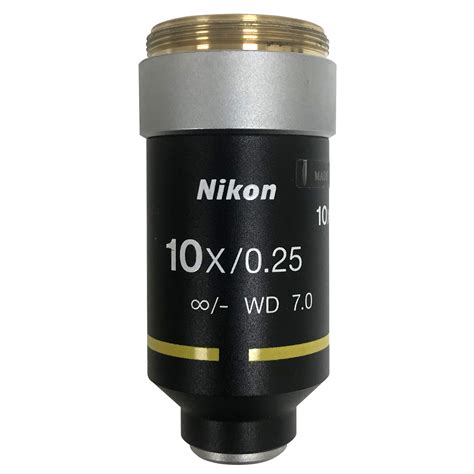

• Objective Lens: The primary lens that magnifies the specimen. It is typically located at the bottom of the microscope and comes in various magnification powers.
• Eyepiece Lens: Also known as the ocular lens, it is the lens that you look through to view the magnified image. It usually provides an additional 10x magnification.
• Stage: The flat platform where the specimen is placed for viewing. It often has clips to hold the slide in place.
• Illuminator: The light source that illuminates the specimen. It can be a mirror or an electric light.
• Condenser Lens: A lens system that focuses light onto the specimen, enhancing the image quality.
• Diaphragm or Iris: A device that controls the amount of light reaching the specimen, helping to adjust the contrast and brightness.
• Focus Knobs: Knobs used to adjust the focus of the microscope, ensuring a clear image.

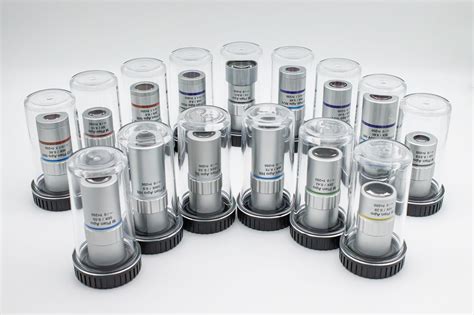

Types of Objective Lenses

Objective lenses come in various types, each designed for specific applications and magnification levels. The most common types include:

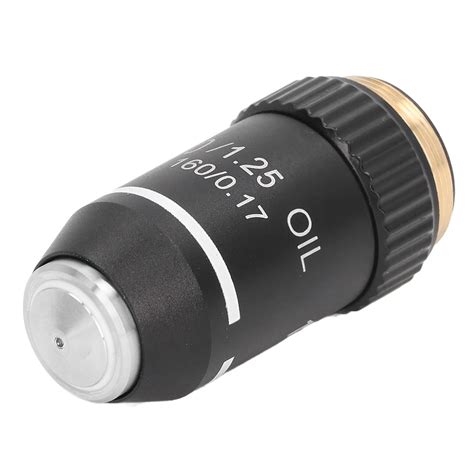

• Achromatic Lenses: These lenses correct for chromatic aberration, providing clearer images with reduced color fringes. They are suitable for general-purpose microscopy.
• Plan Achromatic Lenses: These lenses offer both chromatic and spherical aberration correction, providing a flat field of view. They are ideal for photomicrography and detailed observations.
• Fluorite Lenses: These lenses use fluorite crystals to correct for chromatic aberration, offering superior image quality. They are often used in high-end microscopes.
• Apochromatic Lenses: These lenses correct for both chromatic and spherical aberrations across a broader spectrum of light, providing the highest image quality. They are used in advanced research and professional applications.

Magnification and Resolution

The magnification power of an objective lens microscope is determined by the combination of the objective lens and the eyepiece lens. The total magnification is calculated by multiplying the magnification of the objective lens by the magnification of the eyepiece lens. For example, a 40x objective lens used with a 10x eyepiece lens provides a total magnification of 400x.

Resolution, on the other hand, refers to the ability of the microscope to distinguish between two closely spaced points. It is determined by the numerical aperture (NA) of the objective lens and the wavelength of light used. A higher NA and shorter wavelength result in better resolution.

Applications of Objective Lens Microscopes

Objective lens microscopes are used in a wide range of fields, including biology, medicine, materials science, and forensic science. Some of the key applications include:

• Biological Research: Studying cellular structures, tissues, and microorganisms.
• Medical Diagnostics: Examining blood samples, tissue biopsies, and other medical specimens.
• Materials Science: Analyzing the microstructure of materials, such as metals, ceramics, and polymers.
• Forensic Science: Examining trace evidence, such as fibers, hairs, and particles.
• Education: Teaching students about microscopy and the microscopic world.

Maintaining and Cleaning an Objective Lens Microscope

Proper maintenance and cleaning of an objective lens microscope are essential for ensuring its longevity and optimal performance. Here are some steps to follow:

• Cleaning the Lenses: Use lens paper and a suitable lens cleaning solution to gently clean the objective and eyepiece lenses. Avoid using tissues or cloth that can scratch the lenses.
• Storing the Microscope: Store the microscope in a clean, dry place, away from direct sunlight and dust. Cover it with a dust cover when not in use.
• Handling the Microscope: Handle the microscope with care, avoiding sudden movements or drops. Always use both hands when carrying it.
• Calibrating the Microscope: Regularly calibrate the microscope to ensure accurate measurements and focus.

🔍 Note: Always refer to the manufacturer's guidelines for specific maintenance and cleaning instructions.

Advanced Techniques in Objective Lens Microscopy

In addition to traditional bright-field microscopy, there are several advanced techniques that utilize objective lens microscopes to enhance image quality and provide more detailed information. Some of these techniques include:

• Phase Contrast Microscopy: This technique uses phase plates to convert phase shifts in light passing through a specimen into brightness changes, making transparent specimens visible.
• Differential Interference Contrast (DIC) Microscopy: This technique uses polarized light and a Nomarski prism to enhance the contrast of transparent specimens, revealing detailed structures.
• Fluorescence Microscopy: This technique uses fluorescent dyes or proteins to label specific components of a specimen, allowing for the visualization of cellular structures and processes.
• Confocal Microscopy: This technique uses a laser to scan the specimen point by point, producing high-resolution images with minimal background noise. It is particularly useful for three-dimensional imaging.

Choosing the Right Objective Lens Microscope

Selecting the right objective lens microscope depends on your specific needs and applications. Consider the following factors when choosing a microscope:

• Magnification Range: Determine the magnification range required for your observations. Common ranges include 40x-1000x.
• Resolution: Consider the resolution needed for your applications. Higher numerical aperture (NA) lenses provide better resolution.
• Illumination: Choose a microscope with appropriate illumination for your specimens. Options include bright-field, dark-field, and fluorescence illumination.
• Ease of Use: Ensure the microscope is user-friendly, with features like coarse and fine focus knobs, adjustable stage, and easy-to-use controls.
• Durability: Opt for a microscope with a sturdy construction and high-quality components to ensure longevity.

Here is a table summarizing the key features of different types of objective lenses:

🔍 Note: Always consult with a microscopy expert or supplier to ensure you choose the right microscope for your specific needs.

In conclusion, the objective lens microscope is an indispensable tool for exploring the microscopic world. Its components, types, and applications make it a versatile instrument for various fields, from biology and medicine to materials science and education. Understanding the intricacies of the objective lens microscope and its advanced techniques can enhance your observations and research, providing deeper insights into the microscopic realm. Proper maintenance and cleaning are crucial for ensuring the longevity and optimal performance of the microscope, allowing you to continue exploring the fascinating world of the very small.
