Understanding the Normal Distribution Excel is crucial for anyone working with statistical data. The normal distribution, also known as the Gaussian distribution or bell curve, is a fundamental concept in statistics. It describes a symmetric distribution where most of the data points cluster around the mean, and the probabilities of values decrease as they move away from the mean. Excel, with its powerful data analysis tools, makes it easy to work with normal distributions. This post will guide you through the basics of the normal distribution, how to use Excel to work with it, and some practical applications.
Understanding the Normal Distribution
The normal distribution is characterized by two parameters: the mean (μ) and the standard deviation (σ). The mean is the central tendency of the data, while the standard deviation measures the amount of variation or dispersion. The normal distribution curve is symmetric about the mean, and the area under the curve represents the probability of the data points.
Key properties of the normal distribution include:
- The mean, median, and mode are all equal.
- The curve is symmetric about the mean.
- The total area under the curve is 1.
- The empirical rule (68-95-99.7 rule) states that approximately 68% of the data falls within one standard deviation of the mean, 95% within two standard deviations, and 99.7% within three standard deviations.
Working with Normal Distribution in Excel
Excel provides several functions to work with the normal distribution. These functions allow you to calculate probabilities, percentiles, and other statistical measures. Here are some of the key functions:
NORM.DIST Function
The NORM.DIST function returns the normal cumulative distribution for a specified mean and standard deviation. The syntax is:
NORM.DIST(x, mean, standard_dev, cumulative)
Where:
- x is the value for which you want to calculate the distribution.
- mean is the arithmetic mean of the distribution.
- standard_dev is the standard deviation of the distribution.
- cumulative is a logical value that determines the form of the function. If cumulative is TRUE, NORM.DIST returns the cumulative distribution function; if FALSE, it returns the probability mass function.
Example: To find the probability that a value is less than 1.5 in a normal distribution with a mean of 0 and a standard deviation of 1, you would use:
=NORM.DIST(1.5, 0, 1, TRUE)
NORM.INV Function
The NORM.INV function returns the inverse of the normal cumulative distribution for a specified mean and standard deviation. The syntax is:
NORM.INV(probability, mean, standard_dev)
Where:
- probability is the probability corresponding to the normal distribution.
- mean is the arithmetic mean of the distribution.
- standard_dev is the standard deviation of the distribution.
Example: To find the value below which 95% of the data falls in a normal distribution with a mean of 0 and a standard deviation of 1, you would use:
=NORM.INV(0.95, 0, 1)
NORM.S.DIST Function
The NORM.S.DIST function returns the standard normal cumulative distribution. The syntax is:
NORM.S.DIST(z)
Where:
- z is the value for which you want to calculate the distribution.
Example: To find the probability that a value is less than 1.5 in a standard normal distribution, you would use:
=NORM.S.DIST(1.5)
NORM.S.INV Function
The NORM.S.INV function returns the inverse of the standard normal cumulative distribution. The syntax is:
NORM.S.INV(probability)
Where:
- probability is the probability corresponding to the standard normal distribution.
Example: To find the value below which 95% of the data falls in a standard normal distribution, you would use:
=NORM.S.INV(0.95)
Practical Applications of Normal Distribution in Excel
Understanding and applying the normal distribution in Excel has numerous practical applications. Here are a few examples:
Quality Control
In manufacturing, the normal distribution is used to monitor and control the quality of products. By analyzing the distribution of product measurements, manufacturers can identify deviations from the mean and take corrective actions.
Financial Analysis
In finance, the normal distribution is used to model the returns of investments. By assuming that returns follow a normal distribution, analysts can calculate the probability of different outcomes and make informed investment decisions.
Hypothesis Testing
In statistical hypothesis testing, the normal distribution is used to determine the significance of results. By comparing the sample mean to the population mean, statisticians can determine whether the results are statistically significant.
Data Visualization
Excel's charting tools allow you to visualize the normal distribution. By plotting the data points and overlaying the normal distribution curve, you can gain insights into the data's distribution and identify any outliers.

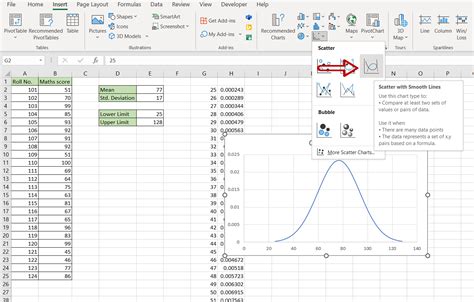

To create a normal distribution chart in Excel, follow these steps:
- Enter your data in a column.
- Go to the "Insert" tab and select "Scatter" chart.
- Right-click on the chart and select "Select Data."
- Add a new series for the normal distribution curve.
- Use the NORM.DIST function to calculate the y-values for the normal distribution curve.
- Format the chart to display the normal distribution curve.
📝 Note: Ensure that your data is normally distributed before applying these functions. Non-normal data may require transformation or different statistical methods.
Example: Calculating Z-Scores
Z-scores are a measure of how many standard deviations a data point is from the mean. They are calculated using the formula:
Z = (X - μ) / σ
Where:
- X is the data point.
- μ is the mean.
- σ is the standard deviation.
In Excel, you can calculate z-scores using the STANDARDIZE function. The syntax is:
STANDARDIZE(x, mean, standard_dev)
Example: To calculate the z-score for a data point of 1.5 in a normal distribution with a mean of 0 and a standard deviation of 1, you would use:
=STANDARDIZE(1.5, 0, 1)
Z-scores are useful for comparing data points from different distributions. By standardizing the data, you can compare the relative positions of data points across different datasets.
Example: Calculating Percentiles
Percentiles are a measure of the relative standing of a data point within a distribution. They indicate the percentage of data points that fall below a given value. In Excel, you can calculate percentiles using the PERCENTILE function. The syntax is:
PERCENTILE(array, k)
Where:
- array is the range of data.
- k is the percentile value (between 0 and 1).
Example: To calculate the 95th percentile of a dataset in cell range A1:A10, you would use:
=PERCENTILE(A1:A10, 0.95)
Percentiles are useful for understanding the distribution of data and identifying outliers. By calculating percentiles, you can determine the relative standing of data points and make informed decisions.
Here is an example of how to calculate percentiles for a dataset:
| Data Point | Percentile |
|---|---|
| 1.2 | =PERCENTILE(A1:A10, 0.2) |
| 2.5 | =PERCENTILE(A1:A10, 0.5) |
| 3.8 | =PERCENTILE(A1:A10, 0.8) |
This table shows the percentiles for different data points in a dataset. By calculating these percentiles, you can gain insights into the distribution of the data and identify any outliers.
📝 Note: Ensure that your data is sorted in ascending order before calculating percentiles. Non-sorted data may result in incorrect percentile values.
Example: Calculating Confidence Intervals
Confidence intervals are a range of values within which the true population parameter is expected to lie with a certain level of confidence. In Excel, you can calculate confidence intervals using the CONFIDENCE function. The syntax is:
CONFIDENCE(alpha, standard_dev, size)
Where:
- alpha is the significance level (e.g., 0.05 for a 95% confidence interval).
- standard_dev is the standard deviation of the population.
- size is the sample size.
Example: To calculate the 95% confidence interval for a sample with a standard deviation of 1 and a sample size of 30, you would use:
=CONFIDENCE(0.05, 1, 30)
Confidence intervals are useful for estimating the population parameter and understanding the uncertainty of the estimate. By calculating confidence intervals, you can make informed decisions based on the data.
Here is an example of how to calculate confidence intervals for different sample sizes:
| Sample Size | Confidence Interval |
|---|---|
| 20 | =CONFIDENCE(0.05, 1, 20) |
| 30 | =CONFIDENCE(0.05, 1, 30) |
| 50 | =CONFIDENCE(0.05, 1, 50) |
This table shows the confidence intervals for different sample sizes. By calculating these intervals, you can gain insights into the uncertainty of the estimates and make informed decisions.
📝 Note: Ensure that your sample size is sufficiently large to calculate accurate confidence intervals. Small sample sizes may result in wide confidence intervals.
In conclusion, the Normal Distribution Excel is a powerful tool for statistical analysis. By understanding the properties of the normal distribution and using Excel’s functions, you can perform a wide range of statistical analyses. Whether you are working in quality control, financial analysis, hypothesis testing, or data visualization, the normal distribution provides valuable insights into your data. By mastering these techniques, you can make informed decisions and gain a deeper understanding of your data.
