Understanding the fundamentals of a Non Inverting Amplifier is crucial for anyone delving into the world of electronics and circuit design. This type of amplifier is a cornerstone in analog electronics, offering a straightforward yet powerful means of amplifying signals. Whether you're a hobbyist, a student, or a professional engineer, grasping the principles and applications of a Non Inverting Amplifier can significantly enhance your ability to design and troubleshoot circuits.
What is a Non Inverting Amplifier?
A Non Inverting Amplifier is a type of operational amplifier (op-amp) configuration where the input signal is applied to the non-inverting input of the op-amp. This configuration is widely used due to its simplicity and effectiveness in amplifying signals without inverting their polarity. The basic structure of a Non Inverting Amplifier includes an op-amp, resistors, and sometimes capacitors, depending on the specific application.
Basic Circuit Configuration

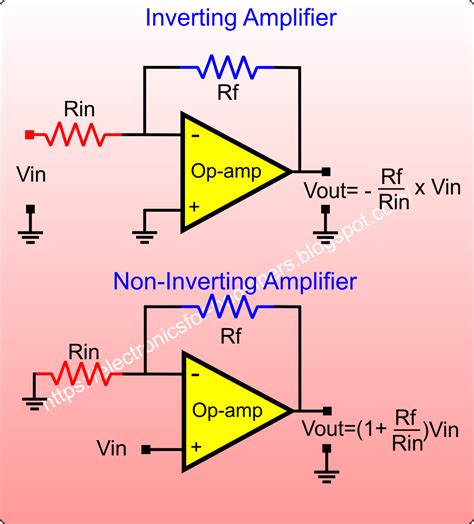

The basic circuit of a Non Inverting Amplifier consists of an op-amp with two resistors. The input signal is connected to the non-inverting input (+) of the op-amp, while the inverting input (-) is connected to a voltage divider network formed by two resistors. The output of the op-amp is fed back to the inverting input through one of these resistors.
Key Components and Their Roles
The key components of a Non Inverting Amplifier circuit are:
- Op-Amp: The operational amplifier is the core component that amplifies the input signal.
- Resistors (R1 and R2): These resistors form a voltage divider network that determines the gain of the amplifier.
- Input Signal: The signal to be amplified is applied to the non-inverting input of the op-amp.
- Output Signal: The amplified signal is obtained from the output of the op-amp.
Gain Calculation
The gain of a Non Inverting Amplifier is determined by the ratio of the feedback resistor (R2) to the input resistor (R1). The formula for the gain (A) is:
A = 1 + (R2 / R1)
This formula shows that the gain can be easily adjusted by changing the values of R1 and R2. For example, if R1 is 1 kΩ and R2 is 9 kΩ, the gain would be:
A = 1 + (9 kΩ / 1 kΩ) = 10
This means the output signal will be 10 times the input signal.
Applications of Non Inverting Amplifiers
Non Inverting Amplifiers are used in a variety of applications due to their simplicity and reliability. Some common applications include:
- Signal Conditioning: Amplifying weak signals to a level suitable for further processing.
- Buffer Amplifiers: Providing high input impedance and low output impedance to isolate stages in a circuit.
- Sensor Interfacing: Amplifying signals from sensors to make them compatible with analog-to-digital converters (ADCs).
- Audio Amplifiers: Amplifying audio signals in various audio equipment.
Design Considerations
When designing a Non Inverting Amplifier, several factors need to be considered to ensure optimal performance:
- Input Impedance: The input impedance of the amplifier should be high to minimize loading effects on the input signal source.
- Output Impedance: The output impedance should be low to ensure that the amplifier can drive the load effectively.
- Frequency Response: The amplifier should have a flat frequency response over the desired range of operation.
- Stability: The circuit should be stable and free from oscillations.
Practical Example
Let’s consider a practical example of designing a Non Inverting Amplifier with a gain of 5. We will use an op-amp with R1 = 1 kΩ and R2 = 4 kΩ.
Using the gain formula:
A = 1 + (R2 / R1) = 1 + (4 kΩ / 1 kΩ) = 5
This means the output signal will be 5 times the input signal.
Here is the circuit configuration:
| Component | Value |
|---|---|
| Op-Amp | Any general-purpose op-amp (e.g., LM741) |
| R1 | 1 kΩ |
| R2 | 4 kΩ |
🔍 Note: Ensure that the power supply voltages are within the operating range of the op-amp to avoid distortion and ensure proper functioning.
Troubleshooting Common Issues
Even with careful design, issues can arise in a Non Inverting Amplifier circuit. Here are some common problems and their solutions:
- No Output: Check the power supply connections and ensure the op-amp is properly powered.
- Distorted Output: Verify that the input signal is within the acceptable range and that the power supply voltages are stable.
- Oscillations: Ensure that the circuit is properly decoupled and that the op-amp has sufficient phase margin.
- Low Gain: Double-check the resistor values and connections to ensure they match the desired gain.
🛠️ Note: Always use high-quality components and follow good PCB design practices to minimize noise and interference.
In summary, the Non Inverting Amplifier is a versatile and essential component in analog electronics. Its simplicity and effectiveness make it a go-to choice for various applications, from signal conditioning to audio amplification. By understanding the basic principles, gain calculation, and design considerations, you can effectively utilize Non Inverting Amplifiers in your projects. Whether you’re a beginner or an experienced engineer, mastering the Non Inverting Amplifier will enhance your circuit design skills and open up new possibilities in electronics.
