Nominal Pipe Size

Understanding the intricacies of plumbing systems is crucial for anyone involved in construction, maintenance, or DIY projects. One of the fundamental concepts in this field is the Nominal Pipe Size (NPS). This measurement system is widely used to specify the size of pipes in various applications, from water supply to gas distribution. This blog post will delve into the details of Nominal Pipe Size, its significance, and how it is used in practical scenarios.

Table of Contents

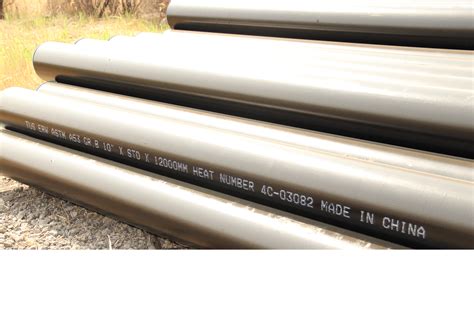

What is Nominal Pipe Size?

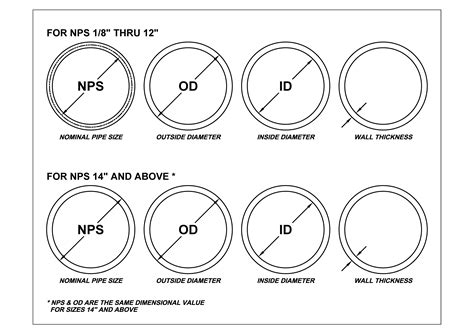

The Nominal Pipe Size (NPS) is a standardized system used to designate the size of pipes. It is important to note that NPS does not directly correspond to the actual outside diameter (OD) or inside diameter (ID) of the pipe. Instead, it is a nominal designation that helps in identifying the pipe size for ordering and installation purposes. The NPS system is particularly useful because it provides a consistent way to refer to pipe sizes across different materials and applications.

History and Development of NPS

The concept of NPS has evolved over time to meet the needs of the plumbing and piping industries. Originally, pipe sizes were based on the actual inside diameter of the pipe. However, as different materials and manufacturing processes were introduced, it became necessary to standardize the naming convention. The NPS system was developed to address this need, providing a uniform way to refer to pipe sizes regardless of the material or manufacturing method.

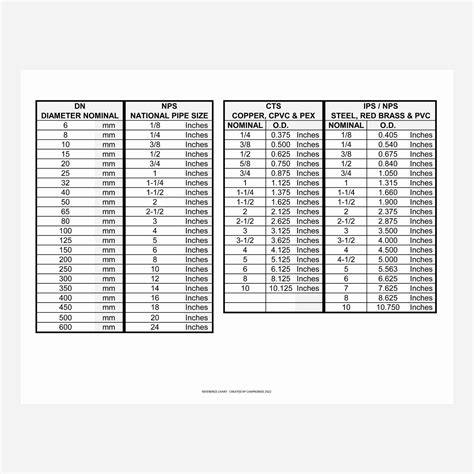

Understanding NPS Designations

NPS designations can be a bit confusing at first, but they follow a logical pattern. For pipes with NPS values up to 12, the NPS number roughly corresponds to the actual inside diameter in inches. For example, an NPS 4 pipe has an inside diameter of approximately 4 inches. However, for pipes with NPS values greater than 12, the NPS number does not directly correspond to the inside diameter. Instead, it is a nominal designation that helps in identifying the pipe size.

It is also important to note that the outside diameter of pipes with NPS values up to 12 is typically 1/8 inch larger than the NPS number. For example, an NPS 4 pipe has an outside diameter of approximately 4.5 inches. This pattern does not hold for pipes with NPS values greater than 12, where the outside diameter is specified separately.

NPS vs. Schedule

In addition to NPS, pipes are also designated by their schedule, which refers to the wall thickness of the pipe. The schedule number is a dimensionless number that indicates the relative wall thickness of the pipe. For example, a Schedule 40 pipe has a thinner wall than a Schedule 80 pipe of the same NPS. The schedule number is important because it affects the pressure rating and flow capacity of the pipe.

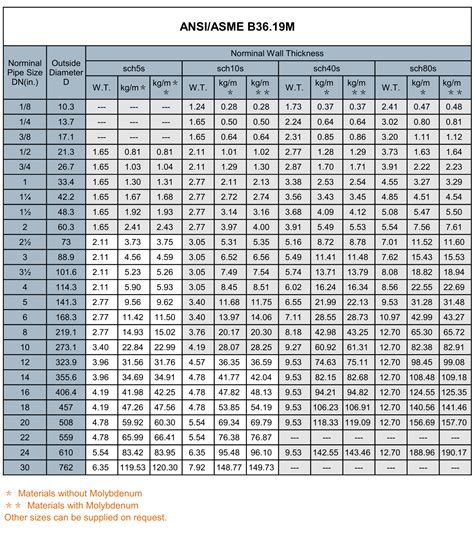

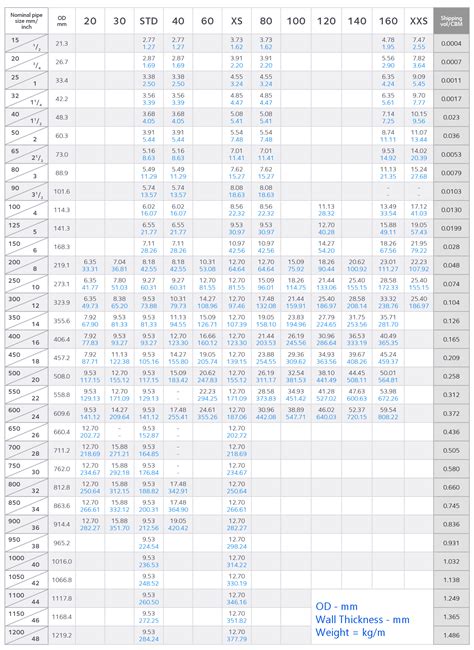

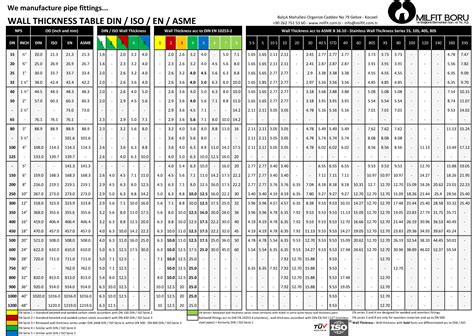

Here is a table that illustrates the relationship between NPS, outside diameter, and wall thickness for Schedule 40 and Schedule 80 pipes:

NPS	Outside Diameter (inches)	Wall Thickness (inches) - Schedule 40	Wall Thickness (inches) - Schedule 80
1/2	0.840	0.065	0.095
3/4	1.050	0.083	0.113
1	1.315	0.109	0.145
1 1/2	1.900	0.140	0.179
2	2.375	0.154	0.218

This table provides a quick reference for the dimensions of common pipe sizes and schedules. It is important to consult the appropriate standards and specifications for the specific application and material.

Applications of NPS

The Nominal Pipe Size system is used in a wide range of applications, including:

Water Supply: NPS is commonly used to specify the size of pipes in water supply systems, including residential, commercial, and industrial applications.
Gas Distribution: NPS is used to designate the size of pipes in gas distribution systems, ensuring proper flow and pressure.
Oil and Gas Industry: NPS is crucial in the oil and gas industry for specifying the size of pipes used in drilling, production, and transportation.
Chemical Processing: NPS is used in chemical processing plants to specify the size of pipes used in various processes.
HVAC Systems: NPS is used to designate the size of pipes in heating, ventilation, and air conditioning (HVAC) systems.

In each of these applications, the correct selection of NPS and schedule is essential for ensuring the proper functioning of the system.

Selecting the Right NPS and Schedule

Selecting the right NPS and schedule for a specific application involves considering several factors, including:

Flow Rate: The required flow rate of the fluid or gas through the pipe.
Pressure: The operating pressure of the system.
Material: The material of the pipe, which can affect its strength and corrosion resistance.
Environmental Conditions: The environmental conditions in which the pipe will be installed, including temperature and exposure to chemicals.

It is important to consult the appropriate standards and specifications for the specific application and material. In some cases, it may be necessary to perform calculations or simulations to determine the optimal NPS and schedule.

🔍 Note: Always refer to the manufacturer's guidelines and industry standards when selecting NPS and schedule for a specific application.

Common Mistakes to Avoid

When working with Nominal Pipe Size, there are several common mistakes to avoid:

Confusing NPS with Actual Diameter: Remember that NPS is a nominal designation and does not directly correspond to the actual inside or outside diameter of the pipe.
Ignoring Schedule: The schedule number is important because it affects the wall thickness and pressure rating of the pipe.
Not Considering Material: Different materials have different strengths and corrosion resistances, which can affect the selection of NPS and schedule.
Overlooking Environmental Conditions: The environmental conditions in which the pipe will be installed can affect its performance and longevity.

By avoiding these common mistakes, you can ensure the proper selection and installation of pipes for your specific application.

In addition to the common mistakes, it is important to consider the specific requirements of the application and consult the appropriate standards and specifications. This will help ensure that the selected NPS and schedule meet the needs of the system and provide reliable performance over time.

When working with NPS, it is also important to consider the compatibility of fittings and connectors. Different materials and sizes may require specific fittings to ensure a proper seal and connection. Consulting the manufacturer's guidelines and industry standards can help ensure the correct selection of fittings and connectors for your specific application.

Finally, it is important to consider the installation and maintenance requirements of the pipe system. Proper installation techniques and regular maintenance can help ensure the longevity and reliability of the system. Consulting the manufacturer's guidelines and industry standards can provide valuable information on installation and maintenance best practices.

By considering these factors and avoiding common mistakes, you can ensure the proper selection, installation, and maintenance of pipes for your specific application.

In conclusion, understanding the Nominal Pipe Size system is essential for anyone involved in plumbing, piping, or related fields. By knowing the basics of NPS, its applications, and how to select the right size and schedule, you can ensure the proper functioning and longevity of your pipe systems. Whether you are working on a residential water supply system, a commercial gas distribution network, or an industrial chemical processing plant, the correct selection of NPS and schedule is crucial for success. Always consult the appropriate standards and specifications for your specific application and material to ensure the best results.
