Nh3 Lewis Structure

Understanding the NH3 Lewis Structure is fundamental for anyone studying chemistry, as it provides insights into the bonding and molecular geometry of ammonia. This structure helps us comprehend the properties and behavior of ammonia in various chemical reactions. Let's delve into the details of the NH3 Lewis Structure, its significance, and how to draw it step-by-step.

Table of Contents

What is the NH3 Lewis Structure?

The NH3 Lewis Structure represents the arrangement of valence electrons in an ammonia molecule. Ammonia (NH3) consists of one nitrogen atom and three hydrogen atoms. The Lewis Structure helps visualize how these atoms are bonded and how the electrons are distributed around them.

Importance of the NH3 Lewis Structure

The NH3 Lewis Structure is crucial for several reasons:

It helps in understanding the bonding between nitrogen and hydrogen atoms.
It explains the molecular geometry of ammonia, which is pyramidal.
It aids in predicting the reactivity and properties of ammonia in chemical reactions.
It provides a foundation for more complex chemical concepts, such as hybridization and molecular orbitals.

Drawing the NH3 Lewis Structure

Drawing the NH3 Lewis Structure involves several steps. Here’s a detailed guide:

Step 1: Determine the Total Number of Valence Electrons

First, identify the total number of valence electrons in the molecule. Nitrogen (N) has 5 valence electrons, and each hydrogen (H) has 1 valence electron. Since there are three hydrogen atoms, the total number of valence electrons is:

5 (from N) + 3 × 1 (from H) = 8 valence electrons.

Step 2: Choose the Central Atom

In the NH3 molecule, nitrogen is the central atom because it is the least electronegative and can form bonds with multiple hydrogen atoms.

Step 3: Connect the Atoms with Single Bonds

Draw single bonds between the central nitrogen atom and each of the three hydrogen atoms. This uses up 6 of the 8 valence electrons (2 electrons per bond).

Step 4: Distribute the Remaining Electrons

After forming the single bonds, 2 valence electrons remain. These electrons are placed as a lone pair on the nitrogen atom.

Step 5: Verify the Octet Rule

The octet rule states that atoms tend to have 8 valence electrons in their outer shell to achieve stability. In the NH3 Lewis Structure, nitrogen has 5 valence electrons from its own and 3 from the hydrogen atoms, making a total of 8 electrons around nitrogen. This satisfies the octet rule for nitrogen.

Step 6: Determine the Molecular Geometry

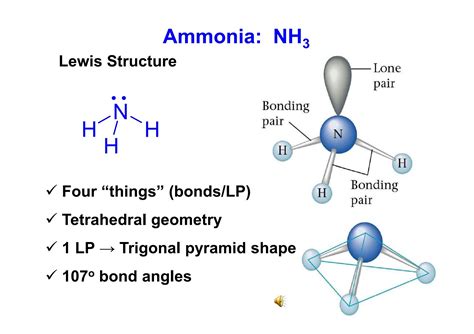

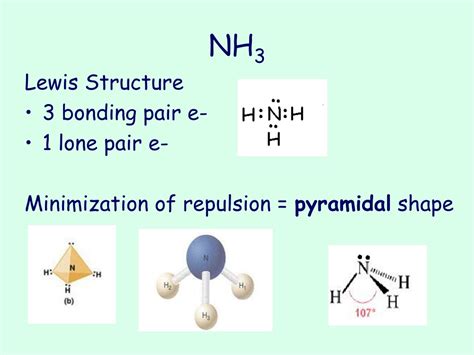

The molecular geometry of NH3 is pyramidal. The lone pair of electrons on the nitrogen atom repels the bonding pairs, causing the hydrogen atoms to be positioned at the vertices of a triangular pyramid with the nitrogen atom at the apex.

💡 Note: The presence of the lone pair on the nitrogen atom affects the bond angles, making them slightly less than the ideal 109.5° for a tetrahedral geometry.

Electron Geometry vs. Molecular Geometry

It’s important to distinguish between electron geometry and molecular geometry:

Electron Geometry: This refers to the arrangement of all electron pairs (both bonding and non-bonding) around the central atom. For NH3, the electron geometry is tetrahedral because there are four electron pairs around the nitrogen atom (three bonding pairs and one lone pair).
Molecular Geometry: This refers to the arrangement of the atoms in the molecule, excluding the lone pairs. For NH3, the molecular geometry is pyramidal due to the presence of the lone pair on the nitrogen atom.

Formal Charge Calculation

Formal charge is a concept used to determine the most stable Lewis Structure. It is calculated using the formula:

Formal Charge = (Number of valence electrons in free atom) - (Number of lone pair electrons) - (Number of bonding electrons / 2)

For the nitrogen atom in NH3:

Formal Charge (N) = 5 - 2 - (6 / 2) = 0

For each hydrogen atom:

Formal Charge (H) = 1 - 0 - (2 / 2) = 0

Since all atoms have a formal charge of 0, the NH3 Lewis Structure is stable and correctly represents the molecule.

Resonance Structures

Resonance structures are different Lewis Structures of a molecule that differ only in the position of electrons. For NH3, there are no resonance structures because the lone pair on the nitrogen atom does not delocalize over multiple atoms. The single Lewis Structure adequately represents the molecule.

Hybridization in NH3

Hybridization is the concept of mixing atomic orbitals to form new hybrid orbitals suitable for bonding. In NH3, the nitrogen atom undergoes sp3 hybridization. This means one s orbital and three p orbitals of the nitrogen atom mix to form four sp3 hybrid orbitals. Three of these hybrid orbitals form sigma bonds with the hydrogen atoms, and the fourth contains the lone pair of electrons.

Bond Angles in NH3

The bond angles in NH3 are slightly less than the ideal tetrahedral angle of 109.5°. This is due to the presence of the lone pair on the nitrogen atom, which repels the bonding pairs more strongly than the bonding pairs repel each other. The actual bond angles in NH3 are approximately 107°.

Properties of NH3

Understanding the NH3 Lewis Structure helps explain several properties of ammonia:

Basic Nature: Ammonia is a base because the lone pair of electrons on the nitrogen atom can accept a proton (H+), forming the ammonium ion (NH4+).
Solubility: Ammonia is highly soluble in water due to hydrogen bonding between the nitrogen atom’s lone pair and water molecules.
Reactivity: Ammonia can act as a nucleophile in reactions, donating its lone pair of electrons to form new bonds.

Applications of NH3

Ammonia has numerous applications in various industries:

Fertilizers: Ammonia is a key component in the production of nitrogen-based fertilizers, which are essential for agriculture.
Refrigerants: Ammonia is used as a refrigerant in industrial cooling systems due to its efficient heat transfer properties.
Cleaning Agents: Ammonia is a common ingredient in household cleaning products because of its ability to dissolve grease and grime.
Chemical Synthesis: Ammonia is used in the synthesis of various chemicals, including explosives, pharmaceuticals, and plastics.

Safety Considerations

While ammonia has many useful applications, it is also a hazardous substance. Some safety considerations include:

Ammonia is a corrosive gas that can cause severe burns and respiratory issues if inhaled.
It has a strong, pungent odor that can be detected at low concentrations, but prolonged exposure can lead to olfactory fatigue, making it difficult to detect.
Ammonia solutions should be handled with care, using appropriate personal protective equipment (PPE) such as gloves, goggles, and lab coats.

🛑 Note: In case of ammonia exposure, immediately move to fresh air and seek medical attention if symptoms persist.

Environmental Impact

Ammonia can have significant environmental impacts:

Excessive use of ammonia-based fertilizers can lead to nutrient pollution in water bodies, causing eutrophication and harming aquatic life.
Ammonia emissions from industrial processes can contribute to air pollution and the formation of particulate matter.
Proper management and regulation of ammonia use are essential to minimize its environmental impact.

Ammonia is a versatile and important chemical with a wide range of applications. Understanding the NH3 Lewis Structure provides valuable insights into its properties, reactivity, and behavior. By grasping the fundamentals of the NH3 Lewis Structure, one can better appreciate the role of ammonia in chemistry and its various applications in industry and everyday life.
