Understanding the importance of safety in handling hazardous materials is crucial for industries and individuals alike. One of the key tools used to communicate the hazards of chemicals is the Nfpa 704 Placard. This system provides a standardized way to identify the health, flammability, instability, and special hazards of substances, ensuring that everyone can quickly understand the risks involved.
What is an Nfpa 704 Placard?

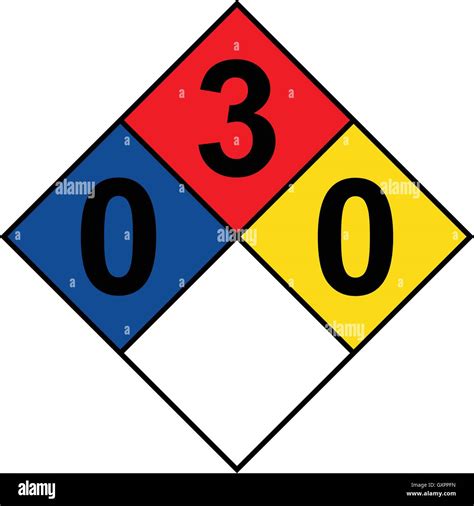

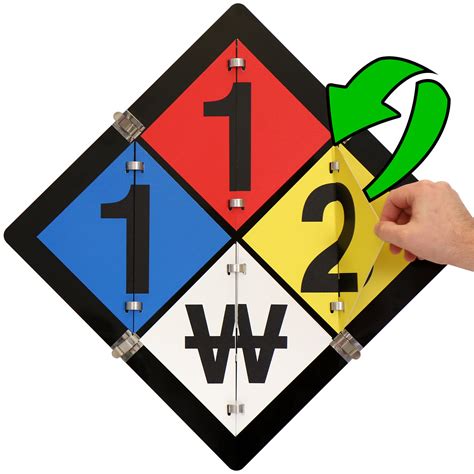

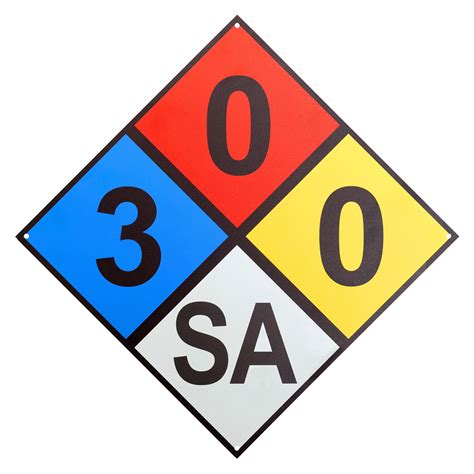

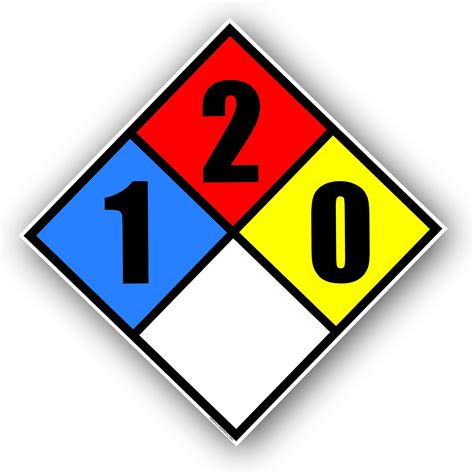

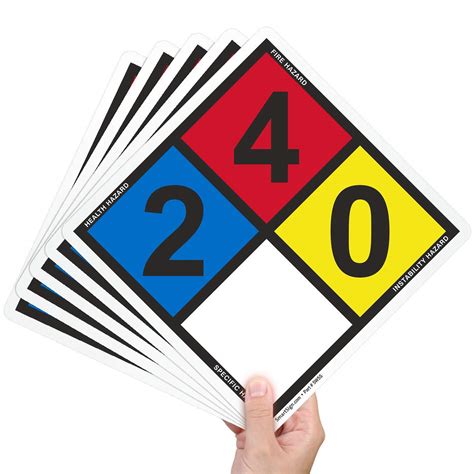

The Nfpa 704 Placard is a diamond-shaped sign used to quickly convey the hazards of a material. Developed by the National Fire Protection Association (NFPA), this system is widely recognized and used in various industries, including manufacturing, transportation, and storage. The placard is divided into four colored sections, each representing a different type of hazard:
- Red: Flammability
- Blue: Health
- Yellow: Instability
- White: Special Hazards
Each section contains a number from 0 to 4, with 0 indicating no hazard and 4 indicating severe hazard. This simple yet effective system allows responders to quickly assess the risks and take appropriate actions.

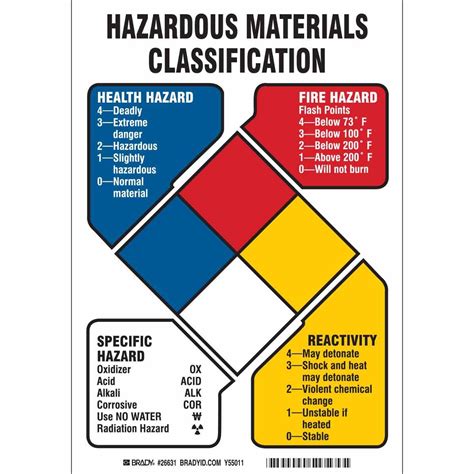

Understanding the Nfpa 704 Placard Sections
The Nfpa 704 Placard is designed to be easily understood at a glance. Here’s a breakdown of each section:
Red Section: Flammability
The red section indicates the flammability of the material. This is crucial for firefighters and emergency responders who need to know how quickly a substance can catch fire and how it will behave in a fire. The ratings are as follows:
- 0: Will not burn
- 1: Must be preheated before ignition can occur
- 2: Must be moderately heated or exposed to relatively high ambient temperature before ignition can occur
- 3: Can be ignited under almost all ambient temperature conditions
- 4: Will rapidly or completely vaporize at atmospheric pressure and normal ambient temperature, or is readily dispersed in air and will burn readily
Blue Section: Health
The blue section indicates the health hazards associated with the material. This includes toxicity, irritation, and other health risks. The ratings are:
- 0: No unusual hazard
- 1: Slightly hazardous
- 2: Hazardous—intense or continued but not chronic exposure could cause temporary incapacitation or possible residual injury
- 3: Extremely hazardous—short exposure could cause serious temporary or residual injury
- 4: Extremely hazardous—very short exposure could cause death or major residual injury
Yellow Section: Instability
The yellow section indicates the instability of the material, which refers to its tendency to react, decompose, or detonate. The ratings are:
- 0: Normally stable, even under fire exposure conditions
- 1: Normally stable, but can become unstable at high temperatures and pressures
- 2: Unstable and readily undergoes violent chemical change at elevated temperatures and pressures
- 3: Capable of detonation or explosive decomposition but requires a strong initiating source or must be heated under confinement before initiation
- 4: Readily capable of detonation or explosive decomposition at normal temperatures and pressures
White Section: Special Hazards
The white section indicates special hazards that do not fit into the other categories. These can include oxidizers, water-reactives, and other unique dangers. Common symbols used in this section include:

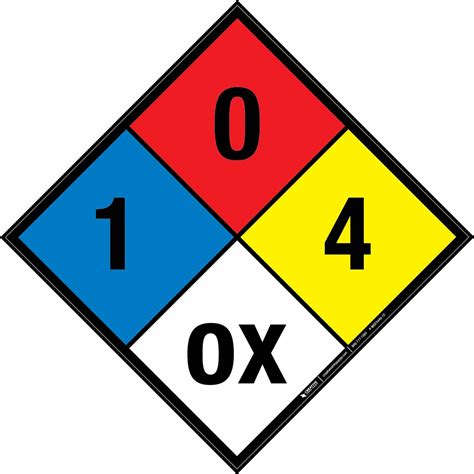

- OX: Oxidizer
- W: Water-reactive
- COR: Corrosive
- CRY: Cryogenic
- RAD: Radioactive
These symbols help to quickly identify materials that require special handling or precautions.
Importance of the Nfpa 704 Placard
The Nfpa 704 Placard plays a vital role in ensuring safety in various settings. Here are some key reasons why it is important:
- Quick Identification: The placard allows for quick identification of hazards, which is crucial in emergency situations.
- Standardized System: The NFPA 704 system is standardized, making it universally understood by emergency responders and industry professionals.
- Preventive Measures: By clearly indicating the hazards, the placard helps in implementing preventive measures to avoid accidents.
- Training and Awareness: The system is widely used in training programs to educate workers about the hazards of different materials.
In summary, the Nfpa 704 Placard is an essential tool for communicating the hazards of chemicals, ensuring safety, and preventing accidents.
How to Read an Nfpa 704 Placard
Reading an Nfpa 704 Placard is straightforward once you understand the system. Here’s a step-by-step guide:
- Identify the Colors: Look at the colors of the sections to determine which hazards are being indicated.
- Check the Numbers: Note the numbers in each section to understand the severity of the hazards.
- Look for Special Symbols: Check the white section for any special hazard symbols.
- Assess the Overall Risk: Combine the information from all sections to assess the overall risk and take appropriate actions.
For example, a placard with a red section rated 3, a blue section rated 2, a yellow section rated 1, and a white section with the symbol "OX" would indicate a material that is highly flammable, moderately hazardous to health, somewhat unstable, and an oxidizer.
📝 Note: Always refer to the Material Safety Data Sheet (MSDS) for detailed information about a substance.
Examples of Nfpa 704 Placards
To better understand the Nfpa 704 Placard, let’s look at a few examples:
Example 1: Acetone
| Section | Color | Rating | Description |
|---|---|---|---|
| Flammability | Red | 3 | Highly flammable |
| Health | Blue | 1 | Slightly hazardous |
| Instability | Yellow | 0 | Normally stable |
| Special Hazards | White | None | No special hazards |
Example 2: Sulfuric Acid
| Section | Color | Rating | Description |
|---|---|---|---|
| Flammability | Red | 0 | Will not burn |
| Health | Blue | 3 | Extremely hazardous |
| Instability | Yellow | 0 | Normally stable |
| Special Hazards | White | COR | Corrosive |
Example 3: Hydrogen Peroxide (30%)
| Section | Color | Rating | Description |
|---|---|---|---|
| Flammability | Red | 1 | Must be preheated before ignition can occur |
| Health | Blue | 2 | Hazardous |
| Instability | Yellow | 3 | Capable of detonation or explosive decomposition |
| Special Hazards | White | OX | Oxidizer |
These examples illustrate how the Nfpa 704 Placard can provide a quick overview of the hazards associated with different materials.
Training and Awareness
Proper training and awareness are essential for effectively using the Nfpa 704 Placard. Here are some key points to consider:
- Regular Training: Ensure that all employees receive regular training on how to read and interpret the placard.
- Visual Aids: Use visual aids and real-life examples to make the training more engaging and effective.
- Practical Exercises: Conduct practical exercises to simulate emergency situations and test the understanding of the placard system.
- Continuous Education: Keep employees updated on any changes or updates to the NFPA 704 system.
By investing in training and awareness, organizations can ensure that their employees are well-prepared to handle hazardous materials safely.
📝 Note: Always follow local regulations and guidelines when handling hazardous materials.
Conclusion
The Nfpa 704 Placard is an indispensable tool for communicating the hazards of chemicals. By providing a standardized and easily understandable system, it helps to ensure safety in various industries. Understanding the different sections of the placard, their meanings, and how to read them is crucial for anyone working with hazardous materials. Regular training and awareness programs can further enhance the effectiveness of this system, making workplaces safer for everyone. The placard’s role in quick identification, standardized communication, preventive measures, and training makes it an essential component of hazard management. By adhering to the guidelines and understanding the placard, organizations can significantly reduce the risks associated with hazardous materials.
