Net Positive Suction Head

Understanding the concept of Net Positive Suction Head (NPSH) is crucial for anyone involved in the design, operation, or maintenance of pumping systems. NPSH is a critical parameter that ensures the efficient and reliable operation of centrifugal pumps. This parameter helps prevent cavitation, a phenomenon that can cause significant damage to pump components and reduce overall system performance.

Table of Contents

What is Net Positive Suction Head?

Net Positive Suction Head (NPSH) is the difference between the total suction head and the vapor pressure head of the liquid being pumped. It is a measure of the absolute pressure at the suction side of the pump, expressed in terms of the height of a column of liquid. NPSH is essential because it indicates the margin of safety against cavitation.

Importance of NPSH in Pumping Systems

Cavitation occurs when the pressure at the suction side of the pump drops below the vapor pressure of the liquid, causing the liquid to vaporize and form bubbles. These bubbles then collapse as they move into higher-pressure areas, creating shock waves that can erode pump impellers and other components. Understanding and maintaining adequate NPSH is vital for the following reasons:

Prevents Cavitation: Ensures that the pressure at the pump suction is high enough to prevent the formation of vapor bubbles.
Protects Pump Components: Reduces wear and tear on pump impellers, seals, and other parts, extending the lifespan of the pump.
Maintains System Efficiency: Helps maintain the pump’s performance and efficiency by avoiding the energy losses associated with cavitation.
Ensures Reliable Operation: Prevents unexpected downtime and maintenance costs by ensuring the pump operates smoothly.

Types of NPSH

There are two primary types of NPSH that are commonly referenced in pumping systems:

NPSH Required (NPSHr): This is the minimum NPSH needed for a pump to operate without cavitation. It is a characteristic of the pump itself and is typically provided by the pump manufacturer.
NPSH Available (NPSHa): This is the NPSH provided by the system in which the pump operates. It depends on factors such as the elevation of the liquid source, the pressure at the suction point, and the friction losses in the suction piping.

Calculating NPSH Available

To ensure that a pumping system operates without cavitation, the NPSHa must be greater than the NPSHr. The calculation of NPSHa involves several factors:

Atmospheric Pressure (Pa): The pressure exerted by the atmosphere at the liquid surface.
Vapor Pressure (Pv): The pressure at which the liquid begins to vaporize.
Static Suction Head (Hs): The vertical distance from the liquid surface to the pump centerline.
Friction Losses (hf): The pressure drop due to friction in the suction piping.
Velocity Head (hv): The kinetic energy of the liquid, which is often negligible in many systems.

The formula for calculating NPSHa is:

NPSHa = Pa - Pv + Hs - hf - hv

Where:

Pa is the atmospheric pressure in terms of the liquid column height.
Pv is the vapor pressure of the liquid in terms of the liquid column height.
Hs is the static suction head.
hf is the friction losses in the suction piping.
hv is the velocity head.

Factors Affecting NPSH

Several factors can influence the NPSH in a pumping system. Understanding these factors is essential for maintaining optimal pump performance:

Liquid Properties: The vapor pressure of the liquid being pumped affects NPSH. Liquids with higher vapor pressures require higher NPSH to prevent cavitation.
System Design: The layout of the suction piping, including its length, diameter, and the number of fittings, can affect friction losses and, consequently, NPSH.
Operating Conditions: Changes in atmospheric pressure, liquid temperature, and flow rate can all impact NPSH.
Pump Characteristics: The design and specifications of the pump, including its impeller type and speed, influence the NPSHr.

Ensuring Adequate NPSH

To ensure that a pumping system has adequate NPSH, several strategies can be employed:

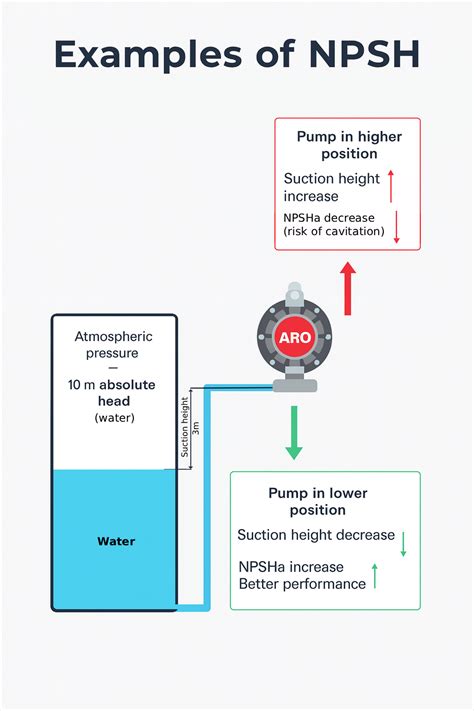

Increase Suction Pressure: Raising the pressure at the suction side of the pump can increase NPSHa. This can be achieved by increasing the elevation of the liquid source or by using a booster pump.
Reduce Friction Losses: Minimizing friction losses in the suction piping can help maintain higher NPSHa. This can be done by using larger diameter pipes, reducing the number of fittings, and ensuring smooth pipe surfaces.
Lower Liquid Temperature: Reducing the temperature of the liquid can lower its vapor pressure, thereby increasing NPSHa.
Select Appropriate Pump: Choosing a pump with a lower NPSHr that is suitable for the application can help ensure that the system has adequate NPSH.

Common Issues and Troubleshooting

Even with careful planning and design, issues related to NPSH can arise. Some common problems and their solutions include:

Cavitation Noise: If you hear a grinding or rattling noise from the pump, it may be experiencing cavitation. Check the NPSHa and ensure it is greater than the NPSHr.
Reduced Flow Rate: A decrease in the flow rate can indicate cavitation. Verify the NPSHa and make necessary adjustments to the system.
Excessive Vibration: Vibration can be a sign of cavitation. Inspect the pump and piping for signs of wear and ensure adequate NPSH.
Pump Overheating: Overheating can occur due to reduced efficiency caused by cavitation. Check the NPSHa and address any issues with the suction side of the pump.

🔍 Note: Regular maintenance and monitoring of the pumping system can help detect and address NPSH-related issues before they cause significant damage.

Case Studies and Examples

To illustrate the importance of NPSH, consider the following case studies:

Industrial Cooling System: In an industrial cooling system, the pump was experiencing frequent cavitation, leading to reduced efficiency and increased maintenance costs. By increasing the suction pressure and reducing friction losses in the piping, the system’s NPSHa was improved, eliminating cavitation and restoring efficient operation.
Water Supply System: A water supply system was experiencing intermittent flow issues due to cavitation. After analyzing the system, it was found that the NPSHa was insufficient. By lowering the liquid temperature and selecting a pump with a lower NPSHr, the system’s performance was significantly improved.

Best Practices for Maintaining NPSH

To ensure the long-term reliability and efficiency of pumping systems, the following best practices should be followed:

Regular Inspections: Conduct regular inspections of the pump and suction piping to detect any signs of wear or damage.
Monitoring Systems: Implement monitoring systems to continuously track NPSHa and other critical parameters.
Proper Maintenance: Perform routine maintenance, including cleaning and replacing worn components, to keep the system in optimal condition.
Training and Education: Provide training for operators and maintenance personnel on the importance of NPSH and how to address related issues.

In conclusion, understanding and maintaining adequate Net Positive Suction Head (NPSH) is essential for the efficient and reliable operation of centrifugal pumps. By ensuring that the NPSHa is greater than the NPSHr, pumping systems can avoid cavitation, protect pump components, and maintain optimal performance. Regular monitoring, maintenance, and adherence to best practices are key to achieving long-term reliability and efficiency in pumping systems.
