In the realm of mechanical engineering, the efficiency and longevity of machinery often hinge on the quality and type of bearings used. Among the various types of bearings available, Needle Roller Bearings stand out due to their unique design and exceptional performance in specific applications. These bearings are characterized by their thin, elongated rollers, which resemble needles, hence the name. This design allows them to support high radial loads while occupying minimal space, making them ideal for applications where space is at a premium.
Understanding Needle Roller Bearings

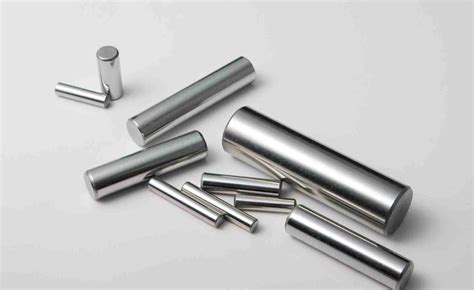

Needle roller bearings are a type of roller bearing that uses long, thin cylindrical rollers. These rollers are much smaller in diameter compared to their length, which allows for a higher load-carrying capacity per unit of cross-sectional area. This makes needle roller bearings particularly suitable for applications where space is limited but high radial loads are present.
Types of Needle Roller Bearings
Needle roller bearings come in various types, each designed to meet specific application requirements. The main types include:

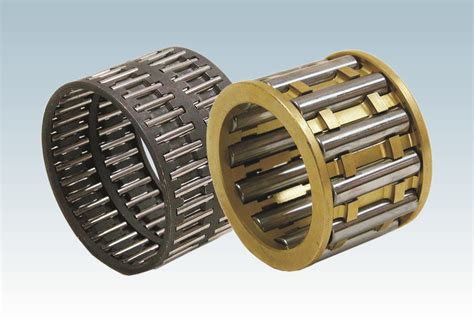

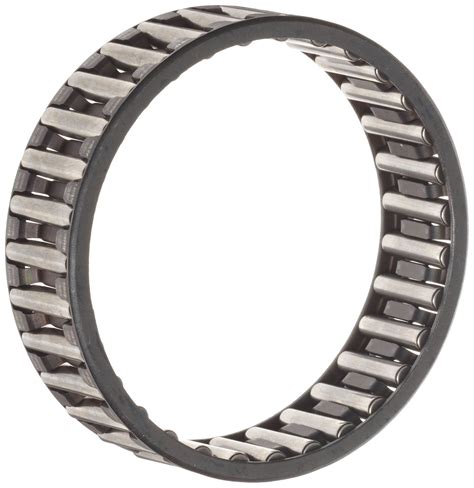

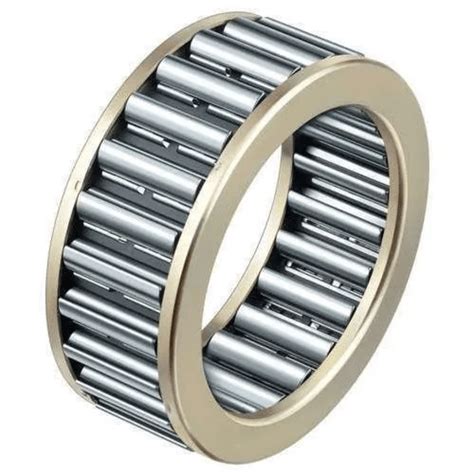

- Caged Needle Roller Bearings: These bearings feature a cage that holds the rollers in place, preventing them from coming into contact with each other. This design reduces friction and wear, making it suitable for high-speed applications.
- Full Complement Needle Roller Bearings: In these bearings, the rollers are in direct contact with each other, maximizing the number of rollers that can fit within the bearing. This design provides higher load-carrying capacity but is less suitable for high-speed applications due to increased friction.

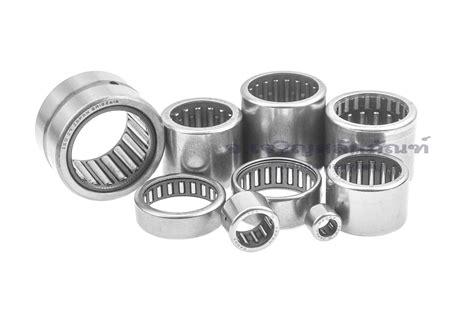

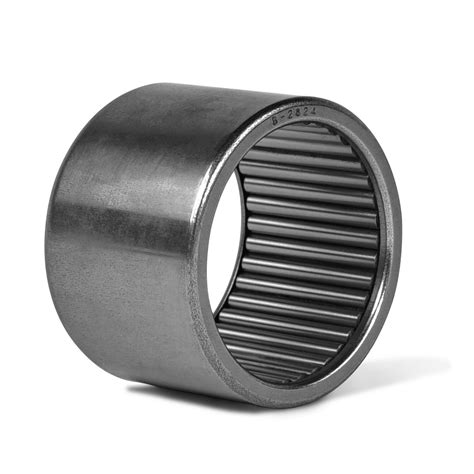

- Drawn Cup Needle Roller Bearings: These bearings have a thin-walled outer ring that is drawn from sheet metal. They are often used in applications where space is extremely limited, such as in automotive transmissions.

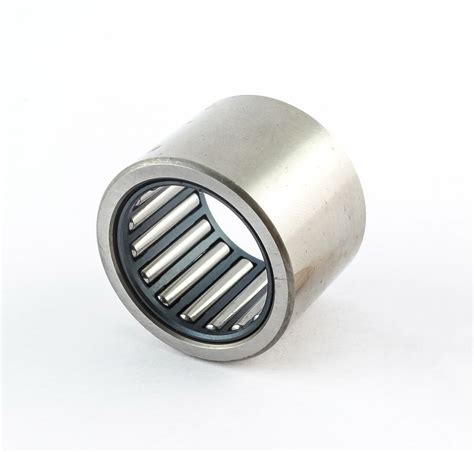

- Machined Needle Roller Bearings: These bearings have a machined outer ring, providing higher precision and load-carrying capacity. They are often used in heavy-duty applications where precision is critical.
Applications of Needle Roller Bearings
Needle roller bearings are used in a wide range of applications across various industries. Some of the most common applications include:
- Automotive Industry: Needle roller bearings are extensively used in automotive transmissions, differentials, and engine components. Their compact size and high load-carrying capacity make them ideal for these applications.
- Aerospace Industry: In aerospace, needle roller bearings are used in landing gear, control systems, and other critical components where space is limited and reliability is paramount.
- Industrial Machinery: Needle roller bearings are used in various industrial machines, including pumps, compressors, and gearboxes. Their ability to handle high radial loads makes them suitable for these demanding applications.
- Power Tools: In power tools, needle roller bearings are used in drills, saws, and other handheld tools. Their compact size and high load-carrying capacity make them ideal for these applications.
Advantages of Needle Roller Bearings
Needle roller bearings offer several advantages that make them a popular choice in many applications. Some of the key advantages include:
- High Load-Carrying Capacity: Due to their unique design, needle roller bearings can support high radial loads while occupying minimal space.
- Compact Size: The thin, elongated rollers allow for a more compact design, making needle roller bearings ideal for applications where space is limited.
- Low Friction: The use of a cage in caged needle roller bearings reduces friction and wear, making them suitable for high-speed applications.
- High Precision: Machined needle roller bearings offer high precision, making them suitable for applications where accuracy is critical.
Selection Criteria for Needle Roller Bearings
Selecting the right type of needle roller bearing for a specific application involves considering several factors. Some of the key selection criteria include:
- Load Requirements: The type and magnitude of the load that the bearing will need to support. This includes both radial and axial loads.
- Speed Requirements: The operating speed of the application. High-speed applications may require caged needle roller bearings to reduce friction and wear.
- Space Constraints: The available space for the bearing. Needle roller bearings are ideal for applications where space is limited.
- Precision Requirements: The level of precision required for the application. Machined needle roller bearings offer higher precision compared to drawn cup bearings.
- Environmental Conditions: The operating environment, including temperature, humidity, and the presence of contaminants. Some needle roller bearings are designed to operate in harsh environments.
When selecting a needle roller bearing, it is important to consider these factors to ensure that the bearing meets the specific requirements of the application. Consulting with a bearing specialist can also help in making the right selection.
🔍 Note: Always refer to the manufacturer's specifications and guidelines when selecting needle roller bearings to ensure compatibility and optimal performance.
Maintenance and Care of Needle Roller Bearings
Proper maintenance and care are essential to ensure the longevity and reliable performance of needle roller bearings. Some key maintenance practices include:
- Lubrication: Regular lubrication is crucial to reduce friction and wear. The type and frequency of lubrication depend on the application and operating conditions.
- Cleaning: Keeping the bearings clean and free from contaminants is important to prevent premature wear and failure. Regular cleaning can help extend the life of the bearings.
- Inspection: Regular inspection of the bearings can help detect any signs of wear or damage early. This allows for timely replacement and prevents unexpected failures.
- Alignment: Proper alignment of the bearings is essential to ensure even load distribution and prevent excessive wear. Misalignment can lead to premature failure of the bearings.
By following these maintenance practices, you can extend the life of your needle roller bearings and ensure reliable performance in your applications.
🛠️ Note: Always follow the manufacturer's recommendations for maintenance and care to ensure optimal performance and longevity of needle roller bearings.
Common Issues with Needle Roller Bearings
Despite their many advantages, needle roller bearings can encounter several issues if not properly maintained or selected. Some common issues include:
- Excessive Wear: This can occur due to inadequate lubrication, misalignment, or overloading. Regular inspection and maintenance can help detect and address excessive wear.
- Contamination: Contaminants such as dirt, dust, and debris can enter the bearing and cause damage. Keeping the bearings clean and using seals can help prevent contamination.
- Corrosion: Exposure to moisture and corrosive environments can lead to corrosion of the bearing components. Using corrosion-resistant materials and proper sealing can help prevent corrosion.
- Misalignment: Misalignment can cause uneven load distribution and excessive wear. Proper alignment during installation is crucial to prevent misalignment issues.
Addressing these issues promptly can help extend the life of your needle roller bearings and ensure reliable performance.
⚠️ Note: Regular inspection and maintenance can help detect and address common issues with needle roller bearings, preventing unexpected failures and downtime.
Future Trends in Needle Roller Bearings
The field of bearing technology is continually evolving, driven by advancements in materials science, manufacturing processes, and application requirements. Some future trends in needle roller bearings include:
- Advanced Materials: The development of new materials with enhanced properties, such as higher strength, better wear resistance, and improved corrosion resistance, can lead to more durable and reliable needle roller bearings.
- Smart Bearings: The integration of sensors and IoT technology into bearings can enable real-time monitoring of bearing performance, allowing for predictive maintenance and improved reliability.
- Additive Manufacturing: The use of additive manufacturing techniques, such as 3D printing, can enable the production of complex bearing designs with improved performance and reduced weight.
- Sustainable Solutions: The focus on sustainability is driving the development of eco-friendly bearing materials and manufacturing processes, reducing the environmental impact of bearing production and use.
These trends are expected to shape the future of needle roller bearings, making them even more efficient, reliable, and sustainable.
🌱 Note: Staying informed about the latest trends and advancements in needle roller bearing technology can help you make better-informed decisions and improve the performance of your applications.
Case Studies: Successful Implementations of Needle Roller Bearings
To illustrate the effectiveness of needle roller bearings, let's look at a few case studies from different industries:
Automotive Industry
In the automotive industry, needle roller bearings are widely used in transmissions and differentials. A leading automotive manufacturer implemented needle roller bearings in their new transmission design, resulting in a 20% increase in load-carrying capacity and a 15% reduction in overall size. This allowed for more compact and efficient transmission designs, improving fuel efficiency and performance.
Aerospace Industry
In the aerospace industry, needle roller bearings are used in landing gear and control systems. An aerospace company replaced traditional bearings with needle roller bearings in their landing gear, resulting in a 30% reduction in weight and a 25% increase in load-carrying capacity. This improvement enhanced the aircraft's performance and reliability, making it more competitive in the market.
Industrial Machinery
In industrial machinery, needle roller bearings are used in pumps, compressors, and gearboxes. A manufacturing company integrated needle roller bearings into their new pump design, achieving a 25% increase in efficiency and a 15% reduction in maintenance costs. The improved performance and reliability of the pumps led to significant cost savings and increased productivity.
These case studies demonstrate the versatility and effectiveness of needle roller bearings in various applications, highlighting their ability to enhance performance, reliability, and efficiency.
📊 Note: Analyzing case studies can provide valuable insights into the benefits and challenges of using needle roller bearings in different applications, helping you make informed decisions for your projects.
Comparing Needle Roller Bearings with Other Types of Bearings
To better understand the advantages of needle roller bearings, it is helpful to compare them with other types of bearings. Here is a comparison of needle roller bearings with some commonly used bearings:
| Bearing Type | Load-Carrying Capacity | Space Requirements | Speed Capability | Typical Applications |
|---|---|---|---|---|
| Needle Roller Bearings | High | Low | Moderate to High | Automotive transmissions, aerospace landing gear, industrial machinery |
| Ball Bearings | Moderate | Moderate | High | Electric motors, fans, conveyors |
| Cylindrical Roller Bearings | High | Moderate | Moderate | Gearboxes, pumps, compressors |
| Tapered Roller Bearings | High | Moderate | Moderate | Automotive wheel hubs, gearboxes, conveyors |
This comparison highlights the unique advantages of needle roller bearings, particularly their high load-carrying capacity and low space requirements. However, the choice of bearing ultimately depends on the specific requirements of the application.
🔍 Note: When comparing bearings, consider the specific requirements of your application, including load, speed, space, and environmental conditions, to make the best selection.
In conclusion, needle roller bearings are a versatile and efficient solution for applications requiring high load-carrying capacity and minimal space. Their unique design and various types make them suitable for a wide range of industries, from automotive and aerospace to industrial machinery and power tools. By understanding the advantages, selection criteria, maintenance practices, and future trends of needle roller bearings, you can make informed decisions to enhance the performance and reliability of your applications. Proper selection, installation, and maintenance are crucial to ensure the longevity and optimal performance of needle roller bearings, making them a valuable component in modern mechanical engineering.
