Electrical safety is paramount in any construction or renovation project. Understanding the intricacies of electrical codes and standards is crucial for ensuring the safety and efficiency of electrical systems. One of the key standards that professionals often refer to is the NEC Table 310.16. This table provides essential guidelines for the ampacity of conductors, which is the maximum current that a conductor can carry continuously under the conditions of use without exceeding its temperature rating.

Table of Contents

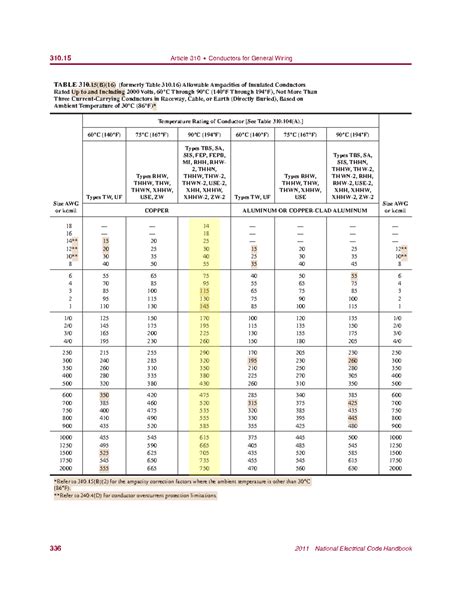

Understanding NEC Table 310.16

The NEC Table 310.16 is a comprehensive resource that outlines the ampacity ratings for various types of conductors based on their insulation type and ambient temperature. This table is essential for electricians, engineers, and contractors who need to ensure that their electrical installations comply with safety standards. The table is divided into several sections, each addressing different types of conductors and their respective ampacity ratings.

Key Components of NEC Table 310.16

To fully understand and utilize NEC Table 310.16, it is important to familiarize yourself with its key components:

Conductor Material: The table specifies ampacity ratings for different materials such as copper and aluminum.
Insulation Type: Various insulation types, such as THHN, THWN, and XHHW, are listed with their corresponding ampacity ratings.
Ambient Temperature: The table provides adjustments for different ambient temperatures, ensuring that the conductor's ampacity is appropriate for the environment in which it is installed.
Number of Conductors: The ampacity ratings are adjusted based on the number of conductors in a raceway or cable, accounting for heat dissipation.

How to Use NEC Table 310.16

Using NEC Table 310.16 effectively involves several steps. Here is a guide to help you navigate the table:

Identify the Conductor Material: Determine whether the conductor is made of copper or aluminum.
Select the Insulation Type: Choose the appropriate insulation type based on the application and environmental conditions.
Determine the Ambient Temperature: Consider the ambient temperature of the installation environment and apply any necessary adjustments.
Count the Number of Conductors: Calculate the total number of conductors in the raceway or cable to apply the correct ampacity rating.
Consult the Table: Refer to NEC Table 310.16 to find the ampacity rating that corresponds to your specific conditions.

For example, if you are using a THHN copper conductor in an ambient temperature of 30°C with three conductors in a raceway, you would look up the ampacity rating for THHN copper conductors and apply the appropriate adjustment for the number of conductors and ambient temperature.

🔍 Note: Always ensure that the ampacity rating of the conductor is sufficient to handle the expected load, including any potential overloads or short-term surges.

Importance of Ampacity Ratings

The ampacity rating of a conductor is critical for several reasons:

Safety: Proper ampacity ensures that the conductor does not overheat, which can lead to fires or other hazards.
Efficiency: Conductors with appropriate ampacity ratings operate more efficiently, reducing energy losses and improving overall system performance.
Compliance: Adhering to NEC Table 310.16 ensures that your electrical installations comply with national and local codes, avoiding potential legal issues and penalties.

Common Mistakes to Avoid

When working with NEC Table 310.16, it is essential to avoid common mistakes that can compromise safety and compliance:

Ignoring Ambient Temperature: Failing to account for ambient temperature can lead to incorrect ampacity ratings and potential overheating.
Overlooking Conductor Count: Not considering the number of conductors in a raceway can result in inadequate ampacity ratings and reduced heat dissipation.
Using Incorrect Insulation Type: Selecting the wrong insulation type can affect the conductor's performance and safety.
Neglecting Adjustments: Forgetting to apply necessary adjustments for factors such as termination temperature and conductor bundling can lead to inaccurate ampacity ratings.

Adjustments and Corrections

In addition to the basic ampacity ratings provided in NEC Table 310.16, there are several adjustments and corrections that may need to be applied:

Ambient Temperature Correction: If the ambient temperature exceeds 30°C, a correction factor must be applied to reduce the ampacity rating.
Number of Conductors Correction: When more than three conductors are installed in a raceway, a correction factor must be applied to account for reduced heat dissipation.
Termination Temperature Correction: If the termination temperature exceeds the conductor's rating, a correction factor must be applied to ensure safe operation.

For example, if the ambient temperature is 40°C, the correction factor for copper conductors is 0.82. If you have six conductors in a raceway, the correction factor is 0.5. Applying these corrections to the base ampacity rating ensures that the conductor operates safely under the given conditions.

🔍 Note: Always refer to the latest edition of the National Electrical Code (NEC) for the most accurate and up-to-date information on ampacity ratings and adjustments.

Example Calculation

Let's walk through an example calculation to illustrate how to use NEC Table 310.16 effectively:

Suppose you are installing a THHN copper conductor in a raceway with an ambient temperature of 35°C. The raceway contains six conductors. You need to determine the ampacity rating for a 12 AWG THHN copper conductor.

Identify the Conductor Material: Copper
Select the Insulation Type: THHN
Determine the Ambient Temperature: 35°C
Count the Number of Conductors: Six
Consult the Table: The base ampacity rating for a 12 AWG THHN copper conductor is 20 amperes.

Now, apply the necessary corrections:

Ambient Temperature Correction: For 35°C, the correction factor is 0.88.
Number of Conductors Correction: For six conductors, the correction factor is 0.5.

Calculate the adjusted ampacity rating:

Adjusted Ampacity = Base Ampacity × Ambient Temperature Correction × Number of Conductors Correction

Adjusted Ampacity = 20 A × 0.88 × 0.5 = 8.8 A

Therefore, the adjusted ampacity rating for the 12 AWG THHN copper conductor under the given conditions is 8.8 amperes.

Conclusion

Understanding and correctly applying NEC Table 310.16 is essential for ensuring the safety and efficiency of electrical installations. By following the guidelines and adjustments outlined in the table, professionals can select the appropriate conductors and ampacity ratings for their projects. This not only ensures compliance with electrical codes but also enhances the overall performance and safety of the electrical system. Always refer to the latest edition of the National Electrical Code for the most accurate and up-to-date information on ampacity ratings and adjustments.
