Understanding the intricacies of electrical systems is crucial for anyone involved in construction, maintenance, or electrical engineering. One of the key components in these systems is the conduit, which protects and routes electrical wiring. The Nec Conduit Fill Chart is an essential tool that helps ensure electrical conduits are not overfilled, thereby maintaining safety and compliance with the National Electrical Code (NEC). This guide will delve into the importance of the Nec Conduit Fill Chart, how to use it, and its significance in electrical installations.
Understanding Conduit Fill
Conduit fill refers to the amount of space that conductors (wires) occupy within a conduit. Proper conduit fill is vital for several reasons:
- Safety: Overfilling a conduit can lead to overheating, which increases the risk of electrical fires.
- Efficiency: Properly filled conduits ensure that electrical systems operate efficiently, reducing the likelihood of failures.
- Compliance: Adhering to the Nec Conduit Fill Chart ensures that installations comply with the NEC, which is a legal requirement in many jurisdictions.
The Importance of the Nec Conduit Fill Chart
The Nec Conduit Fill Chart provides guidelines on the maximum number of conductors that can be installed in a conduit of a given size. This chart is based on the cross-sectional area of the conductors and the internal diameter of the conduit. By following these guidelines, electricians can ensure that their installations are safe and compliant.
How to Use the Nec Conduit Fill Chart
Using the Nec Conduit Fill Chart involves several steps. Here’s a detailed guide:
Step 1: Determine the Conduit Size
The first step is to identify the size of the conduit you will be using. Conduits come in various sizes, typically measured in inches or millimeters. Common sizes include ½ inch, ¾ inch, 1 inch, and so on.
Step 2: Identify the Conductor Size
Next, determine the size of the conductors you will be installing. Conductors are usually measured by their American Wire Gauge (AWG) or by their cross-sectional area in square millimeters (mm²).
Step 3: Calculate the Conduit Fill
Using the Nec Conduit Fill Chart, find the maximum allowable fill percentage for the conduit size you are using. The chart provides fill percentages for different types of conductors and conduit materials.
Step 4: Apply the Fill Percentage
Calculate the total cross-sectional area of the conductors you plan to install. Multiply this area by the fill percentage from the chart to determine the maximum allowable area for the conductors within the conduit.
Step 5: Verify Compliance
Ensure that the total cross-sectional area of the conductors does not exceed the maximum allowable area calculated in Step 4. If it does, you may need to use a larger conduit or reduce the number of conductors.
🔍 Note: Always round up to the nearest whole number when calculating the number of conductors to ensure compliance.
Example Calculation
Let’s go through an example to illustrate the process:
- Conduit Size: 1 inch
- Conductor Size: 12 AWG
- Fill Percentage: 40% (from the Nec Conduit Fill Chart)
First, calculate the cross-sectional area of a 12 AWG conductor. According to standard tables, a 12 AWG conductor has a cross-sectional area of approximately 3.31 mm².
Next, calculate the internal area of a 1-inch conduit. The internal diameter of a 1-inch conduit is approximately 26.6 mm, giving an internal area of about 557.4 mm².
Now, apply the fill percentage:
Maximum allowable area for conductors = 557.4 mm² * 40% = 222.96 mm²
Number of 12 AWG conductors that can fit = 222.96 mm² / 3.31 mm² ≈ 67 conductors
Therefore, you can install up to 67 12 AWG conductors in a 1-inch conduit without exceeding the fill percentage.
Common Mistakes to Avoid
When using the Nec Conduit Fill Chart, it’s essential to avoid common mistakes that can lead to non-compliance or safety issues:
- Incorrect Conduit Size: Ensure you are using the correct conduit size for your application.
- Incorrect Conductor Size: Verify the size of the conductors you are installing.
- Ignoring Fill Percentage: Always adhere to the fill percentage specified in the chart.
- Overfilling: Do not exceed the maximum allowable fill area calculated from the chart.
Special Considerations
There are several special considerations to keep in mind when using the Nec Conduit Fill Chart:
- Conduit Material: Different materials (e.g., PVC, metal) may have different fill percentages.
- Conductor Type: The type of conductor (e.g., THHN, XHHW) can affect the fill percentage.
- Environmental Factors: Extreme temperatures or harsh environments may require additional considerations.

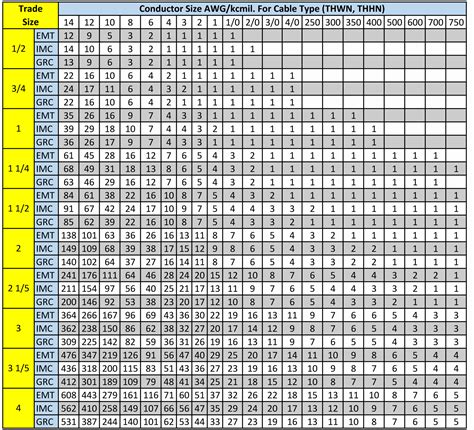

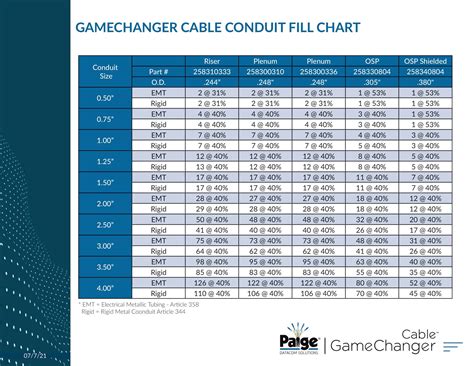

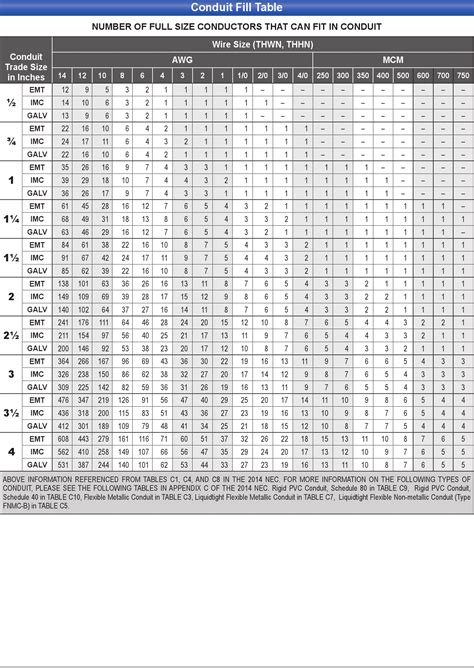

Nec Conduit Fill Chart Table
| Conduit Size (inches) | Maximum Fill Percentage | Internal Area (mm²) |
|---|---|---|
| ½ | 53% | 133.0 |
| ¾ | 40% | 266.7 |
| 1 | 40% | 557.4 |
| 1¼ | 40% | 826.7 |
| 1½ | 40% | 1134.0 |
Conclusion
The Nec Conduit Fill Chart is an indispensable tool for anyone working with electrical conduits. By understanding and correctly applying the guidelines provided in the chart, electricians can ensure that their installations are safe, efficient, and compliant with the NEC. Proper conduit fill not only prevents potential hazards but also ensures the longevity and reliability of electrical systems. Whether you are a professional electrician or a DIY enthusiast, mastering the use of the Nec Conduit Fill Chart is a crucial skill that will serve you well in any electrical project.
