Nec 310.16 Table

Understanding the intricacies of electrical wiring and safety standards is crucial for anyone involved in electrical work. One of the key resources in this field is the NEC 310.16 Table, which provides essential guidelines for ampacity of conductors. This table is a cornerstone of the National Electrical Code (NEC), ensuring that electrical installations are safe and efficient. In this post, we will delve into the details of the NEC 310.16 Table, its significance, and how to use it effectively.

Table of Contents

What is the NEC 310.16 Table?

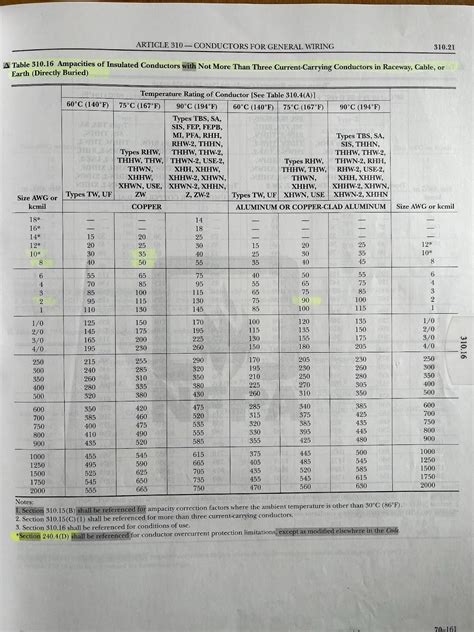

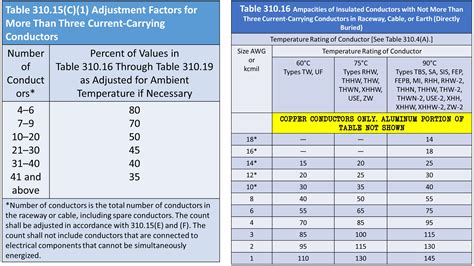

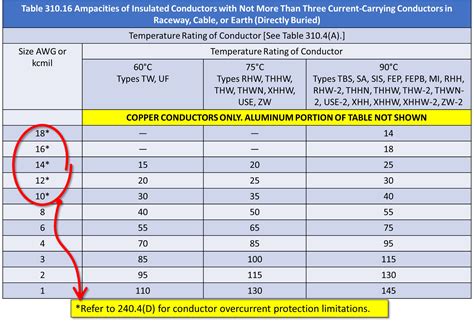

The NEC 310.16 Table, also known as Table 310.16, is a comprehensive guide that lists the allowable ampacities of insulated conductors rated up to and including 2000 volts. This table is essential for electricians, engineers, and anyone involved in electrical design and installation. It helps determine the maximum current that a conductor can safely carry without exceeding its temperature rating, which is critical for preventing overheating and potential fires.

Understanding Ampacity

Ampacity refers to the maximum current, in amperes, that a conductor can carry continuously under the conditions of use without exceeding its temperature rating. The NEC 310.16 Table provides ampacity values for various types of conductors, including copper and aluminum, under different conditions. These conditions include the type of insulation, the number of conductors in a raceway, and the ambient temperature.

Key Factors Affecting Ampacity

Several factors influence the ampacity of a conductor as outlined in the NEC 310.16 Table. Understanding these factors is crucial for accurate calculations and safe installations:

Conductor Material: Copper and aluminum are the most common materials used for conductors. Copper generally has a higher ampacity than aluminum of the same size due to its better conductivity.
Insulation Type: The type of insulation affects the ampacity. Different insulation materials have different temperature ratings, which in turn affect the ampacity.
Ambient Temperature: The surrounding temperature can impact the ampacity. Higher ambient temperatures reduce the ampacity, while lower temperatures can increase it.
Number of Conductors: The number of conductors in a raceway or cable affects the ampacity due to heat buildup. More conductors mean less space for heat dissipation, reducing the ampacity.
Termination Temperature: The temperature rating of the termination points (such as connectors and switches) also affects the ampacity. The conductor's ampacity must not exceed the temperature rating of the termination points.

Using the NEC 310.16 Table

To use the NEC 310.16 Table effectively, follow these steps:

Identify the Conductor Material: Determine whether the conductor is made of copper or aluminum.
Select the Insulation Type: Choose the appropriate insulation type based on the application and environmental conditions.
Determine the Ambient Temperature: Consider the ambient temperature where the conductor will be installed.
Count the Number of Conductors: Calculate the total number of conductors in the raceway or cable.
Check the Termination Temperature: Ensure that the conductor's ampacity does not exceed the temperature rating of the termination points.
Consult the Table: Use the NEC 310.16 Table to find the allowable ampacity for the specific conductor under the identified conditions.

🔍 Note: Always refer to the latest edition of the NEC for the most accurate and up-to-date information.

Example Calculation

Let's go through an example to illustrate how to use the NEC 310.16 Table. Suppose you need to determine the ampacity of a 12 AWG copper conductor with THHN insulation, installed in a raceway with three other conductors, and the ambient temperature is 30°C.

Conductor Material: Copper
Insulation Type: THHN (90°C rating)
Ambient Temperature: 30°C
Number of Conductors: 4 (including the one in question)
Termination Temperature: Assume 75°C rating for termination points

Using the NEC 310.16 Table, you would find the ampacity for a 12 AWG copper conductor with THHN insulation. The table provides a base ampacity of 30 amperes for a single conductor. However, since there are four conductors in the raceway, you need to apply a derating factor. For four conductors, the derating factor is 0.80 (80%).

Therefore, the adjusted ampacity is:

30 amperes * 0.80 = 24 amperes

Additionally, since the ambient temperature is 30°C, you need to adjust the ampacity further. The NEC provides correction factors for ambient temperatures. For 30°C, the correction factor is 0.91.

So, the final ampacity is:

24 amperes * 0.91 = 21.84 amperes

Since the termination points have a 75°C rating, you need to ensure that the conductor's ampacity does not exceed this rating. The NEC 310.16 Table provides ampacity values for 75°C rated conductors, which is 25 amperes for a 12 AWG copper conductor with THHN insulation. Since 21.84 amperes is less than 25 amperes, the installation is within the safe limits.

Important Considerations

When using the NEC 310.16 Table, keep the following considerations in mind:

Derating Factors: Always apply the appropriate derating factors for the number of conductors in a raceway or cable.
Ambient Temperature Correction: Adjust the ampacity based on the ambient temperature to ensure safe operation.
Termination Points: Ensure that the conductor's ampacity does not exceed the temperature rating of the termination points.
Continuous Load: For continuous loads, the ampacity must be derated by 125%. This means that the conductor must be sized to carry 125% of the continuous load current.

Here is a sample table illustrating the derating factors for different numbers of conductors:

Number of Conductors	Derating Factor
2	0.90
3	0.80
4	0.70
5	0.60
6	0.50

🔍 Note: Always refer to the latest edition of the NEC for the most accurate and up-to-date derating factors.

Conclusion

The NEC 310.16 Table is an indispensable resource for anyone involved in electrical work. It provides essential guidelines for determining the ampacity of conductors, ensuring safe and efficient electrical installations. By understanding the key factors that affect ampacity and following the steps to use the table effectively, you can ensure that your electrical installations comply with safety standards and operate reliably. Always refer to the latest edition of the NEC for the most accurate and up-to-date information, and consult with a licensed electrician if you have any doubts or questions.
