Multimeter What Is

Understanding the fundamentals of electrical measurements is crucial for anyone working with electronics, whether you're a hobbyist, a professional engineer, or a student. One of the most essential tools in this field is the multimeter. A multimeter is a versatile instrument that combines several measurement functions in one unit. It can measure voltage, current, and resistance, making it an indispensable tool for diagnosing and troubleshooting electrical problems. This post will delve into the intricacies of what a multimeter is, its various types, and how to use it effectively.

Table of Contents

What Is a Multimeter?

A multimeter, often referred to as a VOM (Volt-Ohm-Milliammeter), is a handheld device used to measure electrical values. The term “multimeter” comes from its ability to measure multiple electrical properties. The primary functions of a multimeter include:

Measuring voltage (both AC and DC)
Measuring current (both AC and DC)
Measuring resistance
Testing continuity
Measuring capacitance and frequency in some advanced models

Multimeters are available in both analog and digital formats. Analog multimeters use a needle and a scale to display measurements, while digital multimeters provide a numerical readout on an LCD screen. Digital multimeters are generally more accurate and easier to read, making them the preferred choice for most applications.

Types of Multimeters

Multimeters come in various types, each suited to different levels of expertise and specific needs. The main types include:

Analog Multimeters: These use a moving needle to indicate measurements on a scale. They are often preferred for their ability to show trends over time.
Digital Multimeters (DMMs): These provide a numerical readout and are generally more accurate and easier to read. They are the most common type used today.
Auto-Ranging Multimeters: These automatically select the appropriate range for the measurement, making them user-friendly and reducing the risk of incorrect settings.
Manual-Ranging Multimeters: These require the user to select the measurement range manually, offering more control but requiring more expertise.
True RMS Multimeters: These are designed to measure both sine and non-sine waveforms accurately, making them ideal for complex electrical systems.

Key Features of a Multimeter

When choosing a multimeter, it’s important to consider several key features that can enhance its functionality and usability. Some of the most important features include:

Accuracy: The precision of the measurements is crucial, especially for professional use. Look for multimeters with high accuracy ratings.
Range: The measurement range determines the types of circuits and components you can test. A wider range is generally better.
Safety Ratings: Ensure the multimeter has appropriate safety ratings for the voltages and currents you will be working with.
Display: A clear and easy-to-read display is essential. Digital multimeters with backlit displays are particularly useful in low-light conditions.
Durability: A robust build quality ensures the multimeter can withstand the rigors of field use.
Additional Functions: Some multimeters offer extra features like capacitance measurement, frequency measurement, and temperature measurement.

How to Use a Multimeter

Using a multimeter effectively requires understanding its basic functions and settings. Here’s a step-by-step guide to using a digital multimeter:

Measuring Voltage

To measure voltage, follow these steps:

Turn on the multimeter and select the voltage setting (V) on the dial.
Insert the black probe into the COM port and the red probe into the VΩmA port.
Touch the probes to the points in the circuit where you want to measure the voltage.
Read the voltage displayed on the screen.

🔍 Note: Ensure the probes are making good contact with the circuit points to get an accurate reading.

Measuring Current

To measure current, follow these steps:

Turn on the multimeter and select the current setting (A) on the dial.
Insert the black probe into the COM port and the red probe into the VΩmA port.
Break the circuit at the point where you want to measure the current and insert the probes in series with the circuit.
Read the current displayed on the screen.

⚠️ Note: Be cautious when measuring high currents, as it can damage the multimeter if the range is not set correctly.

Measuring Resistance

To measure resistance, follow these steps:

Turn on the multimeter and select the resistance setting (Ω) on the dial.
Insert the black probe into the COM port and the red probe into the VΩmA port.
Touch the probes to the two points of the component you want to measure.
Read the resistance displayed on the screen.

🔍 Note: Ensure the component is not connected to any power source when measuring resistance.

Testing Continuity

To test continuity, follow these steps:

Turn on the multimeter and select the continuity setting (usually indicated by a diode symbol) on the dial.
Insert the black probe into the COM port and the red probe into the VΩmA port.
Touch the probes to the two points you want to test for continuity.
Listen for a beep or look for a display indication that shows continuity.

🔍 Note: Continuity testing is useful for checking wires, fuses, and switches.

Advanced Multimeter Features

Some multimeters come with advanced features that can be particularly useful for specific applications. These features include:

Capacitance Measurement: Useful for testing capacitors in circuits.
Frequency Measurement: Helps in measuring the frequency of signals in electronic circuits.
Temperature Measurement: Some multimeters come with a temperature probe for measuring thermal properties.
Diode Test: Allows you to check the forward voltage drop of diodes and verify their functionality.
Transistor Test: Helps in testing the gain and functionality of transistors.

Safety Precautions When Using a Multimeter

Using a multimeter involves working with electrical circuits, which can be dangerous if not handled properly. Here are some safety precautions to keep in mind:

Always turn off the power to the circuit before making any measurements.
Use insulated probes to avoid accidental contact with live circuits.
Ensure the multimeter is rated for the voltage and current levels you are measuring.
Avoid measuring high voltages without proper training and equipment.
Keep the multimeter away from water and other liquids to prevent damage.

Choosing the Right Multimeter

Selecting the right multimeter depends on your specific needs and the level of expertise. Here are some factors to consider:

Accuracy: For professional use, a high-accuracy multimeter is essential.
Range: Ensure the multimeter can measure the voltages and currents you will be working with.
Safety Ratings: Choose a multimeter with appropriate safety ratings for your applications.
Display: A clear and easy-to-read display is crucial for accurate measurements.
Durability: A robust build quality ensures the multimeter can withstand field use.
Additional Functions: Consider multimeters with extra features if you need them for specific tasks.

Common Applications of a Multimeter

Multimeters are used in a wide range of applications, from simple household repairs to complex industrial troubleshooting. Some common applications include:

Electronics Repair: Diagnosing and repairing electronic devices.
Automotive Diagnostics: Checking electrical systems in vehicles.
Home Wiring: Testing electrical outlets, switches, and wiring.
Industrial Maintenance: Troubleshooting electrical equipment in factories and plants.
Educational Purposes: Teaching students about electrical principles and measurements.

Troubleshooting with a Multimeter

One of the most valuable uses of a multimeter is in troubleshooting electrical problems. Here are some common troubleshooting scenarios:

Checking for Short Circuits: Use the continuity test to check for short circuits in wiring.

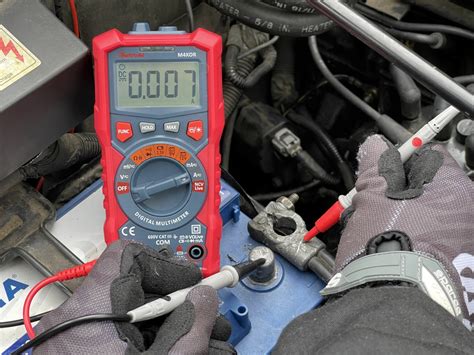

Testing Batteries: Measure the voltage of batteries to ensure they are functioning correctly.
Verifying Fuses: Check if fuses are blown by measuring their resistance.
Diagnosing Power Supplies: Measure the output voltage of power supplies to ensure they are working properly.
Testing Capacitors: Use the capacitance measurement feature to check the health of capacitors.

Maintaining Your Multimeter

Proper maintenance of your multimeter ensures its longevity and accuracy. Here are some tips for maintaining your multimeter:

Store the multimeter in a dry, cool place away from direct sunlight.
Keep the probes clean and free of corrosion.
Regularly calibrate the multimeter to ensure accurate readings.
Check the batteries periodically and replace them when necessary.
Handle the multimeter with care to avoid physical damage.

In summary, a multimeter is an indispensable tool for anyone working with electronics. Understanding what a multimeter is, its various types, and how to use it effectively can greatly enhance your ability to diagnose and troubleshoot electrical problems. Whether you’re a hobbyist, a professional, or a student, investing in a good quality multimeter and learning how to use it properly will pay off in the long run. By following the guidelines and safety precautions outlined in this post, you can ensure that your multimeter serves you well for many years to come.
