Motion Diagram Physics

Understanding the dynamics of motion is a fundamental aspect of physics, and one of the most effective tools for visualizing and analyzing these dynamics is the motion diagram. A motion diagram is a graphical representation that illustrates the position, velocity, and acceleration of an object over time. This tool is invaluable for students and professionals alike, providing a clear and concise way to understand complex motion concepts. In this post, we will delve into the intricacies of motion diagram physics, exploring its applications, benefits, and how to create one effectively.

Table of Contents

What is a Motion Diagram?

A motion diagram is a visual aid that helps in understanding the kinematics of an object. It typically consists of a series of dots or arrows representing the object’s position at different time intervals. By connecting these points, one can observe the path of the object and infer its velocity and acceleration. This diagram is particularly useful in scenarios involving uniform and non-uniform motion, projectile motion, and circular motion.

Components of a Motion Diagram

A typical motion diagram includes several key components:

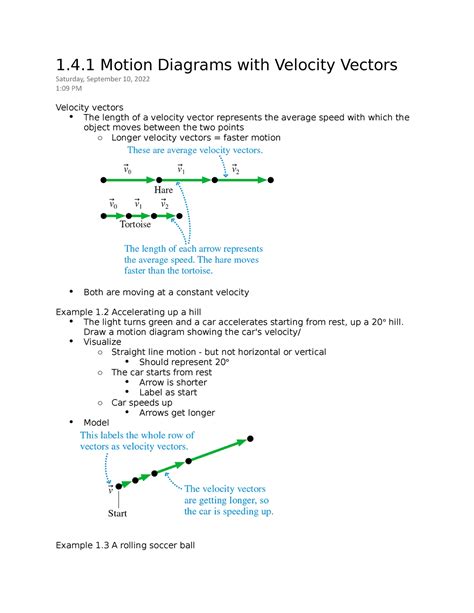

Position Vectors: These are arrows that represent the object’s position at different times. The length of the arrow indicates the magnitude of the displacement.
Velocity Vectors: These arrows show the direction and magnitude of the object’s velocity at each point. They are often drawn from the tail of the position vector.
Acceleration Vectors: These arrows represent the object’s acceleration and are typically drawn from the head of the velocity vector.
Time Intervals: The diagram is usually divided into equal time intervals to provide a consistent reference for analyzing the motion.

Creating a Motion Diagram

Creating a motion diagram involves several steps. Here’s a step-by-step guide to help you get started:

Choose the Object and Motion Type: Decide on the object you want to analyze and the type of motion it undergoes (e.g., linear, circular, projectile).
Determine the Time Intervals: Divide the total time of observation into equal intervals. This will help in plotting the positions accurately.
Plot the Positions: Mark the positions of the object at each time interval. Use dots or small circles to represent these positions.
Draw Position Vectors: Connect the dots with arrows to represent the displacement vectors. The length of the arrow should be proportional to the magnitude of the displacement.
Add Velocity Vectors: From the head of each position vector, draw an arrow representing the velocity. The direction of this arrow should be tangent to the path at that point.
Include Acceleration Vectors: Finally, draw acceleration vectors from the head of the velocity vectors. These arrows should point in the direction of the net force acting on the object.

💡 Note: Ensure that the scale of your diagram is consistent. The lengths of the vectors should accurately represent the magnitudes of the quantities they depict.

Applications of Motion Diagrams

Motion diagrams are widely used in various fields of physics and engineering. Some of the key applications include:

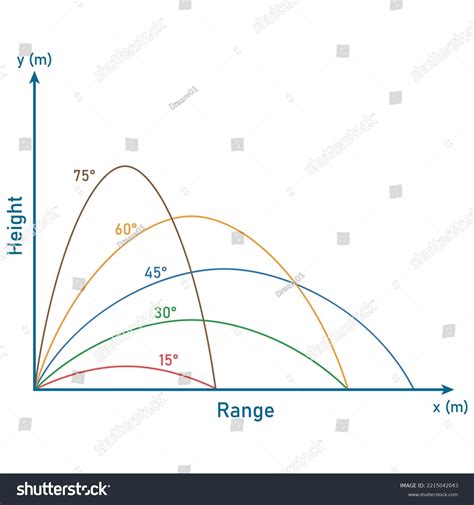

Projectile Motion: Analyzing the path of a projectile, such as a ball thrown in the air, can be simplified using a motion diagram. The diagram helps in visualizing the horizontal and vertical components of motion.
Circular Motion: Understanding the dynamics of objects moving in a circular path, like a car on a curved road, is made easier with motion diagrams. The diagram shows the centripetal acceleration acting towards the center of the circle.
Uniform and Non-Uniform Motion: For objects moving with constant velocity or acceleration, motion diagrams provide a clear representation of the changes in position over time.
Engineering Design: Engineers use motion diagrams to design and analyze mechanical systems, ensuring that components move as intended under various conditions.

Benefits of Using Motion Diagrams

There are several benefits to using motion diagrams in the study of physics:

Visual Clarity: Motion diagrams provide a visual representation of complex motion, making it easier to understand and analyze.
Conceptual Understanding: By visualizing the motion, students can better grasp concepts like velocity, acceleration, and displacement.
Problem-Solving: Motion diagrams help in breaking down complex problems into manageable parts, making it easier to apply physical laws and equations.
Communication: These diagrams serve as effective communication tools, allowing physicists and engineers to share their findings and ideas clearly.

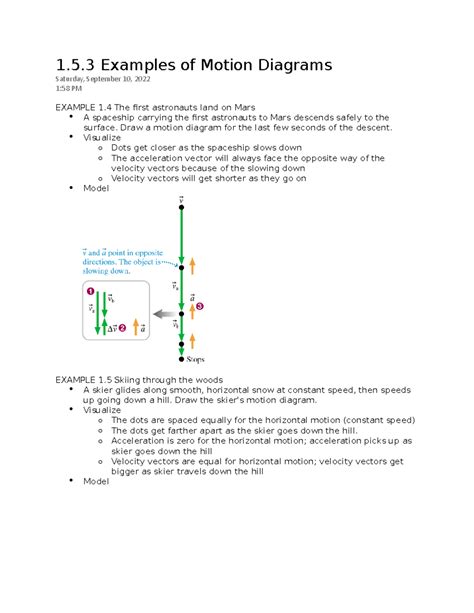

Examples of Motion Diagrams

To better understand motion diagrams, let’s look at a few examples:

Example 1: Uniform Linear Motion

Consider an object moving with a constant velocity. The motion diagram for this scenario would show equally spaced position vectors, indicating that the object covers the same distance in each time interval. The velocity vectors would all be of the same length and direction, while the acceleration vectors would be zero, as there is no change in velocity.

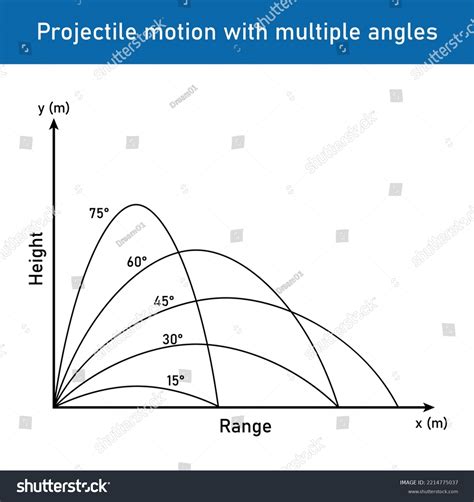

Example 2: Projectile Motion

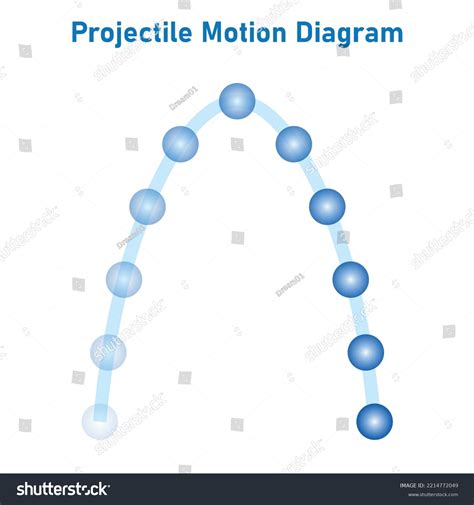

For a projectile launched at an angle, the motion diagram would show a parabolic path. The position vectors would curve upwards initially and then downwards, reflecting the object’s trajectory. The velocity vectors would change direction and magnitude, pointing tangent to the path at each point. The acceleration vectors would point downwards, indicating the constant acceleration due to gravity.

Example 3: Circular Motion

In circular motion, the motion diagram would show the object moving in a circular path. The position vectors would form a circle, with the velocity vectors tangent to the circle at each point. The acceleration vectors would point towards the center of the circle, representing the centripetal acceleration.

Common Mistakes to Avoid

When creating motion diagrams, it’s important to avoid common mistakes that can lead to incorrect interpretations:

Inconsistent Scaling: Ensure that the scale used for position, velocity, and acceleration vectors is consistent throughout the diagram.
Incorrect Vector Directions: Make sure that the velocity vectors are tangent to the path and that the acceleration vectors point in the correct direction.
Ignoring Time Intervals: Always use equal time intervals to accurately represent the motion over time.
Overlooking Acceleration: Even if the object’s velocity is constant, include acceleration vectors if there is any change in direction or magnitude.

🚨 Note: Double-check your diagram for consistency and accuracy. Small errors can lead to significant misinterpretations of the motion.

Advanced Techniques in Motion Diagram Physics

For more advanced applications, motion diagrams can be enhanced with additional techniques:

Vector Addition: Use vector addition to combine multiple forces acting on an object, providing a more comprehensive analysis of the motion.
Graphical Analysis: Combine motion diagrams with graphical representations of velocity and acceleration over time to gain deeper insights into the motion.
Computer Simulations: Utilize computer simulations to create dynamic motion diagrams that can be manipulated in real-time, allowing for interactive analysis.

Conclusion

Motion diagrams are an essential tool in the study of motion diagram physics, providing a clear and concise way to visualize and analyze the dynamics of moving objects. By understanding the components and applications of motion diagrams, students and professionals can gain a deeper insight into the principles of kinematics and dynamics. Whether used for educational purposes or in engineering design, motion diagrams offer a powerful means of communicating and solving complex motion problems. By following the steps outlined in this post and avoiding common mistakes, you can create accurate and informative motion diagrams that enhance your understanding of physics.
