Understanding the concept of moment of inertia is crucial in various fields of engineering and physics, particularly when dealing with structural analysis and design. One of the most common applications of moment of inertia is in the analysis of I-beams, which are widely used in construction and civil engineering. This post delves into the intricacies of moment of inertia I beam, exploring its significance, calculation methods, and practical applications.
What is Moment of Inertia?
The moment of inertia, often denoted by the symbol I, is a measure of an object’s resistance to changes in its rotation. In the context of structural engineering, it is a critical parameter that determines how a beam will deflect under a load. For an I-beam, the moment of inertia is particularly important because it affects the beam’s ability to withstand bending and torsional forces.
Importance of Moment of Inertia in I-Beams
I-beams, also known as H-beams or universal beams, are characterized by their distinctive shape, which consists of two horizontal flanges connected by a vertical web. This design provides high strength-to-weight ratio and excellent resistance to bending. The moment of inertia I beam is essential for several reasons:
- Structural Stability: A higher moment of inertia means the beam is more resistant to bending, which is crucial for maintaining structural integrity.
- Efficiency: I-beams with optimized moment of inertia can reduce material usage, leading to cost savings without compromising strength.
- Safety: Accurate calculation of the moment of inertia ensures that the beam can safely support the intended loads, preventing failures and ensuring public safety.

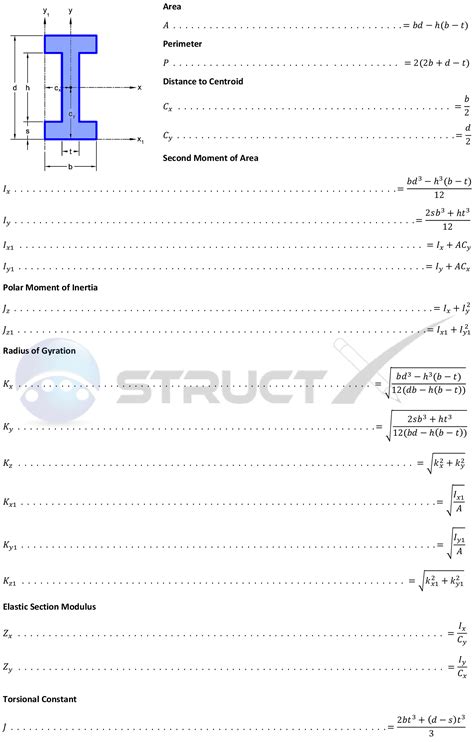

Calculating the Moment of Inertia for an I-Beam
Calculating the moment of inertia for an I-beam involves determining the second moment of area about the centroidal axis. The formula for the moment of inertia (I) for a rectangular section about its centroidal axis is given by:
I = (bh³)/12
where b is the width and h is the height of the section. For an I-beam, the calculation is more complex due to its composite structure. The moment of inertia is typically calculated by summing the contributions from the flanges and the web.
Step-by-Step Calculation
To calculate the moment of inertia I beam, follow these steps:
- Identify the Dimensions: Determine the dimensions of the flanges and the web. Let b be the width of the flange, h be the height of the web, and t be the thickness of the flange and web.
- Calculate the Area of Each Component: Compute the area of the flanges and the web.
- Determine the Centroid: Find the centroid of the composite section. For a symmetric I-beam, the centroid is typically at the midpoint of the web.
- Calculate the Moment of Inertia: Use the parallel axis theorem to sum the moments of inertia of the flanges and the web about the centroidal axis.
For example, consider an I-beam with the following dimensions:
| Component | Width (b) | Height (h) | Thickness (t) |
|---|---|---|---|
| Flange | 100 mm | 20 mm | 10 mm |
| Web | 10 mm | 200 mm | 10 mm |
The moment of inertia can be calculated as follows:
I = (bh³)/12 + (bh³)/12 + (bh³)/12
where the first term is for the top flange, the second term is for the bottom flange, and the third term is for the web.
📝 Note: The parallel axis theorem states that the moment of inertia of a composite section about a centroidal axis is the sum of the moments of inertia of its individual components about their own centroidal axes plus the product of the area of each component and the square of the distance from its centroid to the centroidal axis of the composite section.
Practical Applications of Moment of Inertia in I-Beams
The moment of inertia I beam is applied in various practical scenarios, including:
- Building Construction: I-beams are used in the construction of buildings to support floors, roofs, and walls. The moment of inertia ensures that the beams can withstand the loads without excessive deflection.
- Bridge Design: In bridge engineering, I-beams are used to support the deck and distribute the load evenly. The moment of inertia is crucial for designing bridges that can withstand heavy traffic and environmental loads.
- Industrial Structures: I-beams are used in the construction of industrial structures such as factories, warehouses, and storage facilities. The moment of inertia helps in designing beams that can support heavy machinery and equipment.
Factors Affecting the Moment of Inertia
Several factors can affect the moment of inertia of an I-beam, including:
- Material Properties: The type of material used (e.g., steel, aluminum) affects the moment of inertia due to differences in density and strength.
- Dimensions: The width, height, and thickness of the flanges and web significantly impact the moment of inertia.
- Loading Conditions: The type and magnitude of the loads applied to the beam can influence the required moment of inertia.
- Environmental Factors: Environmental conditions such as temperature and humidity can affect the material properties and, consequently, the moment of inertia.
Advanced Considerations
In addition to the basic calculations, advanced considerations may be necessary for complex structures or specific applications. These include:
- Dynamic Loading: For structures subjected to dynamic loads, such as bridges or machinery supports, the moment of inertia must account for the dynamic effects.
- Composite Materials: When using composite materials, the moment of inertia calculation must consider the properties of each layer and their interaction.
- Non-Uniform Sections: For I-beams with non-uniform sections or varying dimensions, the moment of inertia calculation becomes more complex and may require numerical methods or finite element analysis.
📝 Note: Advanced software tools and finite element analysis (FEA) can be used to accurately calculate the moment of inertia for complex I-beam sections and loading conditions.
Conclusion
The moment of inertia I beam is a fundamental concept in structural engineering that plays a crucial role in the design and analysis of I-beams. Understanding how to calculate and apply the moment of inertia ensures that I-beams can safely and efficiently support the intended loads. Whether in building construction, bridge design, or industrial structures, the moment of inertia is essential for maintaining structural integrity and safety. By considering the various factors that affect the moment of inertia and using advanced calculation methods when necessary, engineers can design robust and reliable I-beam structures.
