Modulus Of Rupture

Understanding the mechanical properties of materials is crucial in various engineering and construction fields. One of the key properties that engineers and material scientists often focus on is the Modulus of Rupture (MOR). This property provides valuable insights into the strength and durability of materials, particularly in applications where bending and flexural strength are critical.

Table of Contents

What is Modulus of Rupture?

The Modulus of Rupture (MOR) is a measure of the maximum stress that a material can withstand before it fails or ruptures under bending or flexural loads. It is often used to evaluate the strength of materials such as concrete, wood, and ceramics, which are commonly subjected to bending forces. The MOR is particularly important in structural engineering, where the integrity of beams, slabs, and other structural elements is paramount.

Importance of Modulus of Rupture in Engineering

The Modulus of Rupture plays a pivotal role in various engineering disciplines. Here are some key areas where MOR is crucial:

Civil Engineering: In the design of bridges, buildings, and other structures, engineers need to ensure that the materials used can withstand the expected loads without failing. The MOR helps in selecting appropriate materials and designing structures that can safely bear the intended loads.
Material Science: Researchers use the MOR to study the behavior of new materials under stress. This information is essential for developing materials with improved strength and durability.
Manufacturing: In industries such as woodworking and ceramics, the MOR is used to determine the quality and suitability of materials for specific applications. For example, in the production of furniture, the MOR helps in selecting wood that can withstand the weight and stress of daily use.

Calculating Modulus of Rupture

The Modulus of Rupture can be calculated using the formula derived from the flexural test. The most common method is the three-point bending test, where a beam is supported at two points and a load is applied at the midpoint. The formula for calculating the MOR is:

MOR = (3FL) / (2bd²)

F is the load at the point of rupture.
L is the length of the support span.
b is the width of the beam.
d is the depth of the beam.

This formula assumes that the beam is homogeneous and isotropic, and that the load is applied uniformly. In practice, the actual MOR may vary due to factors such as material imperfections, environmental conditions, and testing procedures.

Factors Affecting Modulus of Rupture

Several factors can influence the Modulus of Rupture of a material. Understanding these factors is essential for accurate material selection and design. Some of the key factors include:

Material Composition: The chemical and physical composition of a material significantly affects its MOR. For example, the presence of impurities or defects can weaken the material and reduce its MOR.
Environmental Conditions: Factors such as temperature, humidity, and exposure to chemicals can alter the MOR of a material. For instance, wood exposed to high humidity may become softer and more prone to failure under bending loads.
Manufacturing Processes: The methods used to produce a material can also impact its MOR. For example, the curing process in concrete can affect its strength and durability.
Loading Conditions: The rate and type of loading can influence the MOR. Rapid loading or impact loads may result in a lower MOR compared to slow, steady loads.

Applications of Modulus of Rupture

The Modulus of Rupture is widely used in various applications to ensure the safety and reliability of structures and components. Some common applications include:

Structural Engineering: In the design of bridges, buildings, and other structures, the MOR is used to select materials that can withstand the expected loads without failing.
Material Testing: Researchers and engineers use the MOR to evaluate the strength and durability of new materials. This information is crucial for developing materials with improved properties.
Quality Control: In manufacturing, the MOR is used to ensure that materials meet the required standards for strength and durability. This helps in maintaining the quality and reliability of products.

Testing Methods for Modulus of Rupture

Several testing methods are used to determine the Modulus of Rupture of materials. The choice of method depends on the type of material and the specific requirements of the application. Some common testing methods include:

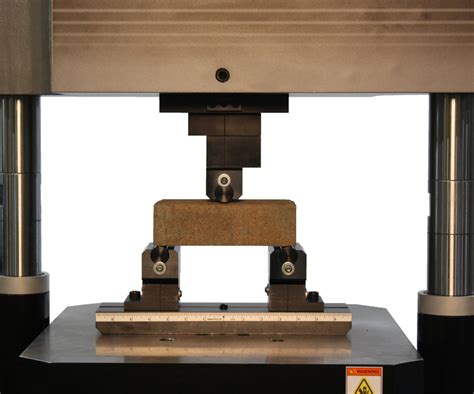

Three-Point Bending Test: This is the most common method for determining the MOR. A beam is supported at two points, and a load is applied at the midpoint until the beam fails.
Four-Point Bending Test: In this method, the beam is supported at two points, and loads are applied at two additional points. This test provides a more uniform stress distribution compared to the three-point bending test.
Flexural Test: This test involves applying a load to a beam supported at both ends until it fails. The MOR is calculated based on the load at the point of failure.

📝 Note: The choice of testing method should be based on the specific requirements of the application and the type of material being tested. It is important to follow standardized testing procedures to ensure accurate and reliable results.

Modulus of Rupture vs. Other Strength Measures

The Modulus of Rupture is just one of several measures used to evaluate the strength of materials. Other common strength measures include:

Tensile Strength: This measures the maximum stress that a material can withstand before it fails under tensile loads. It is often used to evaluate the strength of metals and alloys.
Compressive Strength: This measures the maximum stress that a material can withstand before it fails under compressive loads. It is commonly used to evaluate the strength of concrete and other construction materials.
Shear Strength: This measures the maximum stress that a material can withstand before it fails under shear loads. It is important in applications where materials are subjected to sliding or twisting forces.

While these measures provide valuable information about the strength of materials, they do not always correlate directly with the Modulus of Rupture. For example, a material with high tensile strength may not necessarily have a high MOR, as the failure mechanisms under bending and tensile loads can differ significantly.

Case Studies: Modulus of Rupture in Action

To illustrate the practical application of the Modulus of Rupture, let’s consider a few case studies:

Case Study 1: Concrete Beams

In the construction of bridges and buildings, concrete beams are often subjected to bending loads. Engineers use the MOR to select concrete mixes that can withstand the expected loads without failing. For example, a concrete beam with a higher MOR can support heavier loads and is less likely to crack or fail under stress.

Case Study 2: Wooden Joists

In residential and commercial construction, wooden joists are used to support floors and ceilings. The MOR of the wood is crucial in determining the maximum load that the joists can safely bear. Engineers use the MOR to select wood species and sizes that meet the required strength and durability standards.

Case Study 3: Ceramic Tiles

Ceramic tiles are commonly used in flooring and wall applications. The MOR of ceramic tiles is important in ensuring that they can withstand the stresses of foot traffic and other loads. Manufacturers use the MOR to develop tiles with improved strength and durability, reducing the risk of cracking and breakage.

Future Trends in Modulus of Rupture Research

As materials science and engineering continue to advance, researchers are exploring new ways to enhance the Modulus of Rupture of materials. Some emerging trends in MOR research include:

Nanomaterials: The use of nanomaterials, such as carbon nanotubes and graphene, is being investigated to improve the strength and durability of materials. These materials have unique properties that can enhance the MOR of composites and other engineered materials.
Advanced Manufacturing Techniques: Techniques such as 3D printing and additive manufacturing are being used to create materials with improved MOR. These methods allow for precise control over the microstructure of materials, resulting in enhanced strength and durability.
Smart Materials: Researchers are developing smart materials that can adapt to changing loads and environmental conditions. These materials have the potential to significantly enhance the MOR and overall performance of structures and components.

These advancements hold promise for developing materials with superior strength and durability, making them ideal for a wide range of applications in engineering and construction.

In conclusion, the Modulus of Rupture is a critical property that provides valuable insights into the strength and durability of materials. Understanding and accurately measuring the MOR is essential for selecting appropriate materials and designing structures that can safely withstand the expected loads. As research and technology continue to advance, the potential for developing materials with enhanced MOR and improved performance is vast, paving the way for innovative solutions in engineering and construction.
