Understanding the mechanical properties of materials is crucial in various fields of engineering and physics. One of the fundamental properties that engineers and scientists often consider is the Modulus of Elasticity, also known as Young's Modulus. This property measures the stiffness of a material, indicating how much it will deform under a given load. In this post, we will delve into the concept of the Modulus of Elasticity, its significance, how it is measured, and its applications in different industries.
What is the Modulus of Elasticity?
The Modulus of Elasticity is a measure of a material’s resistance to elastic deformation under stress. It is defined as the ratio of stress (force per unit area) to strain (proportional deformation) in the linear elastic region of a material’s stress-strain curve. This property is essential for understanding how materials will behave under various loading conditions.
Importance of the Modulus of Elasticity
The Modulus of Elasticity is a critical parameter in material science and engineering for several reasons:
- Design and Analysis: Engineers use the Modulus of Elasticity to design structures and components that can withstand specific loads without failing.
- Material Selection: It helps in selecting the appropriate material for a given application based on its stiffness requirements.
- Predictive Modeling: It is used in finite element analysis and other predictive modeling techniques to simulate the behavior of materials under different conditions.
- Quality Control: In manufacturing, the Modulus of Elasticity is used to ensure that materials meet the required specifications.
How is the Modulus of Elasticity Measured?

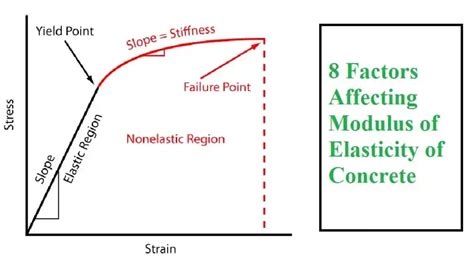

The Modulus of Elasticity is typically measured using a tensile test. In this test, a sample of the material is subjected to a controlled tensile load, and the resulting deformation is measured. The stress-strain curve obtained from this test is used to calculate the Modulus of Elasticity. The formula for calculating the Modulus of Elasticity (E) is:
E = σ / ε
where σ is the stress and ε is the strain.
Factors Affecting the Modulus of Elasticity
Several factors can influence the Modulus of Elasticity of a material:
- Temperature: The stiffness of a material can change with temperature. For most materials, the Modulus of Elasticity decreases as the temperature increases.
- Microstructure: The internal structure of a material, including grain size and defects, can affect its stiffness.
- Alloying Elements: In metals, the addition of alloying elements can alter the Modulus of Elasticity.
- Loading Conditions: The rate at which a load is applied can also influence the measured Modulus of Elasticity.
Applications of the Modulus of Elasticity
The Modulus of Elasticity is widely used in various industries to ensure the reliability and performance of materials and structures. Some key applications include:
- Civil Engineering: In the design of buildings, bridges, and other structures, the Modulus of Elasticity is used to determine the deflection and stability of components under load.
- Aerospace Engineering: In the aerospace industry, materials with high Modulus of Elasticity are preferred for their ability to withstand the stresses and strains of flight.
- Automotive Industry: The Modulus of Elasticity is crucial in designing vehicle components that can withstand impact and vibration.
- Biomedical Engineering: In the development of medical implants and devices, the Modulus of Elasticity is used to ensure compatibility with human tissue.
Modulus of Elasticity of Common Materials
The Modulus of Elasticity varies significantly among different materials. Here is a table showing the Modulus of Elasticity for some common materials:
| Material | Modulus of Elasticity (GPa) |
|---|---|
| Steel | 200 |
| Aluminum | 70 |
| Concrete | 30 |
| Wood | 10-20 |
| Rubber | 0.01-0.1 |
Modulus of Elasticity in Composite Materials
Composite materials, which are made from two or more constituent materials with significantly different physical or chemical properties, often exhibit unique mechanical properties. The Modulus of Elasticity of composite materials can be tailored by adjusting the properties and proportions of the constituent materials. For example, fiber-reinforced composites, such as carbon fiber-reinforced polymers, have a high Modulus of Elasticity due to the stiff fibers embedded in a matrix material.
📝 Note: The Modulus of Elasticity of composite materials can be predicted using various theoretical models, such as the Rule of Mixtures, which provides an estimate based on the properties of the individual components and their volume fractions.
Modulus of Elasticity in Biological Materials
Biological materials, such as bone, cartilage, and tendons, also exhibit a Modulus of Elasticity. Understanding the mechanical properties of these materials is crucial for developing biomedical implants and treatments. For example, the Modulus of Elasticity of bone is important in designing orthopedic implants that can integrate with the surrounding tissue and provide the necessary support.
📝 Note: The Modulus of Elasticity of biological materials can vary significantly due to factors such as age, health, and loading conditions. Therefore, it is essential to consider these variables when designing biomedical applications.
In summary, the Modulus of Elasticity is a fundamental property that plays a crucial role in various fields of engineering and science. It provides valuable insights into the behavior of materials under load and is essential for designing reliable and efficient structures and components. By understanding and measuring the Modulus of Elasticity, engineers and scientists can select the appropriate materials for specific applications and ensure the performance and safety of their designs.
