In the realm of electrical engineering and circuit design, ensuring the safety and reliability of electrical systems is paramount. One crucial component that plays a significant role in this regard is the Mini Circuit Breaker. These compact devices are designed to protect electrical circuits from damage caused by overloads or short circuits. Understanding the functionality, types, and applications of Mini Circuit Breakers is essential for anyone involved in electrical work.
Understanding Mini Circuit Breakers
A Mini Circuit Breaker is a type of circuit protection device that automatically interrupts the electrical circuit when it detects an overload or short circuit. Unlike fuses, which need to be replaced after a single use, Mini Circuit Breakers can be reset and reused, making them a cost-effective and reliable solution for circuit protection.
Mini Circuit Breakers operate on the principle of thermal and magnetic tripping. The thermal element responds to sustained overloads by heating up and tripping the breaker, while the magnetic element reacts to sudden short circuits by generating a magnetic field that trips the breaker instantly. This dual mechanism ensures that the circuit is protected against both types of faults.
Types of Mini Circuit Breakers

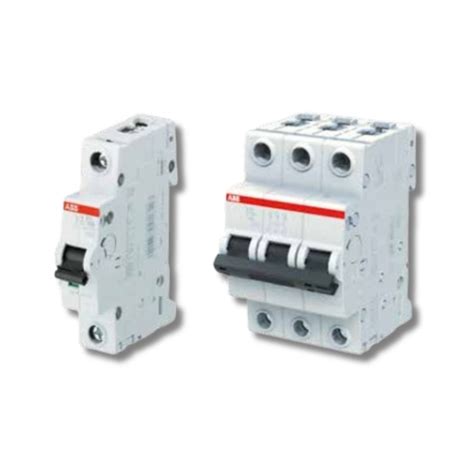

Mini Circuit Breakers come in various types, each designed for specific applications and requirements. The most common types include:

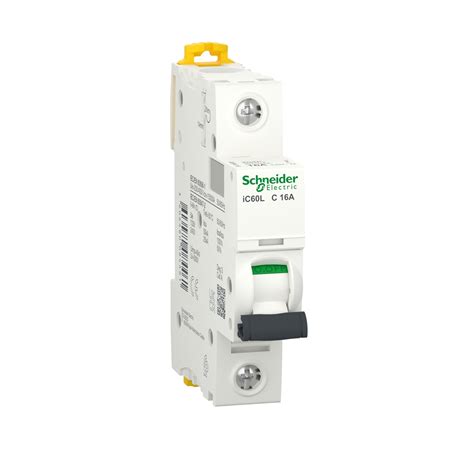

- Single-Pole Mini Circuit Breakers: These are used for protecting single-phase circuits and are typically rated for 15 to 20 amperes.

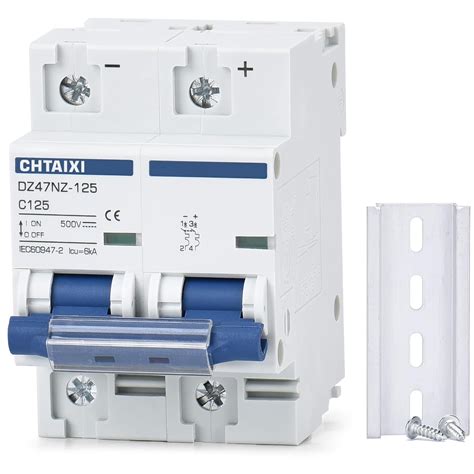

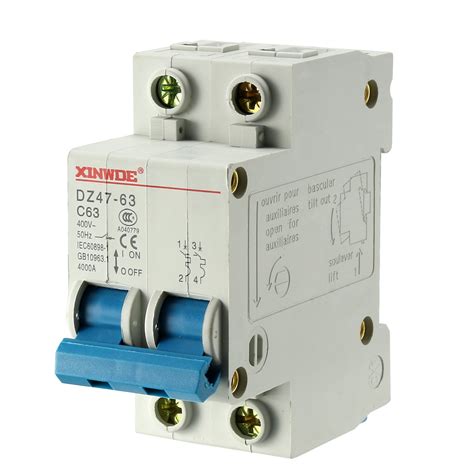

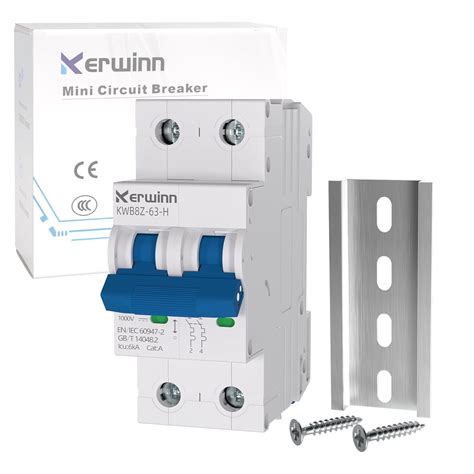

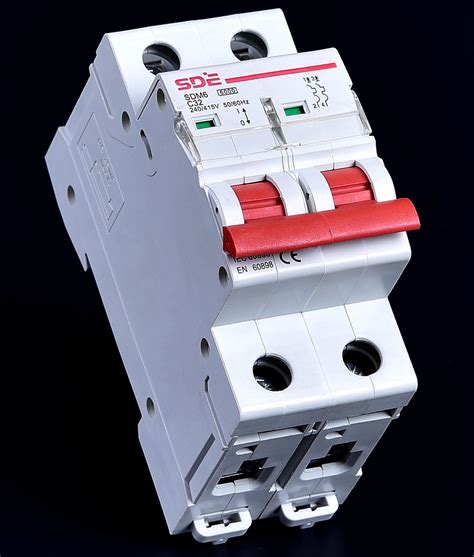

- Double-Pole Mini Circuit Breakers: These are used for protecting two-phase circuits and are rated for higher currents, usually 30 to 40 amperes.

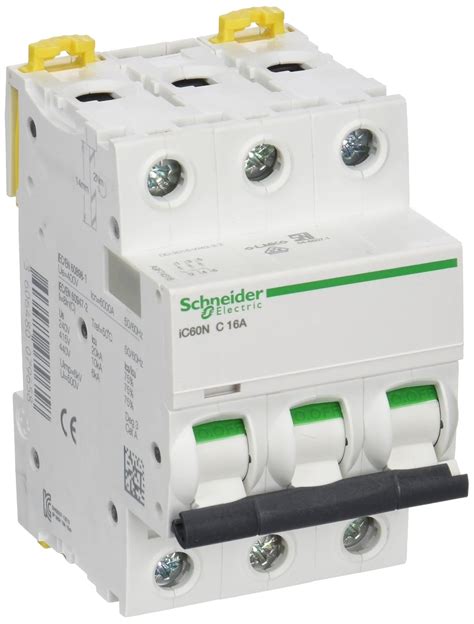

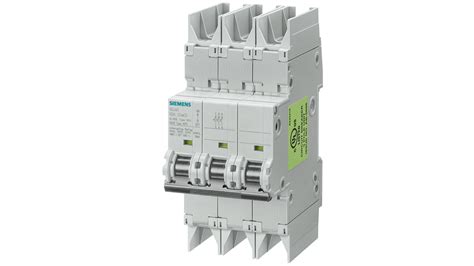

- Three-Pole Mini Circuit Breakers: These are used for protecting three-phase circuits and are rated for even higher currents, typically 50 to 60 amperes.

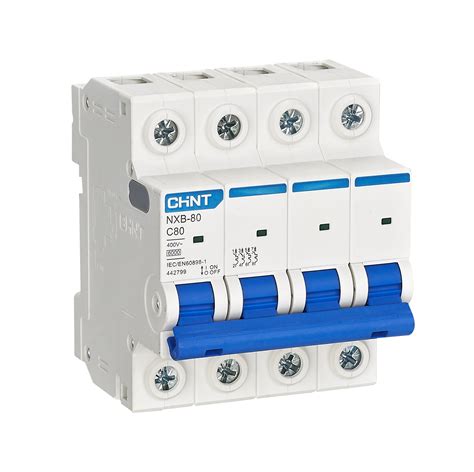

- Four-Pole Mini Circuit Breakers: These are used for protecting four-phase circuits and are rated for the highest currents, usually 70 to 80 amperes.
Additionally, Mini Circuit Breakers can be classified based on their tripping characteristics:
- Type B: Standard tripping characteristics, suitable for general-purpose applications.
- Type C: Medium tripping characteristics, suitable for applications with higher inrush currents.
- Type D: High tripping characteristics, suitable for applications with very high inrush currents, such as motor circuits.
Applications of Mini Circuit Breakers
Mini Circuit Breakers are widely used in various applications, including residential, commercial, and industrial settings. Some of the key applications include:
- Residential Buildings: Mini Circuit Breakers are used in residential electrical panels to protect individual circuits, such as lighting, outlets, and appliances.
- Commercial Buildings: In commercial settings, Mini Circuit Breakers are used to protect larger electrical systems, including HVAC systems, elevators, and other critical equipment.
- Industrial Facilities: In industrial settings, Mini Circuit Breakers are used to protect heavy-duty machinery and equipment, ensuring continuous operation and minimizing downtime.
- Automotive Industry: Mini Circuit Breakers are used in automotive electrical systems to protect various components, such as headlights, power windows, and audio systems.
Selection Criteria for Mini Circuit Breakers
Selecting the right Mini Circuit Breaker for a specific application involves considering several factors. These include:
- Current Rating: The current rating of the Mini Circuit Breaker should match the load requirements of the circuit it is protecting.
- Voltage Rating: The voltage rating of the Mini Circuit Breaker should be compatible with the voltage of the electrical system.
- Tripping Characteristics: The tripping characteristics of the Mini Circuit Breaker should be suitable for the type of load and the expected inrush currents.
- Environmental Conditions: The Mini Circuit Breaker should be able to withstand the environmental conditions of the installation, such as temperature, humidity, and vibration.
Additionally, it is important to consider the certification and standards compliance of the Mini Circuit Breaker. Ensure that the device meets the relevant industry standards and regulations, such as UL, CE, or CSA, to guarantee its safety and reliability.
Installation and Maintenance of Mini Circuit Breakers
Proper installation and maintenance of Mini Circuit Breakers are crucial for their effective operation and longevity. Here are some key steps and considerations for installing and maintaining Mini Circuit Breakers:
- Installation:
- Ensure that the electrical panel is turned off before installing the Mini Circuit Breaker.
- Follow the manufacturer's instructions for wiring the Mini Circuit Breaker to the electrical panel.
- Use appropriate tools and safety equipment, such as insulated gloves and safety glasses.
- Test the Mini Circuit Breaker after installation to ensure it is functioning correctly.
- Maintenance:
- Regularly inspect the Mini Circuit Breaker for any signs of damage or wear.
- Clean the Mini Circuit Breaker periodically to remove dust and debris.
- Test the Mini Circuit Breaker periodically to ensure it is functioning correctly.
- Replace the Mini Circuit Breaker if it shows signs of failure or damage.
🔧 Note: Always follow the manufacturer's guidelines and local electrical codes when installing and maintaining Mini Circuit Breakers.
Comparison with Other Circuit Protection Devices
While Mini Circuit Breakers are widely used, it is essential to understand how they compare to other circuit protection devices, such as fuses and molded case circuit breakers (MCCBs).
| Feature | Mini Circuit Breaker | Fuse | Molded Case Circuit Breaker (MCCB) |
|---|---|---|---|
| Resetability | Yes | No | Yes |
| Cost | Moderate | Low | High |
| Size | Compact | Small | Large |
| Tripping Characteristics | Thermal and Magnetic | Thermal | Thermal and Magnetic |
| Applications | Residential, Commercial, Industrial | Residential, Automotive | Industrial, Commercial |
Mini Circuit Breakers offer a balance between cost, size, and functionality, making them suitable for a wide range of applications. Fuses are cost-effective but not resetable, while MCCBs are more robust and suitable for high-current applications but are larger and more expensive.
Advancements in Mini Circuit Breaker Technology
The technology behind Mini Circuit Breakers has evolved significantly over the years, incorporating advanced features and improvements. Some of the recent advancements include:
- Smart Mini Circuit Breakers: These devices incorporate digital technology to provide real-time monitoring and diagnostics. They can communicate with other devices and systems, allowing for remote monitoring and control.
- Arc Fault Circuit Interrupters (AFCIs): These are specialized Mini Circuit Breakers designed to detect and interrupt arc faults, which are a common cause of electrical fires. AFCIs provide an additional layer of safety in residential and commercial settings.
- Ground Fault Circuit Interrupters (GFCIs): These Mini Circuit Breakers are designed to protect against ground faults, which can occur when a live wire comes into contact with a grounded surface. GFCIs are essential for protecting against electrical shocks in wet or damp environments.
These advancements have enhanced the functionality and safety of Mini Circuit Breakers, making them even more reliable and versatile for various applications.
Mini Circuit Breakers are essential components in electrical systems, providing reliable protection against overloads and short circuits. Understanding their types, applications, and selection criteria is crucial for ensuring the safety and efficiency of electrical installations. By following proper installation and maintenance practices, and staying updated with the latest advancements, you can maximize the benefits of Mini Circuit Breakers in your electrical projects.
