Microscopes are indispensable tools in various scientific fields, enabling researchers to observe and study minute details that are invisible to the naked eye. Understanding the microscope parts labeled is crucial for effective use and maintenance of these instruments. This guide will walk you through the essential components of a microscope, their functions, and how to properly use and care for them.
Understanding the Basic Structure of a Microscope
A microscope is composed of several key parts, each playing a vital role in magnifying and focusing on specimens. The basic structure includes the eyepiece, objective lenses, stage, illumination system, and focusing mechanisms. Familiarizing yourself with these microscope parts labeled will enhance your ability to operate the instrument efficiently.
Eyepiece (Ocular Lens)
The eyepiece, also known as the ocular lens, is the part of the microscope that you look through to view the specimen. It is typically located at the top of the microscope and is usually 10x or 15x magnification. The eyepiece works in conjunction with the objective lenses to provide the total magnification power of the microscope.
Objective Lenses
Objective lenses are the primary lenses used to magnify the specimen. They are located at the bottom of the microscope tube and come in various magnifications, typically ranging from 4x to 100x. The most common objective lenses are:
- 4x (Scanning Objective): Provides a low magnification and a wide field of view, useful for scanning the specimen.
- 10x (Low Power Objective): Offers a moderate magnification and is commonly used for general observations.
- 40x (High Power Objective): Provides high magnification and is used for detailed observations.
- 100x (Oil Immersion Objective): Requires the use of immersion oil for optimal performance and provides the highest magnification.
When using the 100x objective lens, it is essential to apply a drop of immersion oil between the lens and the coverslip to enhance the resolution and clarity of the image.
Stage
The stage is the flat platform where the specimen slide is placed. It is equipped with clips to secure the slide in place. The stage can be moved horizontally and vertically to position the specimen under the objective lenses. Some microscopes also have a mechanical stage with knobs for precise control of the slide's movement.
Illumination System
The illumination system provides the light necessary to view the specimen. It typically consists of a light source, a condenser, and a diaphragm. The light source can be a mirror or an electric bulb, while the condenser focuses the light onto the specimen. The diaphragm controls the amount of light passing through the specimen, allowing for adjustments to enhance contrast and clarity.
Focusing Mechanisms
Focusing mechanisms enable the user to adjust the distance between the objective lenses and the specimen, bringing the image into sharp focus. There are two main focusing mechanisms:
- Coarse Adjustment Knob: Used for initial focusing and moving the stage up and down in larger increments.
- Fine Adjustment Knob: Used for precise focusing and making small adjustments to the stage position.
When using the coarse adjustment knob, it is important to start with the lowest magnification objective lens to avoid damaging the specimen or the microscope.
Arm
The arm is the part of the microscope that connects the base to the tube. It provides support and stability to the microscope and is used to carry the instrument. The arm should be held with one hand while the base is supported with the other hand when moving the microscope.
Base
The base is the bottom part of the microscope that provides stability and support. It houses the illumination system and is designed to be heavy enough to prevent the microscope from tipping over during use. The base should be placed on a flat, stable surface to ensure optimal performance.
Tube
The tube, also known as the body tube, connects the eyepiece to the objective lenses. It houses the optical components that transmit the image from the objective lenses to the eyepiece. The tube should be kept clean and free of dust to maintain the clarity of the image.
Revolving Nosepiece (Turret)
The revolving nosepiece, or turret, is the part of the microscope that holds the objective lenses. It allows the user to rotate the lenses into position for different magnifications. The nosepiece should be handled carefully to avoid damaging the objective lenses.
Condenser
The condenser is located below the stage and focuses light onto the specimen. It is an essential component of the illumination system and plays a crucial role in achieving optimal image quality. The condenser should be adjusted to match the magnification of the objective lens in use.
Diaphragm (Iris)
The diaphragm, also known as the iris, is located below the stage and controls the amount of light that reaches the specimen. It consists of a series of adjustable apertures that can be opened or closed to enhance contrast and clarity. The diaphragm should be adjusted according to the specimen and the magnification being used.
Stage Clips
Stage clips are used to secure the specimen slide in place on the stage. They prevent the slide from moving during observation and ensure that the specimen remains in focus. The clips should be adjusted to fit the size of the slide being used.

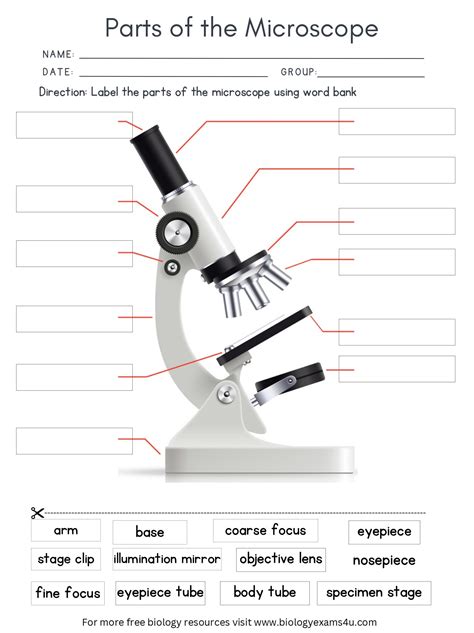

Microscope Parts Labeled
To better understand the microscope parts labeled, refer to the following table, which provides a visual representation of the key components and their functions:
| Part Name | Function |
|---|---|
| Eyepiece (Ocular Lens) | Provides the final magnification and is the part you look through. |
| Objective Lenses | Magnify the specimen and come in various powers (4x, 10x, 40x, 100x). |
| Stage | Holds the specimen slide and can be moved horizontally and vertically. |
| Illumination System | Provides light for viewing the specimen, including the light source, condenser, and diaphragm. |
| Focusing Mechanisms | Adjust the distance between the objective lenses and the specimen for sharp focus. |
| Arm | Connects the base to the tube and provides support and stability. |
| Base | Provides stability and support and houses the illumination system. |
| Tube | Connects the eyepiece to the objective lenses and houses the optical components. |
| Revolving Nosepiece (Turret) | Holds the objective lenses and allows for rotation to different magnifications. |
| Condenser | Focuses light onto the specimen and is part of the illumination system. |
| Diaphragm (Iris) | Controls the amount of light reaching the specimen and enhances contrast. |
| Stage Clips | Secure the specimen slide in place on the stage. |
🔍 Note: Always ensure that the microscope is properly cleaned and maintained to prolong its lifespan and ensure optimal performance.
Proper use and care of a microscope involve understanding its components and their functions. By familiarizing yourself with the microscope parts labeled, you can effectively operate the instrument and achieve clear, detailed observations. Regular maintenance, including cleaning the lenses and adjusting the focusing mechanisms, is essential for maintaining the microscope's performance.
In summary, a microscope is a complex instrument with various components that work together to magnify and focus on specimens. Understanding the microscope parts labeled and their functions is crucial for effective use and maintenance. By following proper procedures and taking care of the microscope, you can ensure that it remains a reliable tool for scientific observation and research.
