Microscopes are indispensable tools in the fields of science, medicine, and education, allowing us to explore the microscopic world with unprecedented detail. Understanding the components of a microscope and how they function is crucial for anyone using this instrument. This post will delve into the intricacies of a microscope diagram with parts, providing a comprehensive guide to the various components and their roles.
Understanding the Basic Structure of a Microscope
A microscope is composed of several key parts, each serving a specific function. Familiarizing yourself with these components is essential for effective use. The basic structure includes the eyepiece, objective lenses, stage, illumination system, and focusing mechanisms.
Eyepiece and Objective Lenses
The eyepiece, also known as the ocular lens, is the lens at the top of the microscope that you look through. It typically has a magnification power of 10x or 15x. The objective lenses, located near the specimen, come in various magnifications, usually ranging from 4x to 100x. The total magnification of the microscope is the product of the eyepiece and objective lens magnifications.
For example, if you use a 10x eyepiece and a 40x objective lens, the total magnification will be 400x.
Stage and Clips
The stage is the flat platform where you place your specimen. It often has clips or mechanical stages to hold the specimen slide in place. The stage can be adjusted vertically to focus the specimen and horizontally to center it within the field of view.
Some microscopes also feature a mechanical stage, which allows for precise movement of the slide using knobs. This is particularly useful for scanning large specimens or for detailed observations.
Illumination System
The illumination system provides the light necessary to view the specimen. It typically includes a light source, such as a bulb or LED, and a condenser lens that focuses the light onto the specimen. The intensity of the light can often be adjusted using a rheostat or a simple on/off switch.
Proper illumination is crucial for obtaining clear and detailed images. Adjusting the condenser and the diaphragm can help optimize the contrast and brightness of the specimen.
Focusing Mechanisms
Microscopes have two main focusing mechanisms: the coarse adjustment knob and the fine adjustment knob. The coarse adjustment knob is used for initial focusing and moving the stage up and down in larger increments. The fine adjustment knob is used for precise focusing, allowing for small, incremental movements.
It is important to use the coarse adjustment knob first to bring the specimen into approximate focus, and then switch to the fine adjustment knob for detailed focusing.
Arm and Base
The arm connects the base to the tube and is used to carry the microscope. It provides stability and support for the entire instrument. The base is the bottom part of the microscope, which houses the illumination system and provides a stable platform for the microscope to rest on.
Ensuring that the microscope is placed on a stable surface is crucial for obtaining clear images and preventing damage to the instrument.

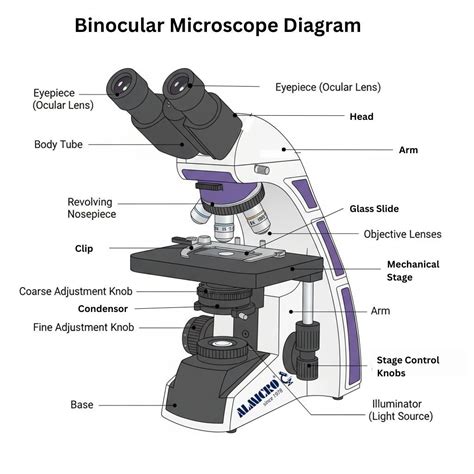

Microscope Diagram With Parts
To better understand the components of a microscope, let's examine a typical microscope diagram with parts. Below is a table outlining the key parts and their functions:
| Part | Function |
|---|---|
| Eyepiece (Ocular Lens) | The lens at the top of the microscope that you look through, typically 10x or 15x magnification. |
| Objective Lenses | Lenses near the specimen with various magnifications, usually ranging from 4x to 100x. |
| Stage | The flat platform where the specimen slide is placed. It can be adjusted vertically and horizontally. |
| Stage Clips | Hold the specimen slide in place on the stage. |
| Illumination System | Provides light for viewing the specimen, including the light source and condenser lens. |
| Coarse Adjustment Knob | Used for initial focusing, moving the stage up and down in larger increments. |
| Fine Adjustment Knob | Used for precise focusing, allowing for small, incremental movements. |
| Arm | Connects the base to the tube and is used to carry the microscope. |
| Base | The bottom part of the microscope, housing the illumination system and providing stability. |
Understanding this diagram is essential for anyone using a microscope, as it helps in identifying and utilizing each component effectively.
🔍 Note: Always ensure that the microscope is properly cleaned and maintained to avoid damage to the lenses and other components.
Microscopes come in various types, each designed for specific purposes. The most common types include compound microscopes, stereoscopes, and electron microscopes. Each type has its unique features and applications.
Compound Microscopes
Compound microscopes are the most commonly used type in educational and laboratory settings. They use a combination of lenses to magnify the specimen, allowing for detailed observations of small structures. These microscopes are ideal for viewing cells, bacteria, and other microscopic organisms.
Compound microscopes typically have a magnification range from 40x to 1000x, making them versatile for various applications.
Stereoscopes
Stereoscopes, also known as dissecting microscopes, are designed for viewing three-dimensional specimens. They use two separate optical paths to provide a stereoscopic view, allowing for depth perception. Stereoscopes are commonly used in fields such as entomology, geology, and forensic science.
These microscopes typically have lower magnification powers compared to compound microscopes, ranging from 10x to 40x.
Electron Microscopes
Electron microscopes use a beam of electrons instead of light to produce images of the specimen. They offer much higher magnification and resolution compared to light microscopes, making them ideal for studying very small structures, such as viruses and molecular structures.
There are two main types of electron microscopes: transmission electron microscopes (TEM) and scanning electron microscopes (SEM). TEMs provide detailed internal structures, while SEMs offer high-resolution surface images.
Electron microscopes are more complex and expensive than light microscopes, requiring specialized training and maintenance.
Microscopes are essential tools in various scientific and medical fields, enabling researchers to explore the microscopic world with precision and detail. Understanding the components of a microscope and their functions is crucial for effective use. By familiarizing yourself with a microscope diagram with parts, you can enhance your observational skills and gain deeper insights into the microscopic realm.
In summary, microscopes are composed of several key parts, including the eyepiece, objective lenses, stage, illumination system, and focusing mechanisms. Each component plays a vital role in the functioning of the microscope, and understanding their roles is essential for effective use. Whether you are using a compound microscope, stereoscope, or electron microscope, knowing the parts and their functions will enhance your observational skills and enable you to explore the microscopic world with confidence.
