Soldering is a fundamental skill in electronics, essential for creating reliable connections between components. One of the critical aspects of soldering is understanding the melt point of solder, which determines the temperature at which the solder transitions from a solid to a liquid state. This transition is crucial for ensuring strong and durable joints. In this post, we will delve into the importance of the melt point of solder, different types of solder, and best practices for achieving optimal soldering results.
Understanding the Melt Point of Solder
The melt point of solder is the temperature at which the solder changes from a solid to a liquid. This property is vital because it affects the ease of soldering and the quality of the joint. Different types of solder have varying melt points, which are chosen based on the specific requirements of the project. For instance, lead-free solders generally have higher melt points compared to lead-based solders.
When selecting solder, it is essential to consider the melt point of solder in relation to the components being soldered. Some components, such as those made of plastic, may be damaged by high temperatures. Therefore, choosing a solder with an appropriate melt point is crucial to prevent component damage and ensure a successful soldering process.
Types of Solder and Their Melt Points
Solder comes in various types, each with its unique properties and melt points of solder. The most common types include lead-based solder, lead-free solder, and specialty solders. Understanding the characteristics of each type can help you make an informed decision for your soldering projects.
Lead-Based Solder
Lead-based solder, often referred to as 60/40 solder, consists of 60% tin and 40% lead. This type of solder has a relatively low melt point of solder, typically around 183°C (361°F). Lead-based solder is known for its ease of use and excellent wetting properties, making it a popular choice for many applications. However, due to environmental and health concerns, the use of lead-based solder has been restricted in many industries.
Lead-Free Solder
Lead-free solder is an environmentally friendly alternative to lead-based solder. The most common lead-free solder is the SnAgCu (tin-silver-copper) alloy, which has a melt point of solder around 217°C to 227°C (423°F to 441°F). Lead-free solder is widely used in electronics manufacturing due to its compliance with environmental regulations and its reliability in creating strong joints.
Specialty Solders

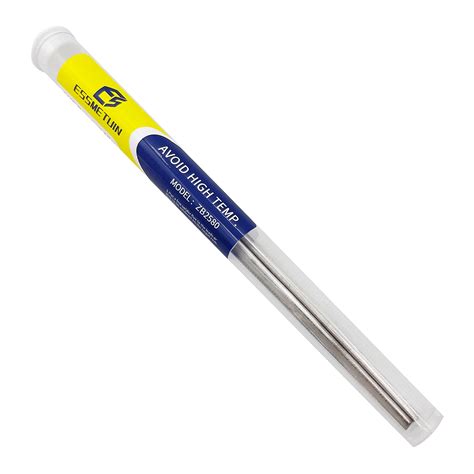

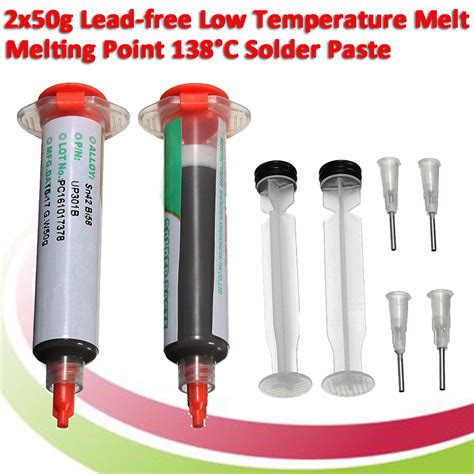

Specialty solders are designed for specific applications and often have unique melt points of solder. For example, low-temperature solders, such as those used in rework and repair, have melt points below 150°C (302°F). These solders are ideal for applications where heat sensitivity is a concern. High-temperature solders, on the other hand, have melt points above 300°C (572°F) and are used in applications requiring extreme durability, such as in automotive and aerospace industries.
Factors Affecting the Melt Point of Solder
Several factors can influence the melt point of solder, including the composition of the solder, the presence of impurities, and the soldering technique used. Understanding these factors can help you achieve better soldering results and avoid common pitfalls.
Composition of the Solder
The composition of the solder plays a significant role in determining its melt point of solder. Different alloys have varying melt points, and the addition of elements like silver, copper, or bismuth can alter the melting behavior. For example, adding silver to tin can increase the melt point, while adding bismuth can lower it.
Impurities in the Solder
Impurities in the solder can also affect its melt point of solder. Contaminants such as oxides, flux residues, or other metals can change the melting behavior and reduce the quality of the solder joint. It is essential to use high-quality solder and maintain a clean work environment to minimize the impact of impurities.
Soldering Technique
The soldering technique used can influence the melt point of solder and the overall quality of the joint. Proper heating and cooling rates, as well as the use of appropriate flux, are crucial for achieving a strong and reliable solder joint. Overheating or underheating the solder can lead to poor wetting, cold joints, or component damage.
Best Practices for Soldering
Achieving optimal soldering results requires following best practices that ensure the melt point of solder is reached and maintained correctly. Here are some key practices to consider:
Preparing the Work Area
Before starting the soldering process, ensure your work area is clean and well-ventilated. Remove any dust, dirt, or contaminants from the components and the soldering iron tip. Use a flux to clean the surfaces and improve wetting.
Selecting the Right Solder
Choose a solder with an appropriate melt point of solder for your specific application. Consider the components being soldered and their heat sensitivity. For example, use lead-free solder for environmental compliance and lead-based solder for ease of use in non-critical applications.
Heating the Solder Joint
Apply heat evenly to the solder joint to ensure the melt point of solder is reached uniformly. Use a soldering iron with the correct wattage and tip size for your application. Avoid overheating the joint, as this can damage the components or cause the solder to flow poorly.
Applying Flux
Flux is essential for removing oxides and improving the wetting of the solder. Apply a small amount of flux to the joint before heating. This will help the solder flow smoothly and create a strong bond.
Cooling the Joint
After the solder has flowed and formed a joint, allow it to cool naturally. Avoid using forced air or water to cool the joint, as this can cause thermal shock and weaken the bond. Allow the joint to cool slowly to ensure maximum strength and durability.
🔍 Note: Always follow safety guidelines when soldering, including wearing protective gear and working in a well-ventilated area.
Common Soldering Issues and Solutions
Even with the best practices, soldering issues can arise. Understanding common problems and their solutions can help you troubleshoot and achieve better results.
Cold Joints
Cold joints occur when the solder does not reach its melt point of solder and does not flow properly. This results in a weak and unreliable joint. To avoid cold joints, ensure the soldering iron is hot enough and apply heat evenly to the joint.
Overheating
Overheating can damage components and cause the solder to flow poorly. To prevent overheating, use a soldering iron with the correct wattage and tip size, and apply heat for the shortest duration possible.
Flux Residue
Flux residue can leave a corrosive layer on the solder joint, reducing its reliability. After soldering, clean the joint with isopropyl alcohol or a flux remover to remove any residue.
🔍 Note: Regularly clean your soldering iron tip to maintain its performance and extend its lifespan.
Applications of Soldering
Soldering is used in a wide range of applications, from electronics and automotive to aerospace and telecommunications. Understanding the specific requirements of each application can help you choose the right solder and technique.
Electronics
In electronics, soldering is used to connect components on printed circuit boards (PCBs). The melt point of solder is crucial in this application, as components can be sensitive to high temperatures. Lead-free solder is commonly used due to environmental regulations and its reliability.
Automotive
In the automotive industry, soldering is used to connect wires and components in electrical systems. High-temperature solders are often used to ensure durability and reliability in harsh conditions.
Aerospace
In aerospace applications, soldering is used to connect critical components that must withstand extreme temperatures and vibrations. Specialty solders with high melt points of solder are used to ensure the reliability of these connections.
Conclusion
Understanding the melt point of solder is essential for achieving strong and reliable solder joints. By choosing the right type of solder, following best practices, and troubleshooting common issues, you can ensure successful soldering results in various applications. Whether you are working in electronics, automotive, or aerospace, selecting the appropriate solder and technique will help you create durable and reliable connections.
