Medium Voltage Cable

Medium voltage cables are essential components in electrical power distribution systems, facilitating the transmission of electrical energy from power plants to substations and ultimately to end-users. These cables are designed to handle voltages ranging from 1 kV to 69 kV, making them crucial for both industrial and commercial applications. Understanding the types, applications, and maintenance of medium voltage cables is vital for ensuring efficient and safe power distribution.

Table of Contents

Understanding Medium Voltage Cables

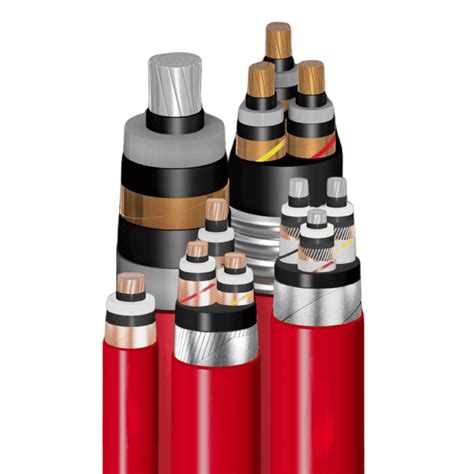

Medium voltage cables are specifically engineered to transmit electrical power over medium distances with minimal loss. They are typically used in applications where the voltage requirements are higher than those of low-voltage systems but lower than high-voltage transmission lines. These cables are composed of several layers, each serving a specific function:

Conductor: Usually made of copper or aluminum, the conductor carries the electrical current.
Insulation: Surrounding the conductor, the insulation layer is made of materials like cross-linked polyethylene (XLPE) or ethylene propylene rubber (EPR), which prevent electrical leakage and ensure safety.
Semi-conductive Screens: These layers help to distribute the electrical field evenly and protect the insulation from partial discharges.

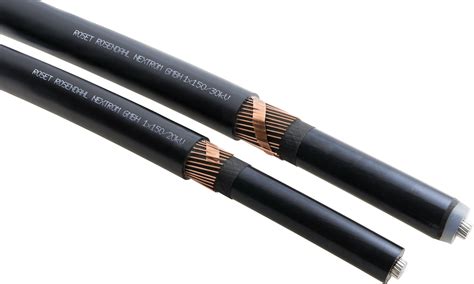

Metallic Shield: Typically made of copper or aluminum tape, this layer provides additional protection against electrical interference and mechanical damage.
Outer Jacket: The outermost layer, usually made of PVC or other durable materials, protects the cable from environmental factors such as moisture, chemicals, and physical damage.

Types of Medium Voltage Cables

Medium voltage cables come in various types, each suited for different applications and environmental conditions. The most common types include:

XLPE Insulated Cables: These cables use cross-linked polyethylene as the insulation material, offering excellent electrical and mechanical properties. They are widely used in underground and submarine applications due to their durability and resistance to environmental factors.
EPR Insulated Cables: Ethylene propylene rubber insulated cables are known for their flexibility and resistance to heat and chemicals. They are often used in industrial settings where flexibility and chemical resistance are crucial.
Paper Insulated Lead Covered (PILC) Cables: These cables use paper insulation and a lead sheath for protection. They are commonly used in older power distribution systems and are known for their reliability and longevity.

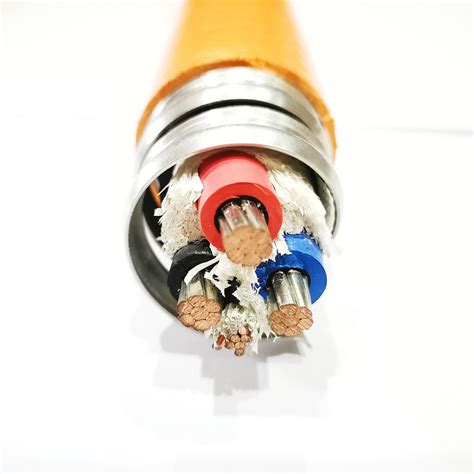

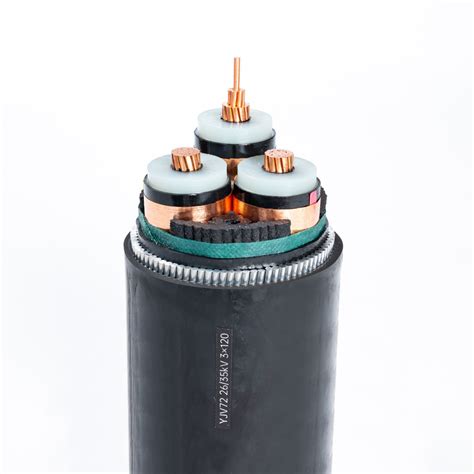

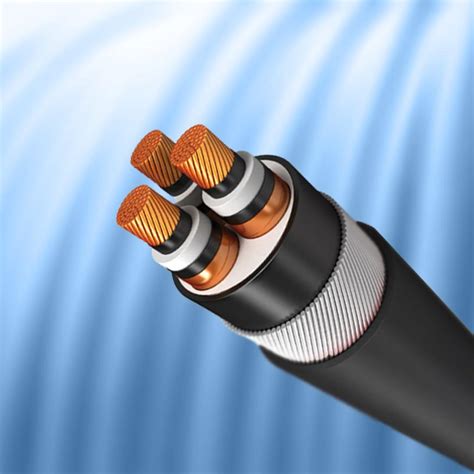

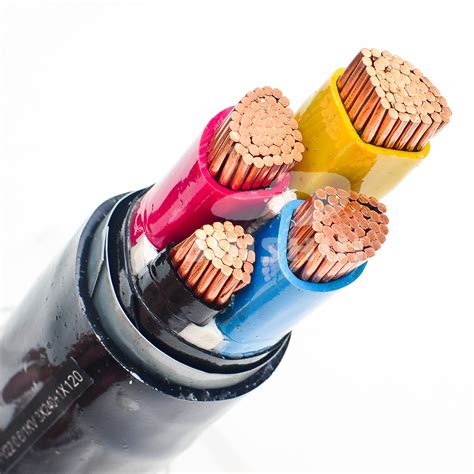

Armored Cables: These cables have an additional layer of metallic armor, usually made of steel or aluminum, providing extra protection against mechanical damage. They are ideal for applications where the cable is exposed to harsh conditions or physical stress.

Applications of Medium Voltage Cables

Medium voltage cables are used in a wide range of applications, including:

Power Distribution: These cables are essential for transmitting power from substations to industrial facilities, commercial buildings, and residential areas.
Industrial Settings: Medium voltage cables are used in factories, plants, and other industrial settings to power machinery and equipment.
Renewable Energy: They are used in wind farms, solar parks, and other renewable energy installations to transmit power from the generation source to the grid.
Submarine and Underground Installations: Medium voltage cables are designed to withstand the harsh conditions of underwater and underground environments, making them suitable for submarine and underground power transmission.

Installation and Maintenance of Medium Voltage Cables

Proper installation and maintenance of medium voltage cables are crucial for ensuring their longevity and reliability. Here are some key steps and considerations:

Installation Guidelines

When installing medium voltage cables, it is essential to follow these guidelines:

Site Preparation: Ensure the installation site is clear of obstacles and debris. The area should be level and free from sharp objects that could damage the cable.
Cable Routing: Plan the cable route carefully to avoid sharp bends and excessive stress. Use appropriate supports and conduits to protect the cable.
Termination and Jointing: Use high-quality termination kits and jointing materials to ensure a secure and reliable connection. Follow manufacturer guidelines for proper installation.
Testing: Conduct thorough testing, including insulation resistance, continuity, and partial discharge tests, to ensure the cable is functioning correctly.

🔧 Note: Always use qualified personnel for the installation and testing of medium voltage cables to ensure safety and compliance with industry standards.

Maintenance Tips

Maintaining medium voltage cables involves regular inspections and preventive measures to extend their lifespan and prevent failures. Key maintenance tips include:

Regular Inspections: Conduct visual inspections to check for signs of damage, such as cracks, corrosion, or physical wear. Use infrared thermography to detect hot spots that may indicate insulation degradation.
Environmental Protection: Ensure the cables are protected from environmental factors such as moisture, chemicals, and extreme temperatures. Use appropriate cable trays, conduits, and protective coatings.
Preventive Maintenance: Schedule regular maintenance activities, such as cleaning, lubrication, and testing, to keep the cables in optimal condition. Replace any damaged or worn-out components promptly.
Documentation: Maintain detailed records of inspections, maintenance activities, and test results. This documentation is essential for tracking the cable's performance and planning future maintenance.

📝 Note: Keep a log of all maintenance activities and inspections to ensure a comprehensive record of the cable's condition and performance over time.

Safety Considerations for Medium Voltage Cables

Handling and working with medium voltage cables require strict adherence to safety protocols to prevent accidents and injuries. Key safety considerations include:

Personal Protective Equipment (PPE): Use appropriate PPE, including insulated gloves, safety glasses, and protective clothing, when handling medium voltage cables.
Lockout/Tagout Procedures: Follow lockout/tagout procedures to ensure that the power is de-energized and cannot be accidentally turned on during maintenance or repair work.
Grounding and Bonding: Properly ground and bond all equipment and tools to prevent electrical hazards and ensure safety.
Training and Certification: Ensure that all personnel working with medium voltage cables are properly trained and certified in electrical safety and cable handling procedures.

⚠️ Note: Always prioritize safety when working with medium voltage cables. Follow all safety protocols and guidelines to prevent accidents and ensure the well-being of personnel.

Future Trends in Medium Voltage Cable Technology

The field of medium voltage cable technology is continually evolving, driven by advancements in materials, manufacturing processes, and environmental considerations. Some of the emerging trends include:

Advanced Insulation Materials: New insulation materials, such as high-temperature superconductors and nanocomposites, are being developed to improve the performance and efficiency of medium voltage cables.
Smart Cables: Integration of sensors and monitoring systems into medium voltage cables allows for real-time monitoring of cable conditions, enabling predictive maintenance and reducing downtime.
Sustainable Materials: There is a growing focus on using eco-friendly materials and manufacturing processes to reduce the environmental impact of medium voltage cables. This includes the use of recycled materials and biodegradable insulation.
High-Voltage Direct Current (HVDC) Cables: HVDC cables are being developed for medium voltage applications, offering advantages such as lower losses and improved power transmission efficiency over long distances.

These trends highlight the ongoing innovation in medium voltage cable technology, aimed at enhancing performance, reliability, and sustainability.

Medium voltage cables play a critical role in modern power distribution systems, enabling the efficient and safe transmission of electrical energy. Understanding the types, applications, installation, maintenance, and safety considerations of these cables is essential for ensuring reliable power supply and minimizing downtime. As technology continues to advance, the future of medium voltage cables looks promising, with innovations aimed at improving performance, sustainability, and overall efficiency.
