Measuring Continuity With Multimeter

Electrical continuity is a fundamental concept in electronics and electrical engineering, referring to the uninterrupted flow of electric current through a conductor. Measuring continuity with a multimeter is a crucial skill for anyone working with electrical circuits. This process helps identify breaks, shorts, or other issues in wires, connections, and components. Understanding how to effectively use a multimeter for this purpose can save time and prevent potential hazards.

Table of Contents

Understanding Continuity and Multimeters

Before diving into the steps of measuring continuity with a multimeter, it's essential to grasp the basics of continuity and the functionality of a multimeter.

What is Continuity?

Continuity in an electrical circuit means that there is an uninterrupted path for the electric current to flow from one point to another. In simpler terms, it ensures that the circuit is complete and that there are no breaks or open circuits. Continuity is crucial for the proper functioning of electrical devices and systems.

What is a Multimeter?

A multimeter is a versatile tool used to measure various electrical properties, including voltage, current, and resistance. It is an indispensable tool for electricians, engineers, and hobbyists. Multimeters come in both analog and digital varieties, with digital multimeters being more common due to their accuracy and ease of use.

How to Measure Continuity with a Multimeter

Measuring continuity with a multimeter is a straightforward process. Here are the steps to follow:

Step 1: Prepare Your Multimeter

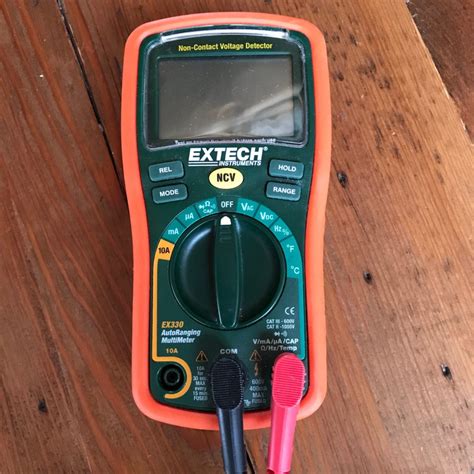

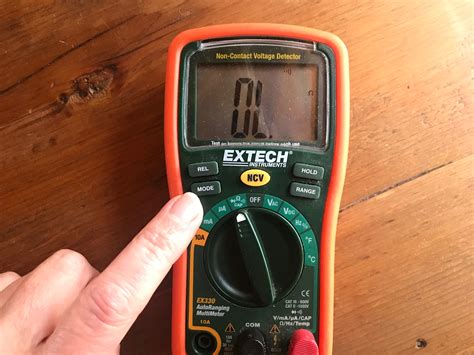

Ensure your multimeter is set to the continuity test mode. This is usually indicated by a symbol that looks like a speaker or a diode with a line through it. If your multimeter does not have a dedicated continuity mode, you can use the resistance mode (ohms) to achieve similar results.

Step 2: Turn Off the Power

Before testing for continuity, make sure the circuit or device is turned off and unplugged from any power source. This is crucial for safety reasons, as testing a live circuit can be dangerous.

Step 3: Connect the Probes

Insert the red probe into the positive (VΩmA) socket and the black probe into the negative (COM) socket on the multimeter. These probes will be used to touch the points in the circuit you want to test.

Step 4: Touch the Probes Together

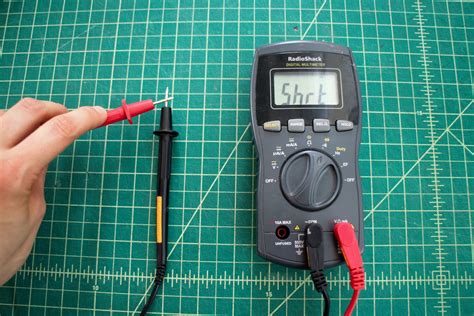

Before testing the circuit, touch the probes together to ensure the multimeter is functioning correctly. You should hear a beep or see a reading close to zero ohms, indicating that the multimeter is working properly.

Step 5: Test the Circuit

Place one probe on one end of the wire or component you want to test and the other probe on the opposite end. If the circuit is continuous, you should hear a beep or see a reading close to zero ohms. If there is no beep or the reading is very high, it indicates a break in the circuit.

Interpreting the Results

Interpreting the results of a continuity test is straightforward. Here are the key points to consider:

Beep or Low Resistance: If you hear a beep or see a reading close to zero ohms, it indicates that the circuit is continuous and there are no breaks.
No Beep or High Resistance: If there is no beep and the reading is very high, it indicates a break in the circuit. This could be due to a broken wire, a loose connection, or a faulty component.

It's important to note that the resistance reading can vary slightly depending on the length and gauge of the wire, as well as the type of component being tested. However, a significant increase in resistance or the absence of a beep is a clear indication of a problem.

Common Applications of Continuity Testing

Continuity testing is used in a variety of applications, including:

Wiring and Cabling: Testing wires and cables to ensure they are not broken or damaged.
Electrical Components: Checking components such as switches, relays, and fuses to ensure they are functioning correctly.
PCB Troubleshooting: Identifying breaks or shorts in printed circuit boards (PCBs).
Automotive Diagnostics: Testing electrical systems in vehicles to diagnose issues.

Tips for Effective Continuity Testing

To ensure accurate and safe continuity testing, follow these tips:

Use High-Quality Probes: Ensure your multimeter probes are in good condition and make proper contact with the points being tested.
Check for Corrosion: Inspect the points being tested for any signs of corrosion, which can affect continuity.
Test in a Controlled Environment: Conduct tests in a controlled environment to minimize interference from external factors.
Double-Check Connections: Ensure all connections are secure and there are no loose wires or components.

🔍 Note: Always double-check your multimeter settings and ensure the circuit is completely powered down before testing.

Troubleshooting Common Issues

Even with careful testing, you may encounter issues. Here are some common problems and their solutions:

No Beep or High Resistance: If you don't hear a beep or see a high resistance reading, check for loose connections, broken wires, or faulty components.
False Positives: If you hear a beep but the circuit is not functioning correctly, there may be a short circuit or a faulty component causing the false reading.
Interference: External interference can affect your readings. Ensure you are testing in a controlled environment and away from other electrical devices.

If you continue to experience issues, it may be helpful to consult a professional or use additional diagnostic tools to pinpoint the problem.

Safety Precautions

Safety is paramount when working with electrical circuits. Here are some essential safety precautions to keep in mind:

Turn Off Power: Always ensure the circuit or device is turned off and unplugged from any power source before testing.
Use Insulated Probes: Ensure your multimeter probes are insulated to prevent accidental contact with live circuits.
Avoid Wet Conditions: Do not perform continuity tests in wet or damp conditions, as this can increase the risk of electrical shock.
Wear Protective Gear: Use appropriate protective gear, such as gloves and safety glasses, when working with electrical circuits.

⚠️ Note: Never test live circuits unless you are trained and equipped to do so safely.

Measuring continuity with a multimeter is a fundamental skill for anyone working with electrical circuits. By following the steps outlined above and adhering to safety precautions, you can effectively identify and troubleshoot issues in your electrical systems. Whether you are a professional electrician, an engineer, or a hobbyist, mastering this skill will enhance your ability to work with electrical components and circuits.

In summary, continuity testing is a vital process that ensures the proper functioning of electrical circuits. By understanding the basics of continuity and using a multimeter effectively, you can identify breaks, shorts, and other issues in your electrical systems. Always prioritize safety and follow best practices to ensure accurate and reliable results. With practice and attention to detail, you can become proficient in measuring continuity with a multimeter, making your work more efficient and effective.
