In the realm of quality management and process improvement, Measurement System Analysis (MSA) stands as a critical component. It ensures that the tools and methods used to collect data are reliable and accurate. This analysis is essential for making informed decisions, improving processes, and maintaining high-quality standards. By understanding and implementing MSA, organizations can significantly enhance their operational efficiency and product quality.

Table of Contents

Understanding Measurement System Analysis

Measurement System Analysis (MSA) is a comprehensive approach to evaluating the performance of measurement systems. It involves assessing the accuracy, precision, and stability of the tools and methods used to gather data. The primary goal of MSA is to ensure that the data collected is reliable and can be trusted for decision-making processes. This analysis is particularly important in industries where precision and accuracy are paramount, such as manufacturing, healthcare, and aerospace.

MSA typically involves several key steps, including:

Identifying the measurement system to be analyzed.
Collecting data using the measurement system.
Analyzing the data to assess the system's performance.
Making necessary adjustments to improve the measurement system.

Importance of Measurement System Analysis

The importance of Measurement System Analysis (MSA) cannot be overstated. It plays a crucial role in ensuring that the data collected is accurate and reliable. This, in turn, leads to better decision-making, improved process control, and enhanced product quality. Here are some key reasons why MSA is essential:

Data Reliability: Accurate and reliable data is the foundation of any quality management system. MSA ensures that the data collected is trustworthy, which is vital for making informed decisions.
Process Improvement: By identifying and addressing issues in the measurement system, organizations can improve their processes, leading to increased efficiency and reduced waste.
Cost Savings: Reliable measurement systems help in identifying and resolving issues early, which can lead to significant cost savings by reducing rework and scrap.
Customer Satisfaction: High-quality products and services, achieved through accurate measurements, lead to increased customer satisfaction and loyalty.

Key Components of Measurement System Analysis

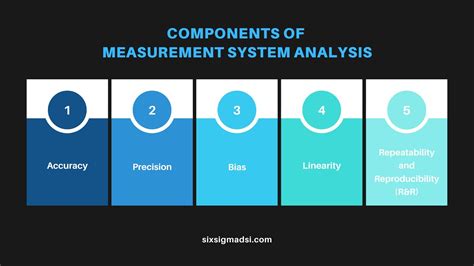

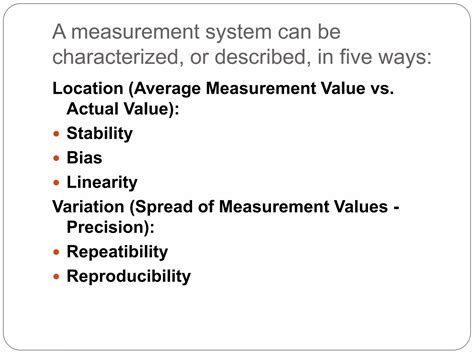

Measurement System Analysis (MSA) involves several key components that work together to ensure the reliability and accuracy of the measurement system. These components include:

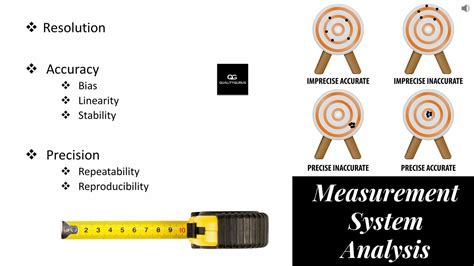

Accuracy: This refers to how close the measured value is to the actual value. Accuracy is crucial for ensuring that the data collected is representative of the true state of the process.
Precision: Precision refers to the consistency of the measurements. A precise measurement system produces consistent results over time.
Stability: Stability ensures that the measurement system performs consistently over time. A stable system produces reliable results regardless of external factors.
Repeatability: Repeatability measures the variation in measurements taken by the same operator using the same equipment under the same conditions.
Reproducibility: Reproducibility measures the variation in measurements taken by different operators using the same equipment under the same conditions.

Steps in Conducting Measurement System Analysis

Conducting a Measurement System Analysis (MSA) involves several systematic steps. Each step is designed to assess different aspects of the measurement system to ensure its reliability and accuracy. Here are the key steps involved:

Step 1: Define the Measurement System

The first step in MSA is to clearly define the measurement system that will be analyzed. This includes identifying the tools, equipment, and methods used to collect data. It is essential to have a thorough understanding of the measurement system to ensure that the analysis is comprehensive and accurate.

Step 2: Collect Data

Once the measurement system is defined, the next step is to collect data using the system. This involves taking multiple measurements of the same item under controlled conditions. The data collected should be representative of the typical conditions under which the measurement system is used.

Step 3: Analyze the Data

The collected data is then analyzed to assess the performance of the measurement system. This analysis involves calculating various statistical measures, such as mean, standard deviation, and variance. The results of the analysis help in identifying any issues or inconsistencies in the measurement system.

Step 4: Make Adjustments

Based on the analysis, necessary adjustments are made to improve the measurement system. This may involve calibrating the equipment, training operators, or modifying the measurement methods. The goal is to ensure that the measurement system is accurate, precise, and stable.

🔍 Note: It is important to document all steps and findings during the MSA process to ensure transparency and accountability.

Common Tools and Techniques Used in Measurement System Analysis

Several tools and techniques are commonly used in Measurement System Analysis (MSA) to assess the performance of measurement systems. These tools help in identifying and addressing issues in the measurement system, ensuring its reliability and accuracy. Some of the most commonly used tools and techniques include:

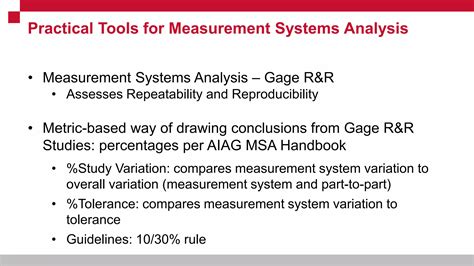

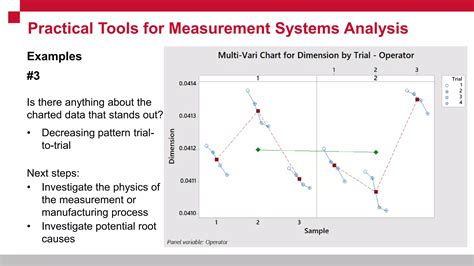

Gage R&R Study: This study is used to assess the repeatability and reproducibility of a measurement system. It involves taking multiple measurements of the same item by different operators using the same equipment.

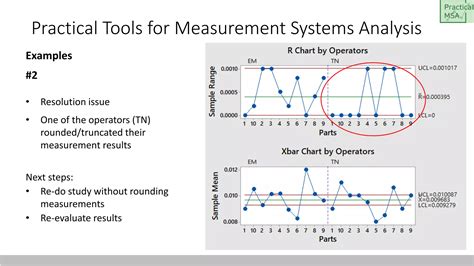

Control Charts: Control charts are used to monitor the stability of a measurement system over time. They help in identifying any trends or patterns that may indicate issues in the system.
Capability Studies: Capability studies are used to assess the ability of a measurement system to meet specified requirements. They involve comparing the measurement system's performance against predefined standards.
Bias Studies: Bias studies are used to assess the accuracy of a measurement system. They involve comparing the measured values against known standards to identify any systematic errors.

Case Study: Implementing Measurement System Analysis in a Manufacturing Plant

To illustrate the practical application of Measurement System Analysis (MSA), let's consider a case study of a manufacturing plant that produces precision components. The plant was experiencing issues with product quality, leading to increased customer complaints and returns. The management decided to conduct an MSA to identify and address the root causes of the problem.

The MSA process involved the following steps:

Defining the measurement system used to measure the critical dimensions of the components.
Collecting data by taking multiple measurements of the same components using different operators and equipment.
Analyzing the data to assess the accuracy, precision, and stability of the measurement system.
Identifying issues such as calibration errors, operator variability, and equipment wear.
Making necessary adjustments, including recalibrating the equipment, training operators, and implementing a regular maintenance schedule.

The results of the MSA showed significant improvements in the measurement system's performance. The plant saw a reduction in product defects, improved customer satisfaction, and increased operational efficiency. This case study highlights the importance of MSA in ensuring high-quality products and processes.

Challenges in Measurement System Analysis

While Measurement System Analysis (MSA) is a powerful tool for improving measurement systems, it also presents several challenges. Some of the common challenges include:

Complexity: MSA can be complex and time-consuming, requiring specialized knowledge and skills. Organizations may need to invest in training and resources to conduct effective MSA.
Cost: Implementing MSA can be costly, especially for small and medium-sized enterprises. The cost of equipment, training, and data analysis can be a significant barrier.
Data Quality: The accuracy and reliability of MSA depend on the quality of the data collected. Poor data quality can lead to inaccurate conclusions and ineffective improvements.
Resistance to Change: Organizations may face resistance to change from employees who are accustomed to existing measurement methods. Effective communication and training are essential to overcome this resistance.

Despite these challenges, the benefits of MSA far outweigh the costs. By investing in MSA, organizations can achieve significant improvements in product quality, operational efficiency, and customer satisfaction.

Best Practices for Effective Measurement System Analysis

To ensure the effectiveness of Measurement System Analysis (MSA), it is important to follow best practices. These practices help in conducting a comprehensive and accurate analysis, leading to meaningful improvements in the measurement system. Some of the best practices include:

Clear Objectives: Define clear objectives for the MSA to ensure that the analysis is focused and relevant to the organization's needs.
Comprehensive Planning: Develop a detailed plan for conducting the MSA, including the scope, methodology, and resources required.
Data Collection: Collect high-quality data using standardized methods and equipment to ensure the accuracy and reliability of the analysis.
Statistical Analysis: Use appropriate statistical tools and techniques to analyze the data and identify issues in the measurement system.
Continuous Improvement: Implement a continuous improvement process to regularly review and update the measurement system based on the findings of the MSA.

By following these best practices, organizations can conduct effective MSA and achieve significant improvements in their measurement systems.

Future Trends in Measurement System Analysis

The field of Measurement System Analysis (MSA) is continually evolving, driven by advancements in technology and data analytics. Some of the future trends in MSA include:

Automation: The use of automated measurement systems and data collection tools is becoming more prevalent. Automation can improve the accuracy and efficiency of MSA, reducing the need for manual intervention.
Data Analytics: Advanced data analytics techniques, such as machine learning and artificial intelligence, are being used to analyze measurement data. These techniques can provide deeper insights into the performance of measurement systems and identify hidden patterns.
Integration: Integration of MSA with other quality management systems, such as Six Sigma and Lean, can provide a holistic approach to process improvement. This integration can lead to more comprehensive and effective improvements.
Real-Time Monitoring: Real-time monitoring of measurement systems using IoT (Internet of Things) devices can provide immediate feedback on the performance of the system. This can help in identifying and addressing issues promptly, ensuring continuous improvement.

These trends highlight the ongoing evolution of MSA and its potential to drive significant improvements in measurement systems and process quality.

In conclusion, Measurement System Analysis (MSA) is a critical component of quality management and process improvement. By ensuring the reliability and accuracy of measurement systems, organizations can make informed decisions, improve processes, and maintain high-quality standards. The key to effective MSA lies in understanding its components, following best practices, and leveraging advanced tools and techniques. As the field continues to evolve, organizations that embrace MSA will be well-positioned to achieve sustained success and competitive advantage.
