Measure Tape Reading

Mastering the art of measure tape reading is a fundamental skill for anyone involved in construction, woodworking, or DIY projects. Whether you're a professional carpenter or a hobbyist, understanding how to read a measure tape accurately is crucial for ensuring precise measurements and successful project outcomes. This guide will walk you through the essentials of measure tape reading, from understanding the basic components to advanced techniques for accurate measurements.

Table of Contents

Understanding the Basics of a Measure Tape

A measure tape, also known as a tape measure, is a flexible ruler used to measure distances. It consists of several key components:

Blade: The flexible, retractable strip that contains the measurement markings.
Hook: The metal hook at the end of the blade, which helps in taking accurate measurements.
Locking Mechanism: A button or lever that locks the blade in place for stability during measurements.
End Hook: The part of the hook that is used to measure from the edge of a surface.

Familiarizing yourself with these components will help you use the measure tape more effectively.

Reading the Measure Tape

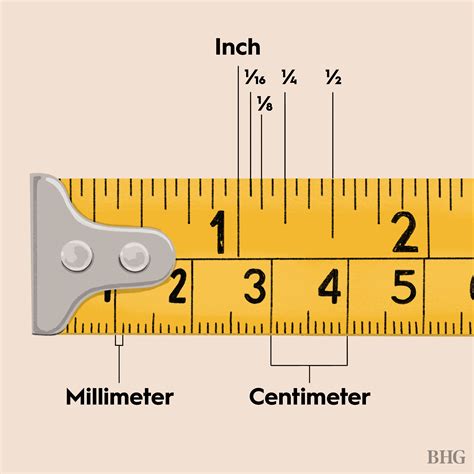

Reading a measure tape involves understanding the markings and units of measurement. Most measure tapes are marked in both imperial (inches and feet) and metric (centimeters and meters) units. Here’s a breakdown of the common markings:

Inches: Each inch is divided into 16ths, with larger divisions at every half-inch and quarter-inch.
Feet: Every 12 inches represents one foot, often marked with a larger number.
Centimeters: Each centimeter is divided into millimeters, with larger divisions at every 10 centimeters.
Meters: Every 100 centimeters represents one meter, often marked with a larger number.

To read the measure tape accurately, follow these steps:

Extend the blade to the desired length.
Align the hook with the starting point of your measurement.
Read the markings on the blade, noting the whole numbers, fractions, and decimal points as applicable.
Lock the blade in place using the locking mechanism for stability.

For example, if you need to measure 2 feet and 7 inches, you would look for the 2-foot mark and then count 7 inches beyond that point.

🔍 Note: Always ensure the measure tape is straight and taut to avoid inaccurate readings.

Advanced Measure Tape Reading Techniques

Beyond the basics, there are several advanced techniques that can enhance your measure tape reading skills:

Measuring Angles

Measuring angles accurately is crucial for projects that involve cutting or fitting materials at specific angles. Here’s how to do it:

Place the measure tape along the edge of the material.
Use a protractor or angle finder to determine the angle.
Mark the angle on the material using a pencil.
Cut along the marked line using a saw or other cutting tool.

Measuring Curved Surfaces

Measuring curved surfaces can be challenging, but it’s essential for projects like installing crown molding or fitting curved materials. Here’s a step-by-step guide:

Use a flexible measure tape designed for curved surfaces.
Place the tape along the curve, ensuring it follows the contour accurately.
Mark the starting and ending points on the tape.
Read the measurement from the tape.

For more precise measurements, you can use a string or a piece of rope to trace the curve and then measure the string with a straight measure tape.

🔍 Note: Always double-check your measurements to ensure accuracy, especially when working with curved surfaces.

Common Mistakes to Avoid

Even experienced users can make mistakes when reading a measure tape. Here are some common errors to avoid:

Not Accounting for the Hook: The hook at the end of the measure tape can add or subtract a small amount from your measurement. Always ensure the hook is properly aligned with the starting point.
Ignoring the Locking Mechanism: Failing to lock the blade in place can lead to inaccurate readings, especially when measuring longer distances.
Misreading the Markings: Double-check the markings to ensure you’re reading the correct units and fractions.
Not Keeping the Tape Straight: A bent or twisted tape can result in inaccurate measurements. Always keep the tape straight and taut.

Practical Applications of Measure Tape Reading

Measure tape reading is essential in various fields and projects. Here are some practical applications:

Construction

In construction, accurate measurements are crucial for ensuring that buildings are structurally sound and aesthetically pleasing. Measure tapes are used to:

Measure the dimensions of walls, floors, and ceilings.
Determine the length and width of beams and joists.
Ensure that doors and windows are properly aligned.

Woodworking

Woodworking projects require precise measurements to ensure that pieces fit together perfectly. Measure tapes are used to:

Measure the length and width of wood pieces.
Determine the angles for cuts and joints.
Ensure that furniture and other woodwork items are symmetrical and balanced.

DIY Projects

For DIY enthusiasts, a measure tape is an indispensable tool. It is used for:

Measuring materials for home improvement projects.
Ensuring that shelves, cabinets, and other fixtures are properly aligned.
Creating accurate layouts for landscaping and gardening projects.

Tips for Maintaining Your Measure Tape

To ensure the longevity and accuracy of your measure tape, follow these maintenance tips:

Store Properly: Keep your measure tape in a dry, cool place to prevent damage from moisture and heat.
Clean Regularly: Wipe the blade with a soft cloth to remove dirt and debris.
Avoid Dropping: Dropping the measure tape can damage the blade and affect its accuracy.
Check for Wear: Regularly inspect the blade for signs of wear or damage, such as bent or missing markings.

By following these tips, you can extend the life of your measure tape and ensure accurate measurements for all your projects.

🔍 Note: Always handle your measure tape with care to avoid accidental damage.

Conclusion

Mastering measure tape reading is a skill that will serve you well in various projects, from construction and woodworking to DIY endeavors. By understanding the basic components of a measure tape, reading the markings accurately, and applying advanced techniques, you can ensure precise measurements and successful project outcomes. Whether you’re a professional or a hobbyist, investing time in learning and practicing measure tape reading will pay off in the long run. Always remember to double-check your measurements and maintain your measure tape properly to achieve the best results.
