Meaning Of Capacitive

Capacitors are fundamental components in electronics, playing a crucial role in various circuits by storing and releasing electrical energy. Understanding the meaning of capacitive behavior is essential for anyone delving into electronics, as it underpins the functionality of many devices and systems. This post will explore the basics of capacitive behavior, its applications, and the factors that influence it.

Table of Contents

Understanding Capacitive Behavior

Capacitive behavior refers to the ability of a capacitor to store electrical charge. A capacitor consists of two conductive plates separated by a dielectric material. When a voltage is applied across the plates, an electric field is created, and charge accumulates on the plates. The amount of charge stored is proportional to the applied voltage and the capacitance of the capacitor.

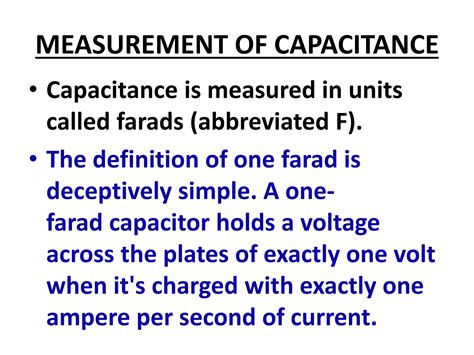

The capacitance (C) of a capacitor is measured in farads (F) and is given by the formula:

C = εA/d

Where:

ε is the permittivity of the dielectric material
A is the area of the plates
d is the distance between the plates

Capacitors can be classified into different types based on their dielectric material and construction. Some common types include:

Ceramic capacitors
Electrolytic capacitors
Film capacitors
Supercapacitors

Applications of Capacitive Behavior

The meaning of capacitive behavior extends to a wide range of applications in electronics. Capacitors are used in various circuits to perform different functions, such as:

Filtering: Capacitors are used to filter out unwanted frequencies in circuits, such as in power supplies and audio systems.
Coupling: They are used to couple AC signals between stages of an amplifier while blocking DC components.
Energy Storage: Capacitors store energy and release it when needed, making them essential in applications like flash photography and electric vehicles.
Timing: In combination with resistors, capacitors are used to create timing circuits, such as in oscillators and delay lines.

One of the most notable applications of capacitive behavior is in touchscreens. Capacitive touchscreens use the meaning of capacitive sensing to detect the presence and location of a touch. When a finger touches the screen, it alters the capacitance at that point, which is detected by the touchscreen controller. This technology is widely used in smartphones, tablets, and other touch-enabled devices.

Factors Affecting Capacitive Behavior

Several factors influence the capacitive behavior of a capacitor. Understanding these factors is crucial for selecting the right capacitor for a specific application. Key factors include:

Dielectric Material: The choice of dielectric material affects the capacitance and the voltage rating of the capacitor. Different materials have different permittivities and breakdown voltages.
Plate Area: Increasing the area of the plates increases the capacitance. However, larger plates may not be practical for all applications.
Plate Distance: Decreasing the distance between the plates increases the capacitance. However, very close plates can lead to higher risk of breakdown.
Temperature: The capacitance of a capacitor can vary with temperature. Some capacitors are designed to have stable capacitance over a wide temperature range.
Frequency: The capacitance can also vary with the frequency of the applied signal. This is particularly important in high-frequency applications.

Additionally, the physical construction of the capacitor, such as the shape and size of the plates, can affect its capacitive behavior. For example, cylindrical capacitors have different characteristics compared to flat-plate capacitors.

Capacitive Sensors and Their Applications

Capacitive sensors are devices that measure changes in capacitance to detect various physical quantities. They are used in a wide range of applications, including:

Proximity Sensors: Capacitive proximity sensors detect the presence of nearby objects without physical contact. They are used in automation, robotics, and security systems.
Level Sensors: Capacitive level sensors measure the level of liquids or solids in a container. They are used in industrial processes, water treatment, and food processing.
Humidity Sensors: Capacitive humidity sensors measure the moisture content in the air. They are used in HVAC systems, weather stations, and environmental monitoring.
Touch Sensors: As mentioned earlier, capacitive touch sensors are used in touchscreens and other touch-enabled interfaces.

Capacitive sensors offer several advantages, such as high sensitivity, non-contact measurement, and durability. However, they can be affected by environmental factors like temperature and humidity, which need to be considered in their design and application.

🔍 Note: When using capacitive sensors, it is important to calibrate them properly to ensure accurate measurements. Environmental factors can affect the sensor's performance, so proper shielding and compensation techniques may be necessary.

Capacitive Touchscreens: How They Work

Capacitive touchscreens are a prime example of the meaning of capacitive technology in action. These touchscreens use a grid of capacitive sensors to detect the presence and location of a touch. When a finger touches the screen, it alters the capacitance at that point, which is detected by the touchscreen controller.

The basic components of a capacitive touchscreen include:

Transparent conductive layer: Typically made of indium tin oxide (ITO), this layer allows the screen to be touched while detecting changes in capacitance.
Dielectric layer: This layer separates the conductive layer from the touch surface, providing insulation and protecting the conductive layer.
Controller: The touchscreen controller processes the signals from the capacitive sensors to determine the location and type of touch.

There are two main types of capacitive touchscreens:

Surface Capacitive: These touchscreens use a single conductive layer and detect touches based on the change in capacitance at the point of contact.
Projected Capacitive: These touchscreens use a grid of capacitive sensors and can detect multiple touches simultaneously. They are more responsive and accurate than surface capacitive touchscreens.

Capacitive touchscreens are widely used in modern devices due to their high sensitivity, durability, and multi-touch capabilities. They provide a seamless and intuitive user experience, making them ideal for smartphones, tablets, and other touch-enabled devices.

Capacitive Reactance and Impedance

Capacitive reactance (X_C) is the opposition to the flow of alternating current (AC) by a capacitor. It is given by the formula:

X_C = 1 / (2πfC)

Where:

f is the frequency of the AC signal
C is the capacitance

Capacitive reactance decreases with increasing frequency and capacitance. At high frequencies, the reactance becomes very low, allowing AC signals to pass through the capacitor easily. At low frequencies, the reactance is high, blocking the flow of AC signals.

Impedance (Z) is the total opposition to the flow of AC current in a circuit. For a capacitor, the impedance is given by:

Z = 1 / (2πfC)

Capacitive reactance and impedance are important considerations in AC circuits, as they affect the behavior of the circuit and the performance of the components.

Capacitive reactance and impedance are important considerations in AC circuits, as they affect the behavior of the circuit and the performance of the components
