Matrices are fundamental structures in mathematics and various fields of science and engineering. They provide a concise way to represent and manipulate data, making them indispensable in areas such as linear algebra, physics, computer graphics, and machine learning. When it comes to typesetting matrices, especially in academic and technical documents, LaTeX stands out as the go-to tool. LaTeX offers powerful commands and environments for creating beautifully formatted matrices, making it an essential skill for anyone working with Matrices en Latex.
Introduction to Matrices in LaTeX
LaTeX is a typesetting system widely used for creating scientific documents. Its ability to handle complex mathematical notation, including matrices, makes it a favorite among researchers, students, and professionals. Understanding how to typeset matrices in LaTeX can significantly enhance the readability and professionalism of your documents.
Basic Matrix Commands in LaTeX

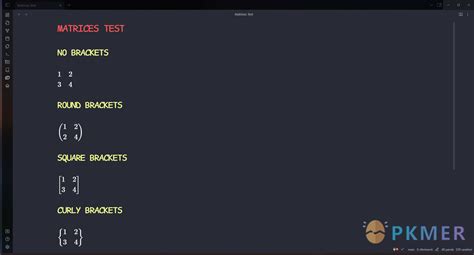

LaTeX provides several environments for typesetting matrices. The most commonly used environments are matrix, bmatrix,
Here is a brief overview of these environments:
matrix: No brackets around the matrix.bmatrix: Square brackets around the matrix.pmatrix: Parentheses around the matrix.
Below is an example of how to use these environments:
egin{matrix}
a & b & c \
d & e & f \
g & h & i
end{matrix}
This will produce a matrix without any brackets. To add brackets, you can use the other environments:
egin{bmatrix}
a & b & c \
d & e & f \
g & h & i
end{bmatrix}
For vertical bars:
egin{vmatrix}
a & b & c \
d & e & f \
g & h & i
end{vmatrix}
For parentheses:
egin{pmatrix}
a & b & c \
d & e & f \
g & h & i
end{pmatrix}
📝 Note: The array environment can also be used for more complex matrix layouts, allowing for custom column alignment and spacing.
Advanced Matrix Features in LaTeX
Beyond the basic matrix environments, LaTeX offers advanced features for more complex matrix typesetting. These include customizing the alignment of elements, adding labels, and integrating matrices within equations.
Customizing Matrix Alignment
The array environment allows for custom alignment of matrix elements. You can specify the alignment for each column using letters such as l (left), c (center), and r (right).
Here is an example:
egin{array}{ccc}
a & b & c \
d & e & f \
g & h & i
end{array}
This will center-align all elements in the matrix. To left-align the first column and center-align the others, you can use:
egin{array}{lcc}
a & b & c \
d & e & f \
g & h & i
end{array}
Adding Labels to Matrices
Labels are essential for referencing matrices within your document. LaTeX allows you to add labels to matrices using the label and
ef commands. This is particularly useful in long documents where you need to refer back to specific matrices.
Here is an example:
egin{equation}
A = egin{pmatrix}
a & b & c \
d & e & f \
g & h & i
end{pmatrix} label{eq:matrixA}
end{equation}
You can then reference this matrix elsewhere in your document using:
As shown in equation
ef{eq:matrixA}, the matrix A is defined as...
Integrating Matrices within Equations
Matrices can be integrated within larger equations using the equation environment. This is useful for displaying matrices as part of more complex mathematical expressions.
Here is an example:
egin{equation}
A cdot B = egin{pmatrix}
a & b & c \
d & e & f \
g & h & i
end{pmatrix} cdot egin{pmatrix}
j & k & l \
m & n & o \
p & q & r
end{pmatrix}
end{equation}
This will display the matrix multiplication of matrices A and B within an equation.
Special Matrix Types in LaTeX
LaTeX supports various special matrix types that are commonly used in different fields. These include identity matrices, zero matrices, and diagonal matrices.
Identity Matrix
An identity matrix is a square matrix with ones on the main diagonal and zeros elsewhere. In LaTeX, you can create an identity matrix using the array environment.
Here is an example of a 3x3 identity matrix:
egin{pmatrix}
1 & 0 & 0 \
0 & 1 & 0 \
0 & 0 & 1
end{pmatrix}
Zero Matrix
A zero matrix is a matrix where all elements are zero. You can create a zero matrix in LaTeX using the array environment.
Here is an example of a 3x3 zero matrix:
egin{pmatrix}
0 & 0 & 0 \
0 & 0 & 0 \
0 & 0 & 0
end{pmatrix}
Diagonal Matrix
A diagonal matrix is a square matrix where all elements outside the main diagonal are zero. You can create a diagonal matrix in LaTeX using the array environment.
Here is an example of a 3x3 diagonal matrix:
egin{pmatrix}
a & 0 & 0 \
0 & b & 0 \
0 & 0 & c
end{pmatrix}
Common Mistakes and Troubleshooting
When typesetting matrices in LaTeX, there are a few common mistakes that users often encounter. Understanding these issues can help you troubleshoot and create flawless matrices.
Misaligned Elements
One common issue is misaligned matrix elements. This usually happens when the alignment specifiers in the array environment are not correctly set. Ensure that you use the correct alignment specifiers (l, c, r) for each column.
📝 Note: Always double-check the alignment specifiers to ensure that your matrix elements are properly aligned.
Incorrect Brackets
Another common mistake is using the wrong type of brackets for your matrix. Make sure you use the correct environment (bmatrix, pmatrix) based on the type of brackets you need.
📝 Note: Double-check the environment you are using to ensure that the brackets match your requirements.
Labeling Issues
Labels are crucial for referencing matrices, but they can sometimes cause issues if not used correctly. Ensure that you place the label command immediately after the matrix definition and within the same environment.
📝 Note: Always place the label command within the same environment as the matrix to avoid referencing errors.
Conclusion
Matrices are a cornerstone of mathematical notation, and LaTeX provides a powerful and flexible way to typeset them. Whether you are working on a simple matrix or a complex mathematical expression, LaTeX offers the tools you need to create beautifully formatted matrices. By understanding the basic and advanced features of Matrices en Latex, you can enhance the readability and professionalism of your documents. From basic matrix environments to custom alignments and special matrix types, LaTeX has everything you need to master the art of matrix typesetting.
