Mandelbrot Fractal Examples

The Mandelbrot set is one of the most fascinating and intricate structures in the realm of fractal geometry. It is a set of complex numbers defined by a simple iterative formula, yet it produces incredibly complex and beautiful patterns. The Mandelbrot set has captivated mathematicians, artists, and enthusiasts alike with its endless intricacies and self-similarity. In this post, we will delve into the world of Mandelbrot fractal examples, exploring their creation, properties, and applications.

Table of Contents

Understanding the Mandelbrot Set

The Mandelbrot set is defined in the complex plane. A complex number c is part of the Mandelbrot set if the sequence defined by z_n+1 = z_n² + c, starting with z₀ = 0, does not diverge to infinity. This simple iterative process generates a stunning array of patterns and structures.

Creating Mandelbrot Fractal Examples

Creating Mandelbrot fractal examples involves iterating the formula for each point in the complex plane and determining whether the sequence diverges. Here are the steps to generate a Mandelbrot fractal:

Choose a range of complex numbers to iterate over.
For each complex number c, initialize z₀ to 0.
Iterate the formula z_n+1 = z_n² + c for a fixed number of iterations or until the magnitude of z_n exceeds a certain threshold.
Color the point based on whether the sequence diverges and how quickly it does so.

Here is a simple Python code snippet to generate a Mandelbrot fractal:

import numpy as np
import matplotlib.pyplot as plt

def mandelbrot(c, max_iter):
    z = 0
    n = 0
    while abs(z) <= 2 and n < max_iter:
        z = z*z + c
        n += 1
    return n

def mandelbrot_set(xmin, xmax, ymin, ymax, width, height, max_iter):
    r1 = np.linspace(xmin, xmax, width)
    r2 = np.linspace(ymin, ymax, height)
    n3 = np.empty((width,height))

    for i in range(width):
        for j in range(height):
            n3[i,j] = mandelbrot(r1[i] + 1j*r2[j], max_iter)
    return (r1, r2, n3)

xmin, xmax, ymin, ymax = -2.0, 1.0, -1.5, 1.5
width, height = 800, 800
max_iter = 256

dpi = 80
figsize = width / float(dpi), height / float(dpi)

x, y, mandelbrot_image = mandelbrot_set(xmin, xmax, ymin, ymax, width, height, max_iter)

plt.imshow(mandelbrot_image.T, extent=[xmin, xmax, ymin, ymax], cmap='inferno')
plt.colorbar()
plt.title('Mandelbrot Fractal')
plt.show()

💡 Note: This code uses NumPy for numerical operations and Matplotlib for visualization. Adjust the parameters to explore different regions of the Mandelbrot set.

Properties of Mandelbrot Fractal Examples

Mandelbrot fractal examples exhibit several remarkable properties:

Self-Similarity: The Mandelbrot set is self-similar, meaning that its structure repeats at different scales. Zooming into any part of the set reveals intricate patterns that resemble the overall structure.
Boundary Complexity: The boundary of the Mandelbrot set is incredibly complex and fractal in nature. It has a Hausdorff dimension of approximately 2, indicating its high level of detail.
Coloring Schemes: Different coloring schemes can be used to highlight the iterative behavior of the Mandelbrot set. Common schemes include escape time coloring, where the color of a point indicates the number of iterations before the sequence diverges.

Exploring Mandelbrot Fractal Examples

Exploring Mandelbrot fractal examples can be a rewarding experience. Here are some key areas to focus on:

Main Cardioid: The largest connected region of the Mandelbrot set is the main cardioid. It is shaped like a heart and contains smaller copies of the entire set.

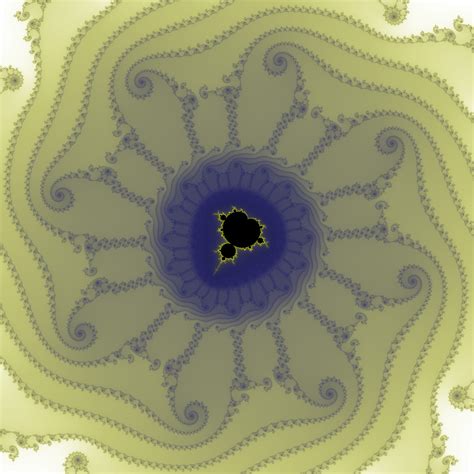

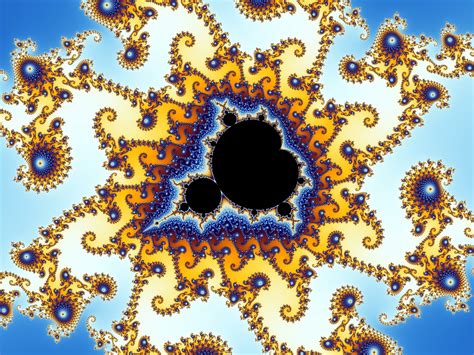

Bulbs and Miniatures: The Mandelbrot set is composed of smaller bulbs and miniatures, each containing its own intricate patterns. These structures are often referred to as “buds” or “antennae.”

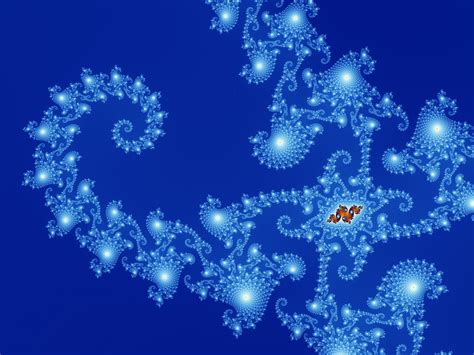

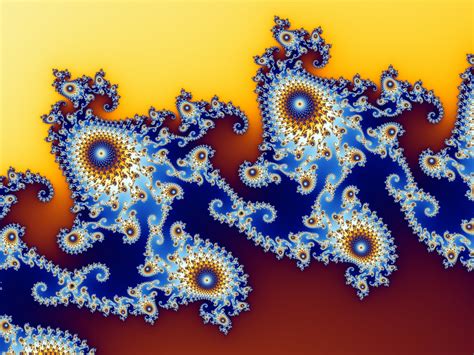

Filaments and Tendrils: The boundary of the Mandelbrot set features thin filaments and tendrils that extend outward, adding to its complexity.

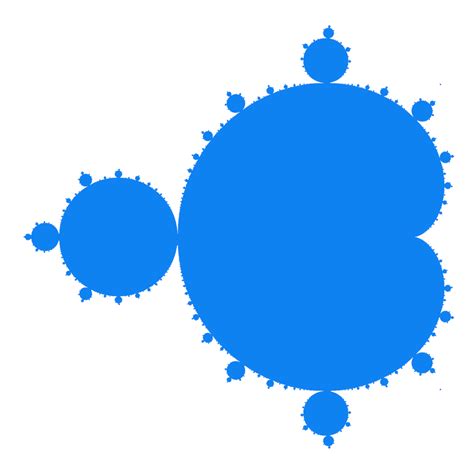

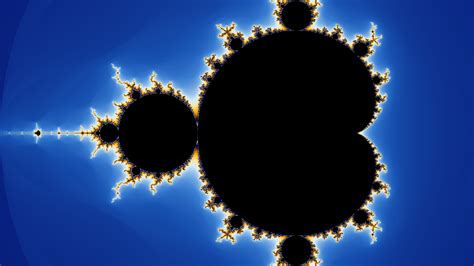

Here is an image of a Mandelbrot fractal example, highlighting the main cardioid and some of the smaller structures:

Applications of Mandelbrot Fractal Examples

Mandelbrot fractal examples have applications in various fields, including:

Mathematics: The study of the Mandelbrot set has led to advancements in complex dynamics, iteration theory, and fractal geometry.
Computer Graphics: Fractals are used in computer graphics to create realistic landscapes, textures, and animations.
Art and Design: Artists and designers use fractals to create visually stunning and intricate patterns.
Science and Engineering: Fractals are used to model natural phenomena, such as coastlines, mountain ranges, and cloud formations.

Advanced Techniques for Mandelbrot Fractal Examples

For those interested in delving deeper into Mandelbrot fractal examples, there are several advanced techniques to explore:

Orbit Trapping: This technique involves tracking the orbits of points in the complex plane to determine their behavior and classify them.
External Angles: The external angles of the Mandelbrot set provide insights into its boundary and can be used to study its geometric properties.
Julia Sets: Each point in the Mandelbrot set corresponds to a Julia set, which is another type of fractal. Exploring Julia sets can provide a deeper understanding of the Mandelbrot set.

Here is a table summarizing some of the key properties and techniques related to Mandelbrot fractal examples:

Property/Technique	Description
Self-Similarity	The Mandelbrot set repeats its structure at different scales.
Boundary Complexity	The boundary of the Mandelbrot set is fractal with a Hausdorff dimension of approximately 2.
Orbit Trapping	Tracking the orbits of points to determine their behavior.
External Angles	Provide insights into the boundary and geometric properties of the Mandelbrot set.
Julia Sets	Each point in the Mandelbrot set corresponds to a Julia set, offering deeper insights.

Mandelbrot fractal examples continue to captivate and inspire with their beauty and complexity. Whether you are a mathematician, artist, or enthusiast, exploring the Mandelbrot set offers a journey into the fascinating world of fractal geometry.

In conclusion, the Mandelbrot set is a remarkable structure that showcases the beauty and complexity of fractal geometry. From its self-similar properties to its applications in various fields, the Mandelbrot set offers endless opportunities for exploration and discovery. By understanding and creating Mandelbrot fractal examples, we can appreciate the intricate patterns and structures that emerge from simple iterative processes. The Mandelbrot set serves as a testament to the power of mathematics and its ability to reveal the hidden beauty of the natural world.
