Magnetic flux measurement is a critical aspect of various scientific and engineering applications, ranging from electrical engineering to geophysics. Understanding and accurately measuring magnetic flux is essential for designing efficient electrical systems, studying geomagnetic fields, and developing advanced technologies. This post delves into the intricacies of magnetic flux measurement, focusing on the Magnetic Flux Measurement Unit, its importance, and the methods used to quantify it.
Understanding Magnetic Flux

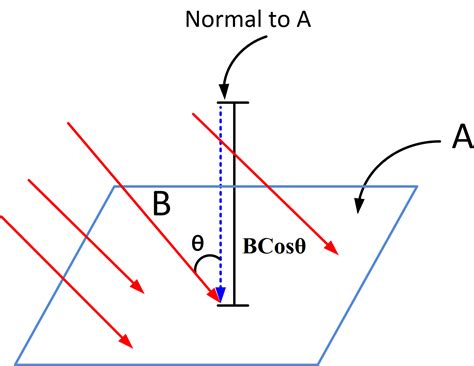

Magnetic flux, denoted by the Greek letter Φ (Phi), is a measure of the amount of magnetic field passing through a given area. It is a fundamental concept in electromagnetism and is defined as the product of the magnetic field strength, the area through which the field passes, and the cosine of the angle between the field and the normal to the area.
Mathematically, magnetic flux Φ is given by:
Φ = B * A * cos(θ)
Where:
- B is the magnetic field strength (in teslas, T)
- A is the area (in square meters, m²)
- θ is the angle between the magnetic field and the normal to the area
The Importance of Magnetic Flux Measurement
Accurate measurement of magnetic flux is crucial in various fields. In electrical engineering, it is essential for designing transformers, motors, and generators. In geophysics, it helps in studying the Earth's magnetic field and its variations. In medical applications, magnetic flux measurements are used in magnetic resonance imaging (MRI) machines. Additionally, magnetic flux measurement is vital in industrial applications for quality control and calibration of magnetic sensors.
Magnetic Flux Measurement Unit
The Magnetic Flux Measurement Unit is the weber (Wb), named after the German physicist Wilhelm Eduard Weber. One weber is defined as the magnetic flux that, linking a circuit of one turn, would produce in it an electromotive force of one volt if it were reduced to zero at a uniform rate in one second.
In practical terms, the weber is a relatively large unit, so smaller units like the milliweber (mWb) and microweber (µWb) are often used. For example, the Earth's magnetic field flux through a typical area might be measured in microwebers.
Methods of Magnetic Flux Measurement
Several methods are employed to measure magnetic flux, each with its own advantages and limitations. The choice of method depends on the application, required accuracy, and environmental conditions.
Hall Effect Sensors

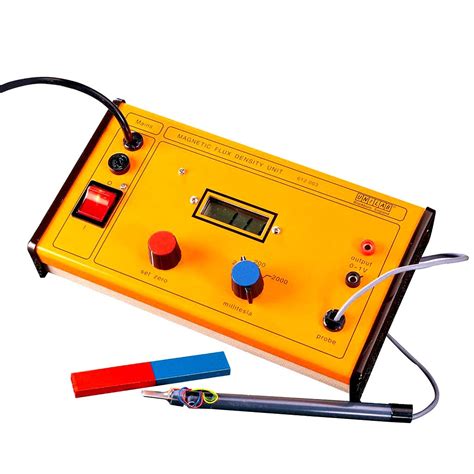

Hall effect sensors are widely used for measuring magnetic flux. They operate on the principle that a voltage difference (Hall voltage) is created across a conductor when it is placed in a magnetic field perpendicular to the current flow. The Hall voltage is proportional to the magnetic flux density.
Advantages of Hall effect sensors include:
- High sensitivity
- Compact size
- Low cost
However, they can be affected by temperature variations and require calibration for accurate measurements.
Fluxgate Magnetometers
Fluxgate magnetometers are highly sensitive devices used for measuring magnetic flux. They consist of a core of magnetically permeable material wound with two coils. One coil is driven by an alternating current, while the other detects the magnetic field.
Fluxgate magnetometers are known for their high sensitivity and stability, making them suitable for applications requiring precise measurements, such as geophysical surveys and space research.
Search Coil Magnetometers
Search coil magnetometers measure the rate of change of magnetic flux. They consist of a coil of wire that generates a voltage proportional to the rate of change of the magnetic flux through it. This method is particularly useful for measuring time-varying magnetic fields.
Advantages include:
- Simplicity
- Low cost
- Ability to measure dynamic fields
However, they are not suitable for measuring static magnetic fields.
Superconducting Quantum Interference Devices (SQUIDs)
SQUIDs are the most sensitive magnetometers available, capable of detecting extremely small changes in magnetic flux. They operate on the principles of superconductivity and quantum mechanics, making them ideal for applications requiring ultra-high sensitivity, such as medical imaging and fundamental physics research.
SQUIDs offer unparalleled sensitivity but require cryogenic temperatures to operate, which can be a limitation in some applications.
Applications of Magnetic Flux Measurement
Magnetic flux measurement has a wide range of applications across various fields. Some of the key areas include:
Electrical Engineering
In electrical engineering, magnetic flux measurement is essential for the design and operation of electrical machines and devices. Transformers, motors, and generators all rely on accurate magnetic flux measurements to ensure efficient and reliable performance.
Geophysics
In geophysics, magnetic flux measurements are used to study the Earth's magnetic field and its variations. This information is crucial for understanding geological processes, navigating, and detecting mineral deposits.
Medical Imaging
Magnetic flux measurement is a cornerstone of medical imaging technologies like MRI. MRI machines use strong magnetic fields and radio waves to produce detailed images of the body's internal structures, aiding in diagnosis and treatment.
Industrial Applications
In industrial settings, magnetic flux measurement is used for quality control and calibration of magnetic sensors. It ensures that magnetic components meet the required specifications and perform reliably.
Calibration and Accuracy
Calibration is a critical aspect of magnetic flux measurement. Regular calibration ensures that the measurement devices provide accurate and reliable data. Calibration involves comparing the output of the measurement device with a known standard and adjusting the device accordingly.
Several factors can affect the accuracy of magnetic flux measurements, including:
- Temperature variations
- Electromagnetic interference
- Mechanical vibrations
- Sensor drift
To mitigate these factors, it is essential to use high-quality sensors, maintain a controlled environment, and perform regular calibration.
🔍 Note: Always follow the manufacturer's guidelines for calibration and maintenance to ensure the accuracy of your magnetic flux measurements.
Future Trends in Magnetic Flux Measurement
The field of magnetic flux measurement is continually evolving, driven by advancements in technology and increasing demand for precision. Some of the emerging trends include:
Miniaturization
Advances in microfabrication techniques are leading to the development of smaller, more compact magnetic flux sensors. These miniaturized sensors are ideal for applications where space is limited, such as in wearable devices and portable instruments.
Integration with IoT
The integration of magnetic flux sensors with the Internet of Things (IoT) is enabling real-time monitoring and data analysis. This integration allows for remote monitoring of magnetic fields, enhancing efficiency and reliability in various applications.
Enhanced Sensitivity
Research is ongoing to develop sensors with even higher sensitivity and resolution. These advancements will enable more precise measurements, opening up new possibilities in fields like medical imaging and fundamental physics research.
Advanced Materials
The use of advanced materials, such as superconductors and nanomaterials, is enhancing the performance of magnetic flux sensors. These materials offer improved sensitivity, stability, and durability, making them suitable for demanding applications.
Comparison of Magnetic Flux Measurement Methods
Choosing the right method for magnetic flux measurement depends on the specific requirements of the application. The following table provides a comparison of the different methods discussed:
| Method | Sensitivity | Cost | Size | Applications |
|---|---|---|---|---|
| Hall Effect Sensors | High | Low | Compact | Industrial, Automotive |
| Fluxgate Magnetometers | Very High | Moderate | Medium | Geophysics, Space Research |
| Search Coil Magnetometers | Moderate | Low | Compact | Dynamic Field Measurement |
| SQUIDs | Ultra-High | High | Large | Medical Imaging, Fundamental Physics |
Each method has its strengths and limitations, and the choice depends on the specific needs of the application, including required sensitivity, cost constraints, and environmental conditions.
In summary, magnetic flux measurement is a vital aspect of various scientific and engineering disciplines. The Magnetic Flux Measurement Unit, the weber, provides a standardized way to quantify magnetic flux, enabling accurate and reliable measurements. Different methods, from Hall effect sensors to SQUIDs, offer a range of options for measuring magnetic flux, each with its own advantages and limitations. As technology advances, the field of magnetic flux measurement continues to evolve, offering new possibilities and applications.
