Understanding the intricacies of structural engineering is crucial for anyone involved in construction or architecture. One of the fundamental aspects of this field is the use of Lvl Beam Span Tables. These tables provide essential information for determining the appropriate beam sizes and spans for various construction projects. Whether you are a professional engineer, an architect, or a DIY enthusiast, knowing how to read and apply Lvl Beam Span Tables can significantly enhance the safety and efficiency of your projects.
What are Lvl Beam Span Tables?

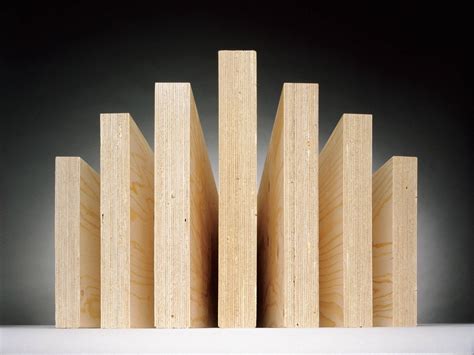

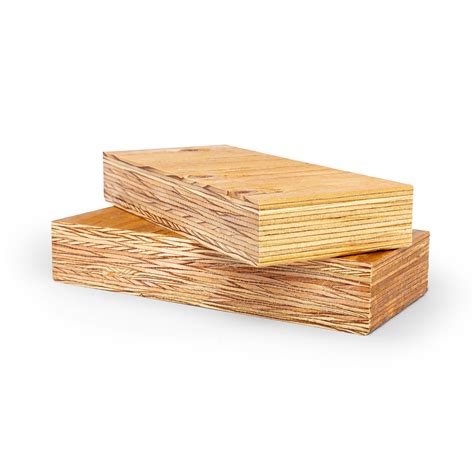

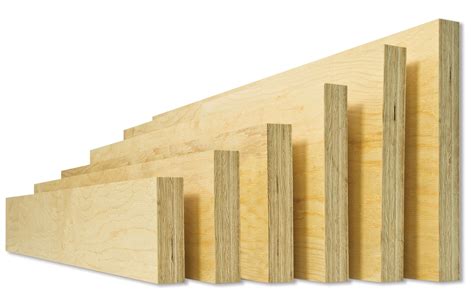

Lvl Beam Span Tables are reference guides that outline the maximum allowable spans for laminated veneer lumber (LVL) beams under different loading conditions. LVL beams are engineered wood products made by layering thin veneers of wood and bonding them together with adhesives. This process creates a strong, stable, and uniform beam that can support significant loads.
These tables are typically provided by manufacturers and include various parameters such as beam size, span length, and load capacity. By consulting these tables, engineers and builders can ensure that the beams they select are capable of supporting the intended loads without failing.
Importance of Lvl Beam Span Tables in Construction
The use of Lvl Beam Span Tables is vital in construction for several reasons:
- Safety: Ensuring that beams can support the required loads is crucial for the safety of the structure and its occupants.
- Efficiency: Proper beam selection can optimize material usage, reducing waste and costs.
- Compliance: Adhering to building codes and standards often requires the use of approved Lvl Beam Span Tables.
- Durability: Correct beam sizing can enhance the longevity of the structure by preventing premature failure.
How to Read Lvl Beam Span Tables
Reading Lvl Beam Span Tables involves understanding the various parameters and how they interact. Here’s a step-by-step guide to help you navigate these tables effectively:
Step 1: Identify the Beam Size
The first step is to identify the size of the LVL beam you are considering. Beam sizes are typically listed in inches and include both the width and the depth. For example, a beam might be listed as 1.75 inches by 11.25 inches.
Step 2: Determine the Span Length
The span length is the distance between the supports of the beam. This is a critical parameter because it directly affects the beam’s load-bearing capacity. Lvl Beam Span Tables will list the maximum allowable spans for different beam sizes under various loading conditions.
Step 3: Consider the Load
The load refers to the weight that the beam will need to support. This can include the weight of the structure itself (dead load) and any additional loads such as furniture, people, or equipment (live load). Lvl Beam Span Tables will specify the load capacity for different spans and beam sizes.
Step 4: Check for Additional Factors
Some Lvl Beam Span Tables may include additional factors such as deflection limits, which specify how much the beam can bend under load without compromising the structure’s integrity. Other factors might include the type of wood species used in the LVL beam and the grade of the wood.
📝 Note: Always refer to the specific manufacturer’s guidelines for the most accurate and up-to-date information.

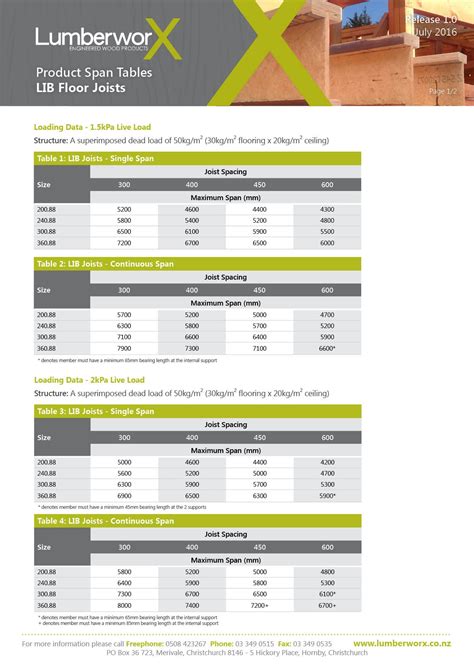

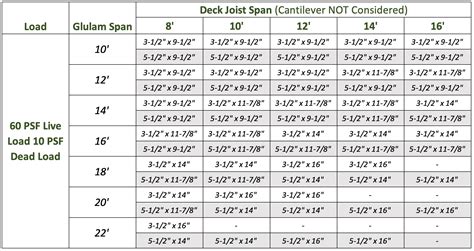

Example of an Lvl Beam Span Table
Below is an example of what an Lvl Beam Span Table might look like. This table provides the maximum allowable spans for different beam sizes under a uniform live load of 40 pounds per square foot (psf).
| Beam Size (inches) | Maximum Span (feet) |
|---|---|
| 1.75 x 9.5 | 12 |
| 1.75 x 11.25 | 14 |
| 1.75 x 14 | 16 |
| 1.75 x 16 | 18 |
| 1.75 x 18 | 20 |
In this example, a 1.75-inch by 11.25-inch LVL beam can span a maximum of 14 feet under a uniform live load of 40 psf. Adjustments may be necessary for different loading conditions or additional factors.
Applications of Lvl Beam Span Tables
Lvl Beam Span Tables are used in a variety of construction applications, including:
- Residential Construction: For building floors, roofs, and walls in homes.
- Commercial Construction: For supporting larger structures such as offices, retail spaces, and warehouses.
- Bridges and Overpasses: For constructing smaller bridges and overpasses.
- Industrial Structures: For supporting heavy machinery and equipment.
In each of these applications, the correct selection of LVL beams based on Lvl Beam Span Tables ensures that the structure can safely support the intended loads.
Factors Affecting Beam Selection
Several factors can affect the selection of LVL beams and the interpretation of Lvl Beam Span Tables. These include:
- Load Type: Different types of loads (dead, live, wind, etc.) can affect the beam’s performance.
- Span Length: Longer spans require larger beams to support the same load.
- Deflection Limits: The amount of bending allowed can impact beam selection.
- Wood Species and Grade: Different wood species and grades have varying strength properties.
- Environmental Conditions: Factors such as humidity and temperature can affect the beam’s performance.
Understanding these factors is essential for accurate beam selection and ensuring the safety and longevity of the structure.
📝 Note: Always consult with a structural engineer for complex or critical applications.
Common Mistakes to Avoid
When using Lvl Beam Span Tables, it’s important to avoid common mistakes that can compromise the integrity of the structure. Some of these mistakes include:
- Ignoring Load Types: Failing to account for different types of loads can lead to under-designed beams.
- Overlooking Deflection Limits: Exceeding deflection limits can cause structural issues over time.
- Incorrect Beam Sizing: Selecting beams that are too small for the intended span and load can result in failure.
- Not Considering Environmental Factors: Ignoring environmental conditions can affect the beam’s performance.
By being aware of these potential pitfalls, you can ensure that your beam selection is accurate and safe.
In conclusion, Lvl Beam Span Tables are indispensable tools for anyone involved in construction or architecture. They provide essential information for selecting the appropriate LVL beams for various applications, ensuring safety, efficiency, and compliance with building codes. By understanding how to read and apply these tables, you can enhance the quality and durability of your construction projects. Whether you are a professional engineer, an architect, or a DIY enthusiast, mastering the use of Lvl Beam Span Tables is a valuable skill that can significantly benefit your work.
