Understanding the fundamentals of digital electronics is crucial for anyone delving into the world of computer science and engineering. At the heart of digital circuits lie logic gates, which are the building blocks that perform basic logical operations. These gates form the foundation for more complex digital systems, and their behavior is often illustrated using logic gates truth tables. This post will explore the basics of logic gates, their truth tables, and how they are used in digital circuits.

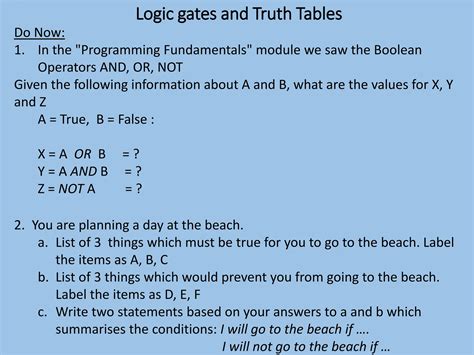

What are Logic Gates?
Logic gates are digital circuits that perform logical operations on one or more binary inputs and produce a single binary output. The most common logic gates are AND, OR, NOT, NAND, NOR, XOR, and XNOR. Each of these gates has a unique function and a corresponding truth table that defines its behavior.
Basic Logic Gates and Their Truth Tables
Let’s delve into the basic logic gates and their corresponding logic gates truth tables.
AND Gate
The AND gate outputs true (1) only when all its inputs are true (1). If any input is false (0), the output is false (0). The truth table for an AND gate with two inputs is as follows:
| A | B | Output |
|---|---|---|
| 0 | 0 | 0 |
| 0 | 1 | 0 |
| 1 | 0 | 0 |
| 1 | 1 | 1 |
OR Gate
The OR gate outputs true (1) if at least one of its inputs is true (1). The output is false (0) only when all inputs are false (0). The truth table for an OR gate with two inputs is as follows:
| A | B | Output |
|---|---|---|
| 0 | 0 | 0 |
| 0 | 1 | 1 |
| 1 | 0 | 1 |
| 1 | 1 | 1 |
NOT Gate
The NOT gate, also known as an inverter, outputs the opposite of its input. If the input is true (1), the output is false (0), and vice versa. The truth table for a NOT gate is as follows:
| A | Output |
|---|---|
| 0 | 1 |
| 1 | 0 |
NAND Gate
The NAND gate is a combination of an AND gate followed by a NOT gate. It outputs true (1) unless all inputs are true (1). The truth table for a NAND gate with two inputs is as follows:
| A | B | Output |
|---|---|---|
| 0 | 0 | 1 |
| 0 | 1 | 1 |
| 1 | 0 | 1 |
| 1 | 1 | 0 |
NOR Gate
The NOR gate is a combination of an OR gate followed by a NOT gate. It outputs true (1) only when all inputs are false (0). The truth table for a NOR gate with two inputs is as follows:
| A | B | Output |
|---|---|---|
| 0 | 0 | 1 |
| 0 | 1 | 0 |
| 1 | 0 | 0 |
| 1 | 1 | 0 |
XOR Gate
The XOR (exclusive OR) gate outputs true (1) when the number of true inputs is odd. It outputs false (0) when the number of true inputs is even. The truth table for an XOR gate with two inputs is as follows:
| A | B | Output |
|---|---|---|
| 0 | 0 | 0 |
| 0 | 1 | 1 |
| 1 | 0 | 1 |
| 1 | 1 | 0 |
XNOR Gate
The XNOR (exclusive NOR) gate outputs true (1) when the number of true inputs is even. It outputs false (0) when the number of true inputs is odd. The truth table for an XNOR gate with two inputs is as follows:
| A | B | Output |
|---|---|---|
| 0 | 0 | 1 |
| 0 | 1 | 0 |
| 1 | 0 | 0 |
| 1 | 1 | 1 |
Combining Logic Gates
Logic gates can be combined to create more complex circuits that perform specific functions. These combinations are often represented using logic gates truth tables that show the output for every possible combination of inputs. For example, a half-adder circuit can be created using an XOR gate and an AND gate. The half-adder adds two binary digits and produces a sum and a carry output.
Here is the truth table for a half-adder:
| A | B | Sum (A XOR B) | Carry (A AND B) |
|---|---|---|---|
| 0 | 0 | 0 | 0 |
| 0 | 1 | 1 | 0 |
| 1 | 0 | 1 | 0 |
| 1 | 1 | 0 | 1 |
Similarly, a full-adder circuit can be created using two half-adders and an OR gate. The full-adder adds three binary digits (two inputs and a carry-in) and produces a sum and a carry-out output.
Here is the truth table for a full-adder:
| A | B | Cin | Sum | Cout |
|---|---|---|---|---|
| 0 | 0 | 0 | 0 | 0 |
| 0 | 0 | 1 | 1 | 0 |
| 0 | 1 | 0 | 1 | 0 |
| 0 | 1 | 1 | 0 | 1 |
| 1 | 0 | 0 | 1 | 0 |
| 1 | 0 | 1 | 0 | 1 |
| 1 | 1 | 0 | 0 | 1 |
| 1 | 1 | 1 | 1 | 1 |
💡 Note: The carry-out (Cout) in a full-adder is determined by the sum of the carry-in (Cin) and the carry generated by the half-adders.
Applications of Logic Gates
Logic gates are fundamental to the design of digital circuits and are used in a wide range of applications. Some of the key areas where logic gates are applied include:
- Computers: Logic gates are the building blocks of computer processors, memory units, and other digital components.
- Communication Systems: Logic gates are used in digital communication systems for encoding, decoding, and error correction.
- Control Systems: Logic gates are essential in control systems for automating processes and ensuring safety.
- Consumer Electronics: Logic gates are found in various consumer electronics, including smartphones, televisions, and home appliances.
Designing Digital Circuits with Logic Gates
Designing digital circuits involves combining logic gates to perform specific functions. The process typically includes the following steps:
- Define the required function or behavior of the circuit.
- Choose the appropriate logic gates to implement the function.
- Create a schematic diagram showing the connections between the gates.
- Verify the circuit using logic gates truth tables to ensure it behaves as expected.
- Implement the circuit using hardware components or software simulation.
For example, let's design a simple circuit that implements the Boolean expression A AND (B OR C). The steps would be as follows:
- Identify the logic gates needed: AND gate and OR gate.
- Create the schematic diagram:
- Connect inputs B and C to an OR gate.
- Connect the output of the OR gate and input A to an AND gate.
- Verify the circuit using a truth table:
| A | B | C | B OR C | A AND (B OR C) |
|---|---|---|---|---|
| 0 | 0 | 0 | 0 | 0 |
| 0 | 0 | 1 | 1 | 0 |
| 0 | 1 | 0 | 1 | 0 |
| 0 | 1 | 1 | 1 | 0 |
| 1 | 0 | 0 | 0 | 0 |
| 1 | 0 | 1 | 1 | 1 |
| 1 | 1 | 0 | 1 | 1 |
| 1 | 1 | 1 | 1 | 1 |
This truth table confirms that the circuit behaves as expected, outputting true (1) only when A is true (1) and at least one of B or C is true (1).
💡 Note: Always double-check the truth table to ensure the circuit design is correct before implementing it in hardware.
Advanced Logic Gates and Circuits
Beyond the basic logic gates, there are more advanced gates and circuits that perform complex operations. Some of these include:
- Multiplexers (MUX): A multiplexer selects one of several input signals and forwards the selected input into a single line. It is controlled by select lines.
- Demultiplexers (DEMUX): A demultiplexer takes a single input signal and channels it to one of several output lines. It is controlled by select lines.
- Encoders: An encoder converts a set of input signals into a binary code. It is often used in keypads and other input devices.
- Decoders: A decoder converts a binary code into a set of output signals. It is used in address decoding in memory systems.
These advanced circuits are built using combinations of basic logic gates and are essential for more complex digital systems.
Conclusion
Logic gates are the cornerstone of digital electronics, enabling the creation of complex circuits that power modern technology. Understanding logic gates truth tables is crucial for designing and verifying digital circuits. From simple gates like AND, OR, and NOT to more complex circuits like multiplexers and decoders, logic gates form the foundation of digital systems. By mastering the basics of logic gates and their truth tables, one can delve deeper into the world of digital electronics and contribute to the development of innovative technologies.
