Logic Gate Symbols

Understanding the fundamentals of digital electronics is crucial for anyone delving into the world of computer science and engineering. At the heart of digital circuits lie logic gate symbols, which are the building blocks for creating complex digital systems. These symbols represent basic logical operations that manipulate binary data, forming the foundation of modern computing.

Introduction to Logic Gates

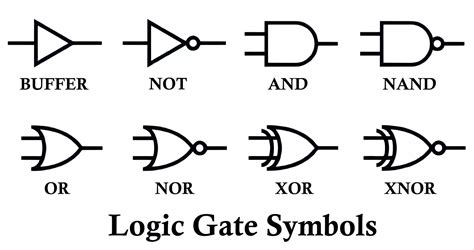

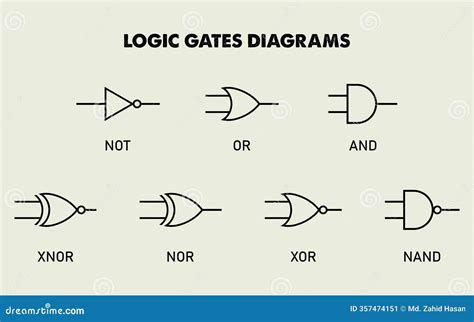

Logic gates are electronic circuits that perform logical operations on binary inputs. They take one or more binary inputs (0 or 1) and produce a single binary output. The most common logic gates include AND, OR, NOT, NAND, NOR, XOR, and XNOR. Each of these gates has a unique logic gate symbol that represents its function in circuit diagrams.

Basic Logic Gates and Their Symbols

Let's explore the basic logic gates and their corresponding symbols:

AND Gate

The AND gate outputs 1 only when all its inputs are 1. If any input is 0, the output is 0. The logic gate symbol for an AND gate is represented by a shape with multiple inputs converging into a single output.

OR Gate

The OR gate outputs 1 if at least one of its inputs is 1. It outputs 0 only when all inputs are 0. The logic gate symbol for an OR gate is similar to the AND gate but with a different shape indicating the OR operation.

NOT Gate

The NOT gate, also known as an inverter, outputs the opposite of its input. If the input is 1, the output is 0, and vice versa. The logic gate symbol for a NOT gate is a triangle with a small circle at the output, indicating inversion.

NAND Gate

The NAND gate is a combination of an AND gate followed by a NOT gate. It outputs 1 only when not all inputs are 1. The logic gate symbol for a NAND gate is similar to the AND gate but with a small circle at the output, indicating inversion.

NOR Gate

The NOR gate is a combination of an OR gate followed by a NOT gate. It outputs 1 only when all inputs are 0. The logic gate symbol for a NOR gate is similar to the OR gate but with a small circle at the output, indicating inversion.

XOR Gate

The XOR (exclusive OR) gate outputs 1 when the number of 1s at its inputs is odd. It outputs 0 when the number of 1s is even. The logic gate symbol for an XOR gate is a shape with a curved line at the output, indicating the exclusive nature of the operation.

XNOR Gate

The XNOR (exclusive NOR) gate outputs 1 when the number of 1s at its inputs is even. It outputs 0 when the number of 1s is odd. The logic gate symbol for an XNOR gate is similar to the XOR gate but with a small circle at the output, indicating inversion.

Truth Tables for Logic Gates

Truth tables are essential tools for understanding the behavior of logic gates. They list all possible combinations of inputs and the corresponding outputs. Here are the truth tables for the basic logic gates:

Gate

Inputs

Output

AND

0	0	0
0	1	0
1	0	0
1	1	1

0	0	0
0	1	1
1	0	1
1	1	1

NOT

0	1
1	0

NAND

0	0	1
0	1	1
1	0	1
1	1	0

NOR

0	0	1
0	1	0
1	0	0
1	1	0

XOR

0	0	0
0	1	1
1	0	1
1	1	0

XNOR

0	0	1
0	1	0
1	0	0
1	1	1

💡 Note: Truth tables are crucial for verifying the correctness of logic gate implementations and for designing complex digital circuits.

Universal Logic Gates

While the basic logic gates are fundamental, some gates are considered universal because they can be used to create any other logic gate. The most notable universal gates are the NAND and NOR gates.

NAND Gate as a Universal Gate

The NAND gate can be used to create any other logic gate. For example, an AND gate can be created by connecting the output of a NAND gate to another NAND gate. Similarly, an OR gate can be created by combining NAND gates in a specific configuration. The versatility of the NAND gate makes it a powerful tool in digital circuit design.

NOR Gate as a Universal Gate

Similarly, the NOR gate can also be used to create any other logic gate. By combining NOR gates in different configurations, you can achieve the functionality of AND, OR, NOT, XOR, and XNOR gates. The NOR gate's ability to perform universal logic operations makes it another essential component in digital electronics.

Applications of Logic Gates

Logic gates are the backbone of digital systems and are used in a wide range of applications. Some of the key areas where logic gates are applied include:

Computers: Logic gates are used to build the central processing unit (CPU), memory, and other components of a computer.
Communication Systems: Logic gates are essential in designing communication protocols and data transmission systems.
Control Systems: Logic gates are used in control systems for automation, robotics, and industrial processes.
Digital Circuits: Logic gates form the basis of digital circuits used in various electronic devices, including calculators, digital watches, and smartphones.

Designing with Logic Gates

Designing digital circuits using logic gates involves several steps. Here is a basic outline of the process:

Step 1: Define the Problem

Clearly define the problem you want to solve with the digital circuit. This includes specifying the inputs, outputs, and the desired functionality.

Step 2: Create a Truth Table

Develop a truth table that lists all possible combinations of inputs and the corresponding outputs. This table will guide the design of the logic circuit.

Step 3: Design the Logic Circuit

Using the truth table, design the logic circuit by selecting the appropriate logic gates and connecting them in the correct configuration. Use logic gate symbols to represent the gates in your circuit diagram.

Step 4: Simulate the Circuit

Use simulation software to test the design and ensure it behaves as expected. This step helps identify any errors or issues in the circuit design.

Step 5: Implement the Circuit

Once the design is verified, implement the circuit using physical components or programmable logic devices. This step involves building the actual hardware or writing the code for a programmable device.

🛠️ Note: Always double-check your circuit design and simulation results before implementing the circuit to avoid costly errors.

Advanced Logic Gates

Beyond the basic and universal logic gates, there are advanced logic gates that perform more complex operations. Some of these advanced gates include:

Multiplexer (MUX)

A multiplexer is a digital switch that selects one of several input signals and forwards the selected input to a single output. It is often used in data routing and selection applications.

Demultiplexer (DEMUX)

A demultiplexer is the opposite of a multiplexer. It takes a single input signal and channels it to one of several output lines. Demultiplexers are used in data distribution and control systems.

Flip-Flops

Flip-flops are bistable multivibrators that can store a single bit of data. They are used in memory elements, counters, and sequential circuits. Common types of flip-flops include SR, D, JK, and T flip-flops.

Counters

Counters are digital circuits that count the number of clock pulses or events. They are used in timing, sequencing, and control applications. Counters can be synchronous or asynchronous and can count in binary, decimal, or other number systems.

Conclusion

Logic gates are the fundamental building blocks of digital electronics, and understanding their logic gate symbols and functions is essential for anyone working in the field. From basic gates like AND, OR, and NOT to universal gates like NAND and NOR, and advanced gates like multiplexers and counters, logic gates form the foundation of modern computing and digital systems. By mastering the design and implementation of logic gates, you can create complex digital circuits that power a wide range of applications, from computers and communication systems to control and automation.
