Understanding the states of matter is fundamental to grasping the behavior of substances around us. The Liquid Solid Gas Diagram is a powerful tool that visually represents the transitions between these states. This diagram is not just a theoretical construct; it has practical applications in various fields, from chemistry and physics to engineering and environmental science. By exploring the Liquid Solid Gas Diagram, we can gain insights into the properties and behaviors of different substances under varying conditions.
What is the Liquid Solid Gas Diagram?

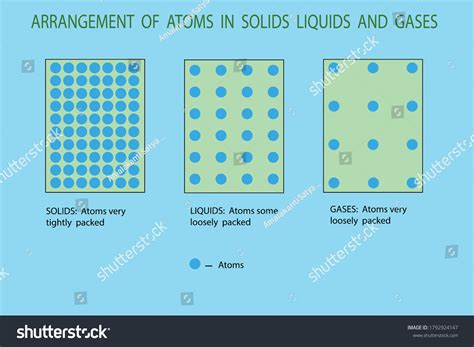

The Liquid Solid Gas Diagram, also known as a phase diagram, is a graphical representation of the states of matter of a substance under different conditions of temperature and pressure. It shows the boundaries where the substance transitions from one state to another—solid to liquid, liquid to gas, and so on. The diagram typically includes three main regions:
- Solid region
- Liquid region
- Gas region
These regions are separated by lines that represent the conditions under which phase transitions occur. The diagram also includes critical points, such as the triple point and the critical point, which are crucial for understanding the behavior of the substance.
Key Components of the Liquid Solid Gas Diagram
The Liquid Solid Gas Diagram consists of several key components that help in understanding the phase transitions of a substance. These components include:
- Triple Point: The point where the solid, liquid, and gas phases coexist in equilibrium. At this point, the temperature and pressure are specific values unique to the substance.
- Critical Point: The point beyond which the liquid and gas phases cannot be distinguished. At the critical point, the properties of the liquid and gas phases become identical.
- Phase Boundaries: The lines that separate the different phases. These lines represent the conditions under which the substance transitions from one phase to another.
Understanding Phase Transitions

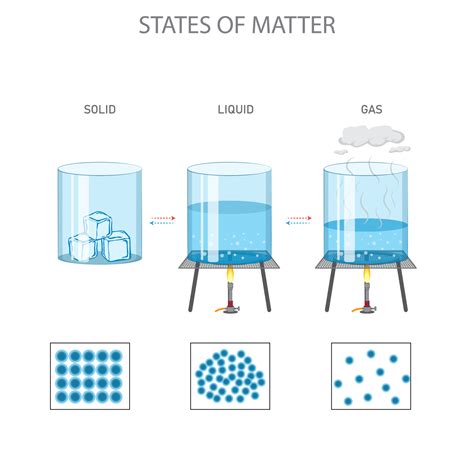

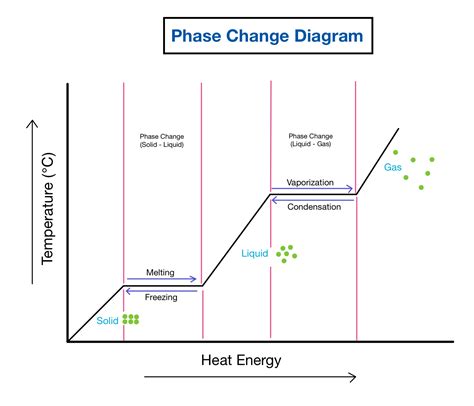

Phase transitions are the changes that occur when a substance moves from one state to another. The Liquid Solid Gas Diagram helps us understand these transitions by showing the conditions under which they occur. The main phase transitions are:
- Melting/Freezing: The transition between solid and liquid states. Melting occurs when a solid is heated and turns into a liquid, while freezing occurs when a liquid is cooled and turns into a solid.
- Boiling/Condensation: The transition between liquid and gas states. Boiling occurs when a liquid is heated and turns into a gas, while condensation occurs when a gas is cooled and turns into a liquid.
- Sublimation/Deposition: The transition between solid and gas states. Sublimation occurs when a solid is heated and turns directly into a gas, while deposition occurs when a gas is cooled and turns directly into a solid.
Applications of the Liquid Solid Gas Diagram
The Liquid Solid Gas Diagram has numerous applications in various fields. Some of the key applications include:
- Chemistry: Understanding the behavior of substances under different conditions is crucial for chemical reactions and processes.
- Physics: The diagram helps in studying the properties of matter and the laws governing phase transitions.
- Engineering: In fields like materials science and chemical engineering, the diagram is used to design processes and materials with specific properties.
- Environmental Science: The diagram aids in understanding the behavior of substances in the environment, such as the phase transitions of water in the atmosphere.
Interpreting the Liquid Solid Gas Diagram
Interpreting the Liquid Solid Gas Diagram involves understanding the different regions and boundaries on the diagram. Here’s a step-by-step guide to interpreting the diagram:
- Identify the Axes: The diagram typically has temperature on the x-axis and pressure on the y-axis.
- Locate the Triple Point: Find the point where the solid, liquid, and gas phases meet. This point is crucial for understanding the conditions under which all three phases coexist.
- Locate the Critical Point: Identify the point where the liquid and gas phases become indistinguishable. This point is important for understanding the behavior of the substance at high temperatures and pressures.
- Trace the Phase Boundaries: Follow the lines that separate the different phases. These lines represent the conditions under which phase transitions occur.
- Analyze the Regions: Understand the properties of the substance in each region. For example, in the solid region, the substance is in a solid state, while in the liquid region, it is in a liquid state.
📝 Note: The Liquid Solid Gas Diagram can vary for different substances, so it’s important to refer to the specific diagram for the substance you are studying.
Examples of Liquid Solid Gas Diagrams
Different substances have unique Liquid Solid Gas Diagrams that reflect their specific properties. Here are a few examples:
Water

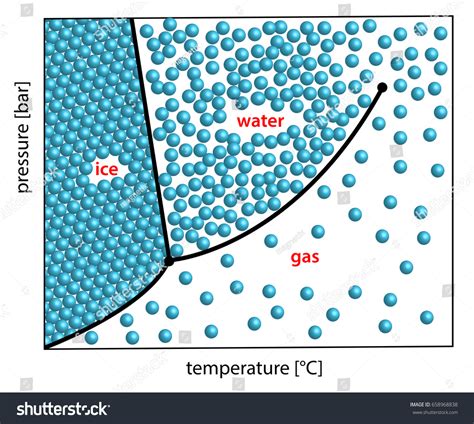

Water is one of the most well-known substances with a Liquid Solid Gas Diagram. The diagram for water shows the following key points:
- Triple Point: 0.01°C and 611.657 Pa
- Critical Point: 374°C and 22.064 MPa
The diagram for water is particularly important in understanding the behavior of water in the environment, such as the formation of clouds and precipitation.
Carbon Dioxide
Carbon dioxide has a Liquid Solid Gas Diagram that is different from water. The key points for carbon dioxide are:
- Triple Point: -56.6°C and 518 kPa
- Critical Point: 31.1°C and 7.38 MPa
The diagram for carbon dioxide is important in understanding the behavior of carbon dioxide in industrial processes, such as refrigeration and carbon capture.
Helium
Helium has a unique Liquid Solid Gas Diagram due to its low boiling point. The key points for helium are:
- Triple Point: -271.1°C and 5.1 kPa
- Critical Point: -267.9°C and 2.27 MPa
The diagram for helium is important in understanding the behavior of helium in cryogenic applications, such as superconducting magnets and cooling systems.
Importance of the Liquid Solid Gas Diagram in Science and Industry
The Liquid Solid Gas Diagram is a vital tool in both scientific research and industrial applications. It provides a visual representation of the phase transitions of a substance, which is essential for understanding its behavior under different conditions. In science, the diagram helps researchers study the properties of matter and the laws governing phase transitions. In industry, it aids in designing processes and materials with specific properties.
The diagram is particularly important in fields such as:
- Chemical Engineering: Understanding the phase transitions of substances is crucial for designing chemical processes and reactors.
- Materials Science: The diagram helps in developing materials with specific properties, such as high melting points or low boiling points.
- Environmental Science: The diagram aids in understanding the behavior of substances in the environment, such as the phase transitions of water in the atmosphere.
Conclusion
The Liquid Solid Gas Diagram is a fundamental tool for understanding the behavior of substances under different conditions. It provides a visual representation of the phase transitions of a substance, which is essential for both scientific research and industrial applications. By studying the diagram, we can gain insights into the properties and behaviors of different substances, from water and carbon dioxide to helium and beyond. The diagram’s key components, such as the triple point and critical point, help us understand the conditions under which phase transitions occur. Whether in chemistry, physics, engineering, or environmental science, the Liquid Solid Gas Diagram is an invaluable resource for understanding the states of matter and their transitions.
