Light Switching Diagram

Understanding the intricacies of electrical systems is crucial for anyone involved in home improvement, electrical engineering, or even basic DIY projects. One of the fundamental components of any electrical system is the light switch. A Light Switching Diagram is an essential tool that helps visualize and understand the wiring and connections involved in a lighting circuit. This guide will walk you through the basics of creating and interpreting a Light Switching Diagram, ensuring you have a clear understanding of how to wire a light switch correctly.

Table of Contents

Understanding the Basics of a Light Switch

A light switch is a simple device that controls the flow of electricity to a light fixture. It typically consists of a toggle or a push-button that opens or closes an electrical circuit. There are several types of light switches, including single-pole, three-way, and four-way switches, each serving different purposes in various electrical setups.

Types of Light Switches

Before diving into the Light Switching Diagram, it’s important to understand the different types of light switches:

Single-Pole Switch: The most basic type, controlling a light from one location.
Three-Way Switch: Allows control of a light from two different locations.
Four-Way Switch: Used in conjunction with three-way switches to control a light from three or more locations.
Dimmer Switch: Allows for adjustable light levels.
Smart Switch: Offers advanced features like remote control and integration with smart home systems.

Creating a Light Switching Diagram

A Light Switching Diagram is a visual representation of the wiring and connections in a lighting circuit. It helps in planning and executing the wiring process efficiently. Here’s a step-by-step guide to creating a basic Light Switching Diagram for a single-pole switch:

Step 1: Gather Materials

Before you start, ensure you have the following materials:

Light switch
Wire strippers
Screwdriver
Electrical tape
Wire nuts
Light fixture
Electrical box

Step 2: Identify the Components

Identify the components in your circuit, including the power source, light switch, and light fixture. Label these components clearly on your diagram.

Step 3: Draw the Power Source

Start by drawing the power source, which is typically the electrical box where the power supply enters. Label this as the “Power Source.”

Step 4: Draw the Light Switch

Next, draw the light switch and label it. Connect the power source to the light switch using a line, representing the hot wire (usually black).

Step 5: Draw the Light Fixture

Draw the light fixture and label it. Connect the light switch to the light fixture using another line, representing the switched hot wire.

Step 6: Add Ground and Neutral Wires

Include the ground wire (usually green or bare) and the neutral wire (usually white) in your diagram. Connect the ground wire from the power source to the light fixture and the switch. The neutral wire should run directly from the power source to the light fixture.

Step 7: Label the Connections

Label all the connections clearly. Use standard symbols for wires and components to ensure clarity. For example, use a straight line for the hot wire, a dashed line for the neutral wire, and a zigzag line for the ground wire.

Interpreting a Light Switching Diagram

Interpreting a Light Switching Diagram involves understanding the symbols and connections. Here’s a breakdown of the key elements:

Symbols and Connections

Common symbols in a Light Switching Diagram include:

Circle: Represents a junction box or electrical box.
Square: Represents a switch or outlet.
Line: Represents a wire.
Arrow: Indicates the direction of current flow.

Example Diagram

Here is a simple example of a Light Switching Diagram for a single-pole switch:

Component	Symbol	Connection
Power Source	Circle	Hot wire to switch
Light Switch	Square	Switched hot wire to light fixture
Light Fixture	Circle	Neutral wire from power source
Ground Wire	Zigzag Line	From power source to switch and fixture

🔧 Note: Always ensure that the power is turned off before working on any electrical wiring to avoid the risk of electric shock.

Advanced Light Switching Diagrams

For more complex setups, such as three-way and four-way switches, the Light Switching Diagram becomes more intricate. Here’s a brief overview of these advanced setups:

Three-Way Switch Diagram

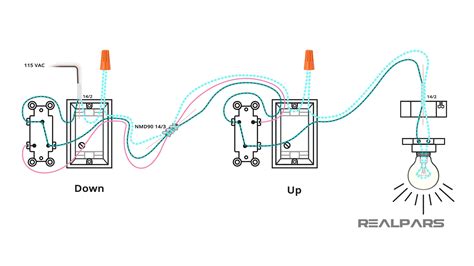

A three-way switch allows control of a light from two different locations. The diagram will include two switches and a light fixture. The wiring involves a traveler wire that connects the two switches, allowing them to work in tandem.

Four-Way Switch Diagram

A four-way switch is used in conjunction with three-way switches to control a light from three or more locations. The diagram will include multiple switches and a light fixture, with traveler wires connecting the switches.

Safety Precautions

Working with electrical systems can be dangerous if not done correctly. Here are some safety precautions to keep in mind:

Always turn off the power at the circuit breaker before starting any work.
Use insulated tools to avoid accidental contact with live wires.
Ensure all connections are secure and properly insulated.
Follow local electrical codes and regulations.

⚠️ Note: If you are unsure about any aspect of electrical wiring, consult a licensed electrician to avoid potential hazards.

In summary, a Light Switching Diagram is an invaluable tool for anyone working with electrical systems. It provides a clear visual representation of the wiring and connections, making it easier to plan and execute electrical projects. Whether you are a DIY enthusiast or a professional electrician, understanding how to create and interpret a Light Switching Diagram is essential for ensuring safe and efficient electrical installations. By following the steps outlined in this guide, you can confidently tackle any lighting circuit project, from simple single-pole switches to more complex three-way and four-way setups.
