Understanding the Lewis Structure of SiH4 is fundamental for anyone studying chemistry, particularly those delving into the world of molecular structures and bonding. Silicon tetrahydride, commonly known as silane, is a chemical compound with the formula SiH4. This compound is analogous to methane (CH4) but with silicon replacing carbon. The Lewis Structure of SiH4 provides insights into its molecular geometry, bonding, and reactivity.
What is a Lewis Structure?
A Lewis Structure, also known as a Lewis dot diagram, is a diagrammatic representation of the valence electrons in a molecule. It helps visualize the bonding between atoms and the lone pairs of electrons. The structure is named after Gilbert N. Lewis, who introduced it in 1916. Lewis Structures are crucial for understanding the chemical properties and behavior of molecules.
Lewis Structure of SiH4
The Lewis Structure of SiH4 involves a central silicon atom surrounded by four hydrogen atoms. Silicon has four valence electrons, and each hydrogen atom has one valence electron. To form the Lewis Structure of SiH4, we need to distribute these electrons to achieve a stable configuration.
Steps to Draw the Lewis Structure of SiH4
Drawing the Lewis Structure of SiH4 involves several steps. Here’s a detailed guide:
- Identify the central atom: In SiH4, silicon (Si) is the central atom.
- Count the total number of valence electrons: Silicon has 4 valence electrons, and each hydrogen has 1 valence electron. Therefore, the total number of valence electrons is 4 (from Si) + 4 × 1 (from H) = 8.
- Place the valence electrons around the central atom: Start by placing one pair of electrons between the silicon atom and each hydrogen atom to form single bonds.
- Distribute the remaining electrons: After forming the single bonds, there are no remaining electrons to distribute as lone pairs.

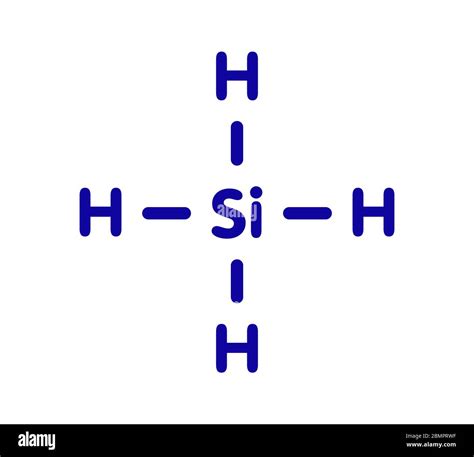

Here is the Lewis Structure of SiH4:
Molecular Geometry of SiH4
The molecular geometry of SiH4 is tetrahedral. This means that the four hydrogen atoms are arranged at the vertices of a tetrahedron, with the silicon atom at the center. The bond angles in a tetrahedral geometry are approximately 109.5 degrees. This geometry is consistent with the Valence Shell Electron Pair Repulsion (VSEPR) theory, which predicts that electron pairs around a central atom will repel each other and arrange themselves in a way that minimizes repulsion.
Bonding in SiH4
The bonding in SiH4 involves single covalent bonds between the silicon atom and each hydrogen atom. Each bond consists of two shared electrons, one from the silicon atom and one from the hydrogen atom. This results in a stable octet configuration for the silicon atom and a duet configuration for each hydrogen atom.
Properties of SiH4
Silane (SiH4) has several notable properties:
- It is a colorless, flammable gas with a boiling point of -111.8°C and a melting point of -185°C.
- It is highly reactive and can ignite spontaneously in air.
- It is used in the semiconductor industry for the production of silicon-based materials.
- It is also used as a reducing agent in chemical reactions.
Applications of SiH4
SiH4 has various applications in different fields:
- Semiconductor Industry: SiH4 is used in the production of silicon wafers, which are essential for the manufacture of integrated circuits and solar cells.
- Chemical Industry: It is used as a reducing agent in various chemical reactions.
- Research: SiH4 is used in research to study the properties of silicon-based materials and their potential applications.
Safety Considerations
Handling SiH4 requires careful consideration due to its highly reactive nature. Some safety measures include:
- Use appropriate personal protective equipment (PPE), including gloves, safety glasses, and lab coats.
- Work in a well-ventilated area or under a fume hood to prevent the accumulation of SiH4 gas.
- Store SiH4 in a cool, dry place away from sources of ignition.
- Have a fire extinguisher and emergency response plan in place.
🛑 Note: Always follow safety protocols and guidelines when handling SiH4 to prevent accidents and ensure safety.
Comparing SiH4 and CH4
SiH4 and CH4 (methane) are structurally similar but have different properties due to the differences in their central atoms. Here is a comparison:
| Property | SiH4 | CH4 |
|---|---|---|
| Central Atom | Silicon (Si) | Carbon (C) |
| Valence Electrons | 4 | 4 |
| Molecular Geometry | Tetrahedral | Tetrahedral |
| Bond Angles | 109.5 degrees | 109.5 degrees |
| Reactivity | Highly reactive | Relatively stable |
| Applications | Semiconductor industry, reducing agent | Fuel, chemical feedstock |
While both compounds have a tetrahedral geometry and similar bond angles, SiH4 is more reactive than CH4 due to the differences in the electronegativity and size of the central atoms.
Understanding the Lewis Structure of SiH4 is essential for grasping its molecular properties and applications. By following the steps to draw the Lewis Structure and understanding the bonding and geometry, one can gain insights into the behavior of this important compound. The comparison with CH4 further highlights the unique properties of SiH4 and its significance in various industries.
