Understanding the Lewis structure of BF3 is fundamental for anyone studying chemistry, particularly those delving into molecular geometry and bonding theories. The Lewis structure, also known as the electron dot structure, provides a visual representation of the valence electrons in a molecule. This structure helps in predicting the shape, polarity, and reactivity of molecules. In this post, we will explore the Lewis structure of BF3, its significance, and how to draw it step-by-step.
What is BF3?
BF3, or boron trifluoride, is a chemical compound consisting of one boron atom and three fluorine atoms. It is a colorless, toxic gas with a pungent odor. BF3 is widely used in various industrial applications, including as a catalyst in organic synthesis and in the production of certain polymers.
Understanding the Lewis Structure
The Lewis structure of a molecule shows the arrangement of valence electrons around the atoms. For BF3, we need to consider the valence electrons of both boron (B) and fluorine (F). Boron has three valence electrons, while each fluorine atom has seven valence electrons.
Steps to Draw the Lewis Structure of BF3
Drawing the Lewis structure of BF3 involves several steps. Let’s go through them one by one:
Step 1: Determine the Total Number of Valence Electrons
First, calculate the total number of valence electrons in the molecule. Boron has 3 valence electrons, and each fluorine atom has 7 valence electrons. Since there are three fluorine atoms, the total number of valence electrons is:
3 (from boron) + 3 * 7 (from fluorine) = 3 + 21 = 24 valence electrons.
Step 2: Identify the Central Atom
In BF3, boron (B) is the central atom because it is the least electronegative element in the molecule. Fluorine atoms will surround the boron atom.
Step 3: Connect the Atoms with Single Bonds
Draw single bonds between the central boron atom and each of the three fluorine atoms. Each single bond represents two shared electrons.
B—F
|
F—B—F
Step 4: Distribute the Remaining Electrons
After forming the single bonds, we have used 6 electrons (3 bonds * 2 electrons per bond). This leaves us with 24 - 6 = 18 valence electrons to distribute.
Each fluorine atom needs 6 more electrons to complete its octet (8 valence electrons). Since we have 3 fluorine atoms, we need 3 * 6 = 18 electrons, which matches the remaining electrons.
Distribute these 18 electrons as lone pairs around each fluorine atom.
Step 5: Check for Octet Rule Compliance
Ensure that each atom, except hydrogen, has an octet of electrons. In BF3, each fluorine atom has 8 electrons (6 lone pairs + 2 shared in the bond), and the boron atom has 6 electrons (3 shared in the bonds).
Step 6: Draw the Final Lewis Structure

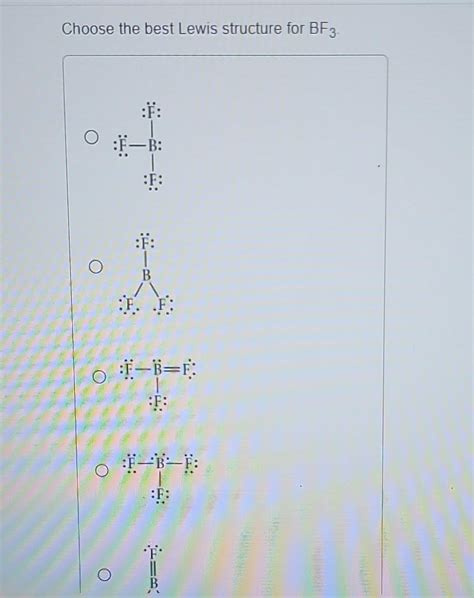

The final Lewis structure of BF3 should look like this:
Significance of the Lewis Structure of BF3
The Lewis structure of BF3 provides valuable insights into its molecular properties:
- Molecular Geometry: The Lewis structure helps determine the molecular geometry of BF3. According to the Valence Shell Electron Pair Repulsion (VSEPR) theory, BF3 has a trigonal planar geometry with bond angles of 120 degrees.
- Polarity: BF3 is a nonpolar molecule because the dipole moments of the individual B-F bonds cancel each other out due to the symmetrical trigonal planar structure.
- Reactivity: The Lewis structure shows that boron in BF3 has an incomplete octet, making it electron-deficient. This deficiency makes BF3 a strong Lewis acid, capable of accepting electron pairs from Lewis bases.
Electron Deficiency in BF3
One of the unique features of BF3 is its electron deficiency. Boron has only six valence electrons in its outer shell, which is less than the eight electrons required for a stable octet. This electron deficiency makes BF3 highly reactive and capable of forming adducts with Lewis bases.
Formation of Adducts
BF3 can form adducts with Lewis bases, such as ammonia (NH3) or water (H2O), by accepting a pair of electrons from the base. This process is known as coordination or complex formation. The adduct formed between BF3 and NH3 is known as BF3·NH3, where the nitrogen atom in ammonia donates a pair of electrons to the boron atom in BF3.
Applications of BF3
BF3 has numerous applications in various industries due to its unique properties:
- Catalyst in Organic Synthesis: BF3 is widely used as a catalyst in organic synthesis reactions, such as Friedel-Crafts alkylation and acylation.
- Production of Polymers: BF3 is used in the production of certain polymers, such as polyolefins, by acting as a catalyst in polymerization reactions.
- Refining of Petroleum: BF3 is used in the refining of petroleum to produce high-octane gasoline.
Safety Considerations
Handling BF3 requires careful attention to safety due to its toxic and corrosive nature. Some key safety considerations include:
- Ventilation: Work with BF3 in a well-ventilated area or under a fume hood to prevent inhalation of the toxic gas.
- Personal Protective Equipment (PPE): Use appropriate PPE, including gloves, safety glasses, and lab coats, to protect against skin and eye contact.
- Storage: Store BF3 in a cool, dry place away from incompatible substances, such as strong oxidizing agents.
🔍 Note: Always refer to the Material Safety Data Sheet (MSDS) for specific handling and safety instructions when working with BF3.
In summary, the Lewis structure of BF3 is a crucial tool for understanding its molecular properties and reactivity. By following the steps to draw the Lewis structure, we can gain insights into the molecular geometry, polarity, and electron deficiency of BF3. This knowledge is essential for various applications in chemistry and industry. The unique properties of BF3, such as its ability to form adducts and act as a Lewis acid, make it a valuable compound in organic synthesis, polymer production, and petroleum refining. However, handling BF3 requires careful attention to safety due to its toxic and corrosive nature. Understanding the Lewis structure of BF3 and its implications is fundamental for anyone studying chemistry or working with this compound in industrial settings.
