Lewis Dot Structure Practice

Mastering the art of drawing Lewis Dot Structures is a fundamental skill in chemistry, essential for understanding molecular geometry, bonding, and reactivity. This guide will walk you through the process of Lewis Dot Structure Practice, providing step-by-step instructions and tips to help you become proficient in this crucial area of chemistry.

Table of Contents

Understanding Lewis Dot Structures

Lewis Dot Structures, also known as Lewis Structures or electron dot structures, are diagrams that represent the valence electrons of atoms within a molecule. These structures help visualize the bonding between atoms and the lone pairs of electrons. The key components of a Lewis Dot Structure include:

Valence Electrons: The electrons in the outermost shell of an atom.
Bonds: Shared pairs of electrons between atoms.
Lone Pairs: Pairs of electrons that are not involved in bonding.

Steps to Draw Lewis Dot Structures

Drawing Lewis Dot Structures involves several systematic steps. Here’s a detailed guide to help you through the process:

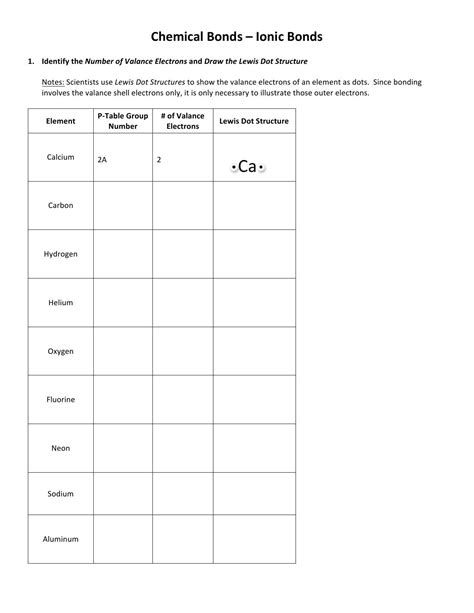

Step 1: Determine the Total Number of Valence Electrons

First, identify the number of valence electrons for each atom in the molecule. The number of valence electrons can be determined by the atom’s group number in the periodic table. For example:

Group 1 (alkali metals) have 1 valence electron.
Group 2 (alkaline earth metals) have 2 valence electrons.
Group 13 (boron group) have 3 valence electrons.
Group 14 (carbon group) have 4 valence electrons.
Group 15 (nitrogen group) have 5 valence electrons.
Group 16 (oxygen group) have 6 valence electrons.
Group 17 (halogens) have 7 valence electrons.
Group 18 (noble gases) have 8 valence electrons.

Add up the valence electrons for all the atoms in the molecule. If the molecule is an ion, adjust the total number of electrons by adding electrons for negative ions or subtracting electrons for positive ions.

Step 2: Choose the Central Atom

The central atom is usually the least electronegative atom in the molecule. For example, in a molecule like CO2, carbon © is the central atom because it is less electronegative than oxygen (O).

Step 3: Connect the Atoms with Single Bonds

Draw single bonds between the central atom and the surrounding atoms. Each single bond represents 2 shared electrons.

Step 4: Distribute the Remaining Electrons

Distribute the remaining valence electrons around the atoms to complete their octets (8 electrons) or duets (2 electrons for hydrogen). Place electrons as lone pairs on the surrounding atoms first, then on the central atom.

Step 5: Check for Octet Rule Compliance

Ensure that each atom (except hydrogen) has 8 electrons in its valence shell. If any atom does not have an octet, consider forming multiple bonds (double or triple bonds) to satisfy the octet rule.

Step 6: Minimize Formal Charges

Calculate the formal charge on each atom to ensure the structure is stable. The formal charge is calculated as:

Formal Charge = (Number of valence electrons in free atom) - (Number of lone pair electrons + ½ Number of bonding electrons)

Adjust the structure to minimize formal charges, preferably aiming for zero formal charges on all atoms.

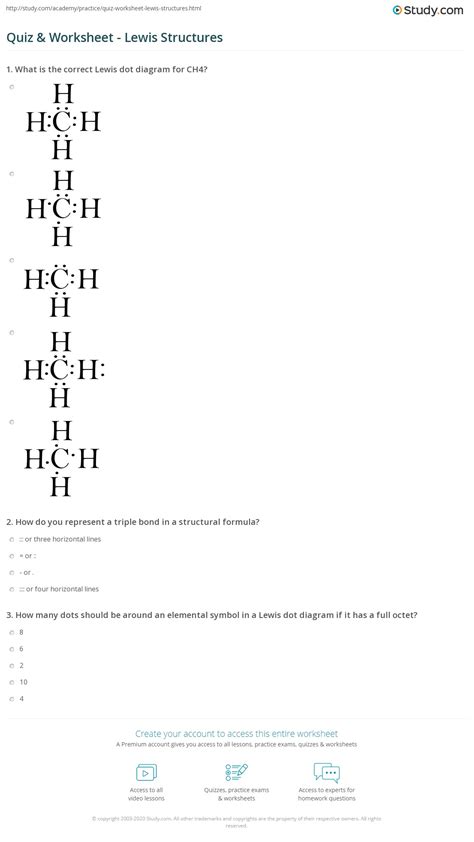

Lewis Dot Structure Practice Examples

Let’s go through a few examples to solidify your understanding of Lewis Dot Structure Practice.

Example 1: Water (H2O)

1. Total Valence Electrons: 2 (from H) + 6 (from O) = 8.

2. Central Atom: Oxygen (O).

3. Single Bonds: Connect the two hydrogen atoms to the oxygen atom with single bonds.

4. Remaining Electrons: Distribute the remaining 4 electrons as 2 lone pairs on the oxygen atom.

5. Octet Rule: Oxygen has 8 electrons (4 from bonds + 4 from lone pairs).

6. Formal Charges: All atoms have zero formal charges.

Example 2: Carbon Dioxide (CO2)

1. Total Valence Electrons: 4 (from C) + 6 (from each O) = 16.

2. Central Atom: Carbon ©.

3. Single Bonds: Connect the two oxygen atoms to the carbon atom with single bonds.

4. Remaining Electrons: Distribute the remaining 12 electrons as 6 lone pairs on the oxygen atoms.

5. Octet Rule: Carbon has 4 electrons (2 from each bond). To satisfy the octet rule, form double bonds between carbon and each oxygen atom.

6. Formal Charges: All atoms have zero formal charges.

Example 3: Ammonia (NH3)

1. Total Valence Electrons: 5 (from N) + 1 (from each H) = 8.

2. Central Atom: Nitrogen (N).

3. Single Bonds: Connect the three hydrogen atoms to the nitrogen atom with single bonds.

4. Remaining Electrons: Distribute the remaining 2 electrons as a lone pair on the nitrogen atom.

5. Octet Rule: Nitrogen has 8 electrons (3 from bonds + 2 from lone pairs).

6. Formal Charges: All atoms have zero formal charges.

💡 Note: For molecules with resonance structures, draw all possible resonance structures and consider the contribution of each structure to the overall stability of the molecule.

Common Mistakes in Lewis Dot Structure Practice

While practicing Lewis Dot Structures, it’s common to encounter a few pitfalls. Here are some mistakes to avoid:

Incorrect Valence Electron Count: Double-check the number of valence electrons for each atom.
Improper Central Atom Selection: Ensure the central atom is the least electronegative.
Ignoring Formal Charges: Always calculate formal charges to ensure the structure is stable.
Overlooking Multiple Bonds: Remember to form multiple bonds if necessary to satisfy the octet rule.

Advanced Lewis Dot Structure Practice

Once you are comfortable with the basics, you can move on to more complex molecules and ions. Here are some tips for advanced Lewis Dot Structure Practice:

Polyatomic Ions: Treat polyatomic ions as a single unit and adjust the total number of electrons accordingly.
Resonance Structures: Draw all possible resonance structures and determine the most stable one.
Expanded Octets: For atoms in the third period and beyond, consider expanded octets (more than 8 electrons) if necessary.

For example, consider the sulfate ion (SO4^2-). The total number of valence electrons is 24 (6 from S + 6 from each O + 2 from the negative charge). The central atom is sulfur (S). After forming single bonds and distributing the remaining electrons, you will need to form double bonds to satisfy the octet rule for oxygen atoms. The resulting structure will have resonance forms.

Conclusion

Lewis Dot Structure Practice is a crucial skill for understanding molecular bonding and reactivity. By following the systematic steps outlined in this guide, you can master the art of drawing Lewis Dot Structures. Remember to practice regularly with various molecules and ions to build your confidence and proficiency. With dedication and practice, you will become adept at visualizing and interpreting molecular structures, enhancing your overall understanding of chemistry.
